OIL PAN — Installation (Cont'd)

EM-15prose procedure
Continued from EM-14

Installation (Cont'd)

Oil pan installation (cont'd)

  1. 4
    Install oil pan. Tighten bolts in sequence as shown.
    Attaching should be done within 5 minutes after applying liquid gasket.

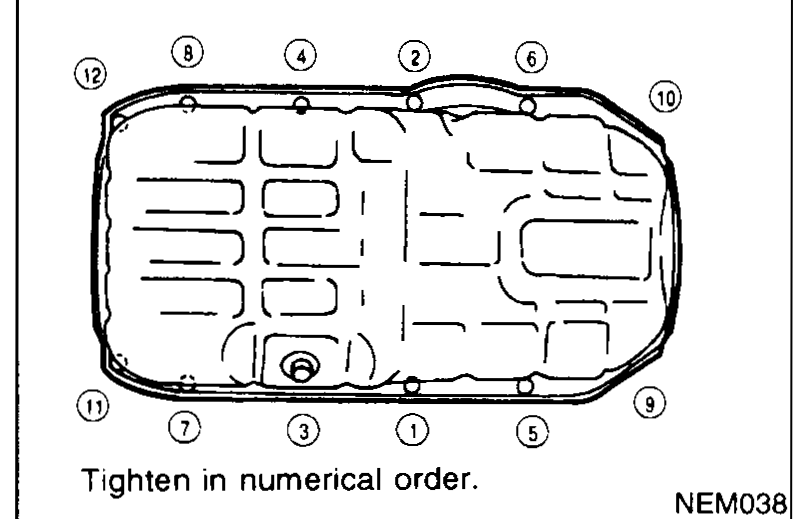

    Oil pan bolt-tightening sequence diagram with numbered positions ①–⑫ around the pan perimeter (drain plug shown centre-bottom). Caption: 'Tighten in numerical order.'
    NEM038
  2. 5
    Always fit a new washer to the drain plug. Fit the washer as shown in the illustration.
    Wait at least 30 minutes before refilling engine oil.

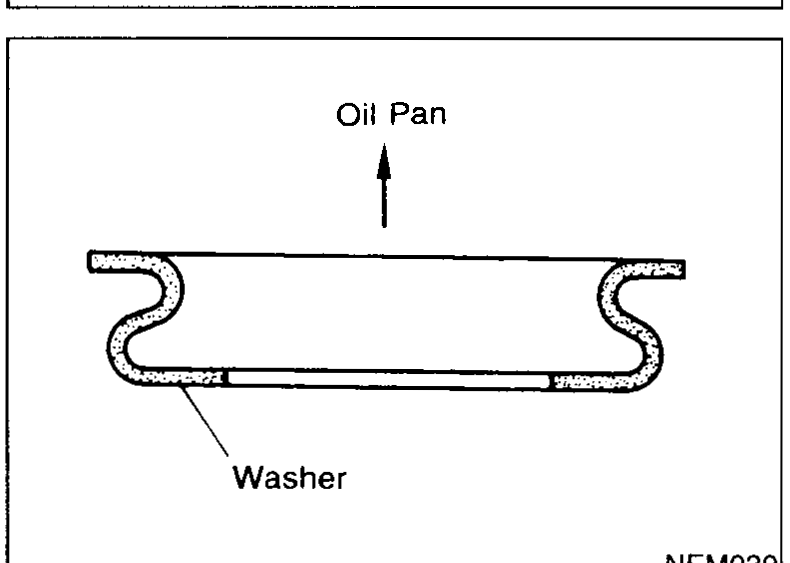

    Cross-section detail of the oil pan drain plug area showing the washer seated below the pan flange. Arrow labelled 'Oil Pan' indicates orientation; label 'Washer' identifies the seal washer.
    NEM039
Oil pan boltTighten in numerical order
6.3 - 8.3N·m
