CYLINDER HEAD — Installation (Cont'd)
EM-7018prose procedureInstallation (Cont'd)

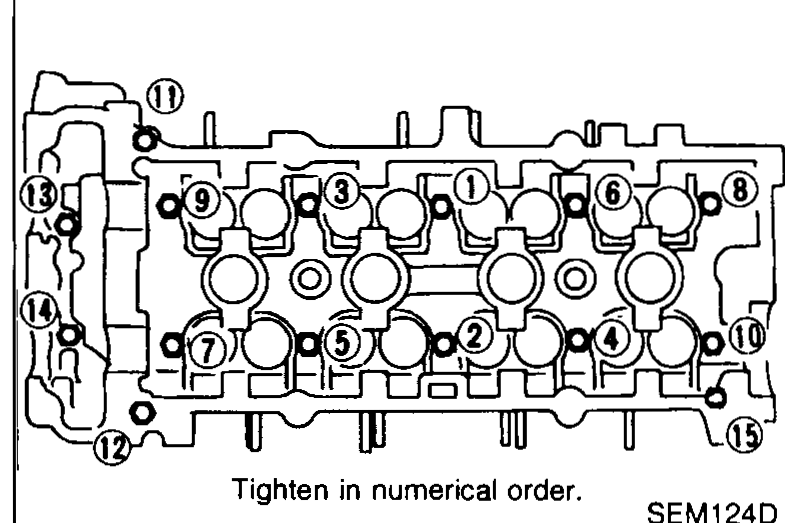

Tightening procedure (bolts 1-10)
- 1(a) Tighten bolts to 39 N·m (4.0 kg-m, 29 ft-lb).
SEM124D - 2(b) Tighten bolts to 78 N·m (8.0 kg-m, 58 ft-lb).
- 3(c) Loosen bolts completely.
- 4(d) Tighten bolts to 35 N·m (3.6 kg-m, 26 ft-lb).
- 5(e) Turn bolts 60 degrees clockwise.
- 6(f) Tighten bolts 11 to 15 to 6.3 to 8.3 N·m (0.64 to 0.85 kg-m, 4.6 to 6.1 ft-lb).
Tightening torque N·m (kg-m, ft-lb)
Bolts (1) - (10)
(a)39 (4.0, 29)
(b)78 (8.0, 58)
(c)0 (0,0)
(d)35 (3.6, 26)
(e)60 degrees
Bolts (11) - (15)
(a)—
(b)—
(c)—
(d)—
(e)6.3 - 8.3 (0;64 - 0.85, 4.6 - 6.1)
Installation (continued)
- 6Install idler sprocket bolt.
