ENGINE REMOVAL — Installation

EM-42prose procedure
Continued from EM-41

Installation

Engine installation

  1. 1
    Install top engine mounting brackets and fixing bolts.
    Ensure that insulators are positioned on brackets correctly.

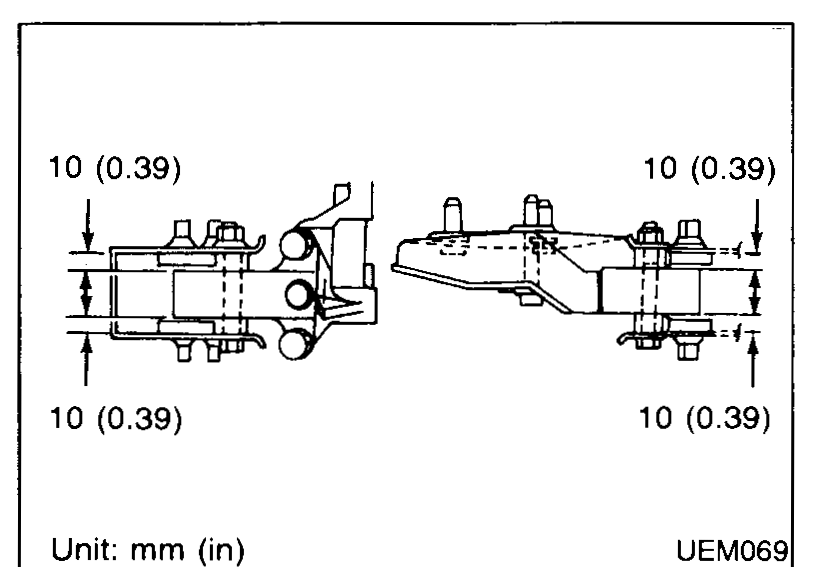

    Two-bracket side-by-side view of the top engine mounting brackets with overall dimensions called out as 10 (0.39) mm (in) in four positions; "Unit: mm (in)" legend.
    UEM069
  2. 2
    Carefully move engine onto engine mounting insulators.
  3. 3
    Fit centermember as shown.

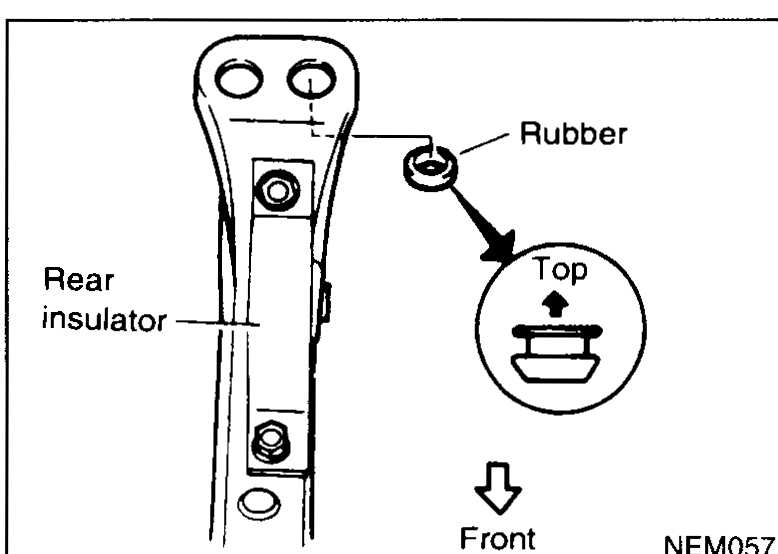

    Rear engine insulator with rubber bush enlarged in a callout: rubber is shown installed pointing "Top" upward and arrow pointing "Front" indicating its orientation in the vehicle. Labels: Rear insulator, Rubber, Top, Front.
    NEM057
  4. 4
    For M/T models, lower front insulator should be adjusted as shown.
    Side view of M/T lower front insulator with the two adjusting bolts; dimension 54 - 56 mm (2.13 - 2.20 in) between two reference points on the insulator-bracket interface. "Unit: mm (in)" legend.
    UEM071
  5. 5
    Other installation procedures are in the reverse order of removal.
Top engine mounting bracket bolt projectionFour positions, top engine mountings
10 (0.39)mm (in)
M/T lower front insulator setting dimensionSide-view reference dimension on insulator
54 - 56 (2.13 - 2.20)mm (in)
