OIL SEAL REPLACEMENT — Front Oil Seal (Cont'd) / Rear Oil Seal

EM-27prose procedure
Continued from EM-26

Front oil seal (cont'd)

  1. 3
    Apply engine oil to new oil seal and install using suitable tool.
    Support cover when installing seal.

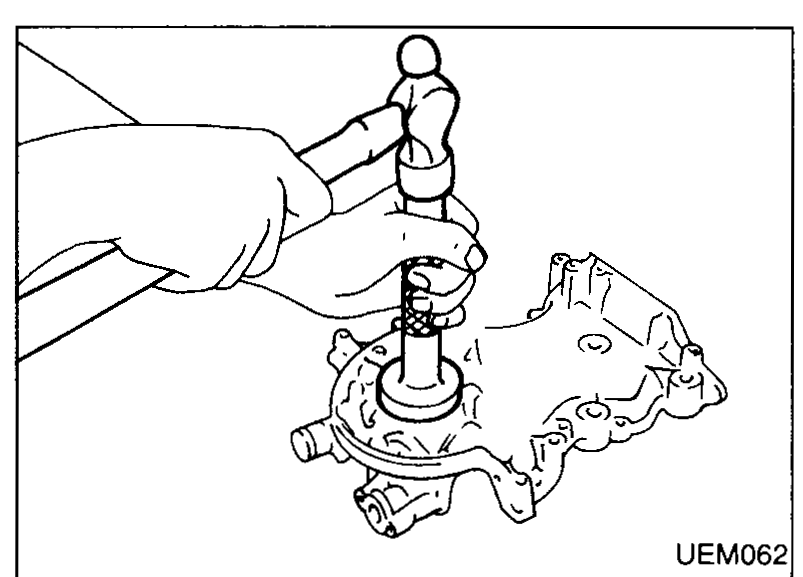

    Front cover supported on bench while a drift is used to install the new front crankshaft oil seal.
    UEM062

REAR OIL SEAL

Rear oil seal replacement

  1. 1
    Remove flywheel.
  2. 2
    Remove rear oil seal retainer.
  3. 3
    Remove traces of liquid gasket using scraper.
    Take care not to damage retainer.

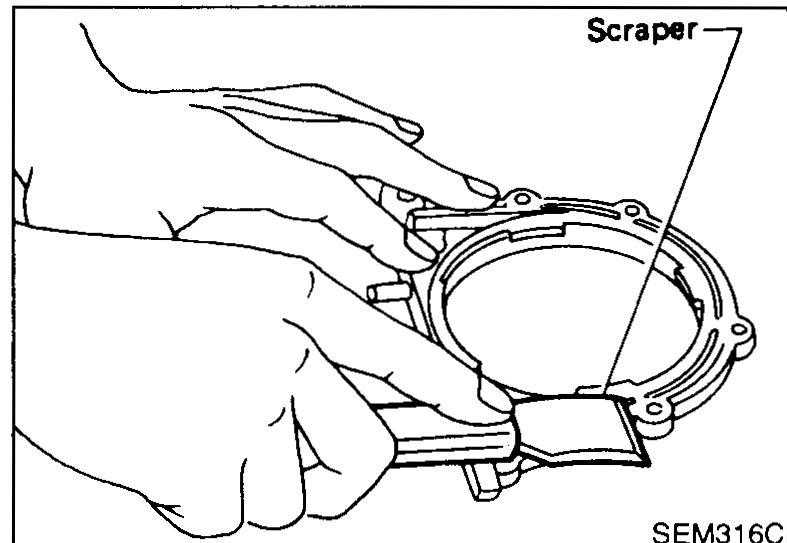

    Hand using a scraper to remove old liquid gasket from the rear oil seal retainer mating face on the rear of the cylinder block. Label: Scraper.
    SEM316C
  4. 4
    Remove seal from rear oil seal retainer.
    Pry tool removing the rear crankshaft oil seal from the rear oil seal retainer.
    SEM317C
  5. 5
    Apply engine oil to new oil seal and install it using a suitable tool.

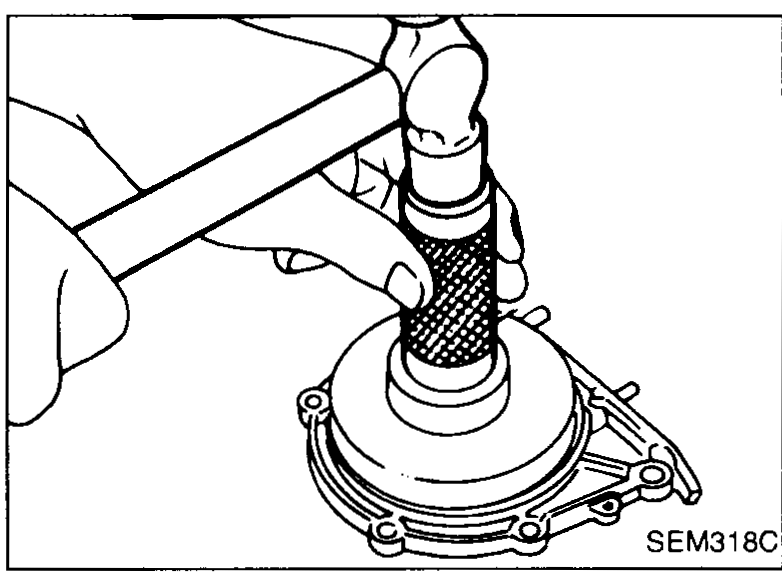

    Drift installing the new rear oil seal into the retainer.
    SEM318C
  6. 6
    Apply liquid gasket to rear oil seal retainer.

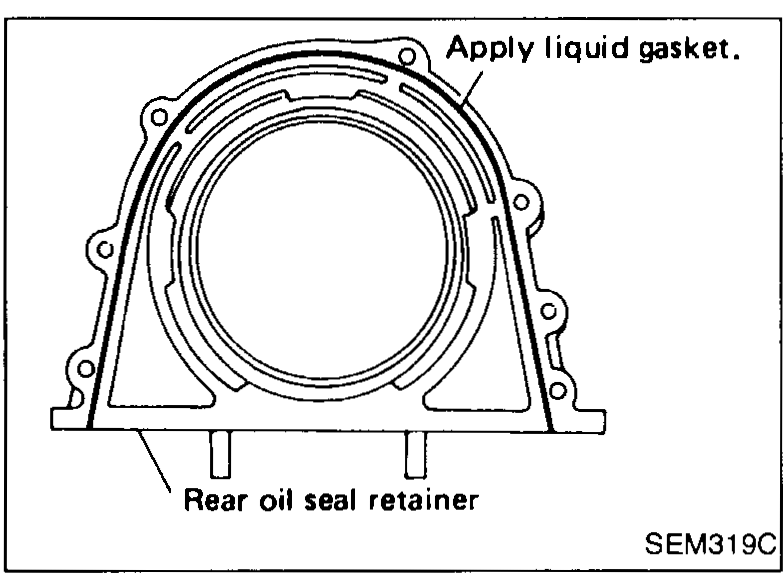

    Rear oil seal retainer with continuous bead of liquid gasket applied around perimeter. Labels: 'Apply liquid gasket.', 'Rear oil seal retainer'.
    SEM319C
