TIMING BELT — Removal (Supplement-V)

EM-5012prose procedure
Continued from EM-5011

Removal

Timing belt — Removal

  1. 1
    Remove engine under cover.
  2. 2
    Remove front RH wheel and splash guard.
  3. 3
    Remove drive belt.

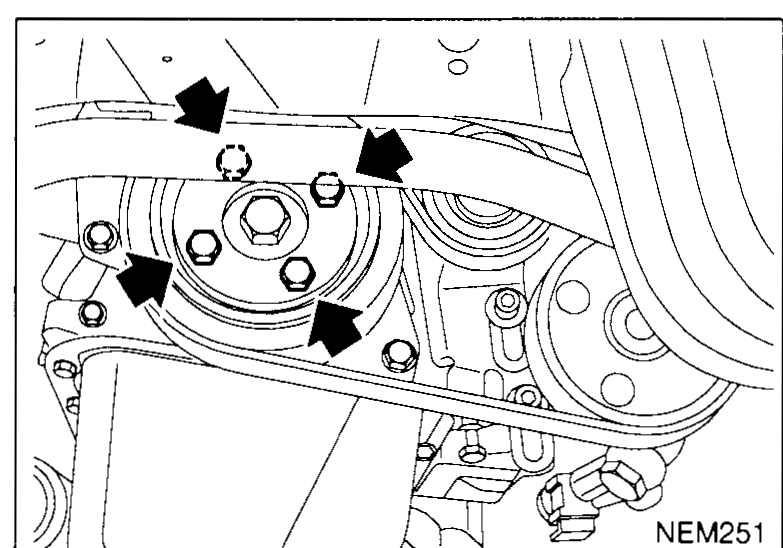

  4. 4
    Remove crankshaft pulley bolts and pulley.
    Engine front shown with arrows pointing at the four crankshaft-pulley bolts to be removed (step 4).
    NEM251

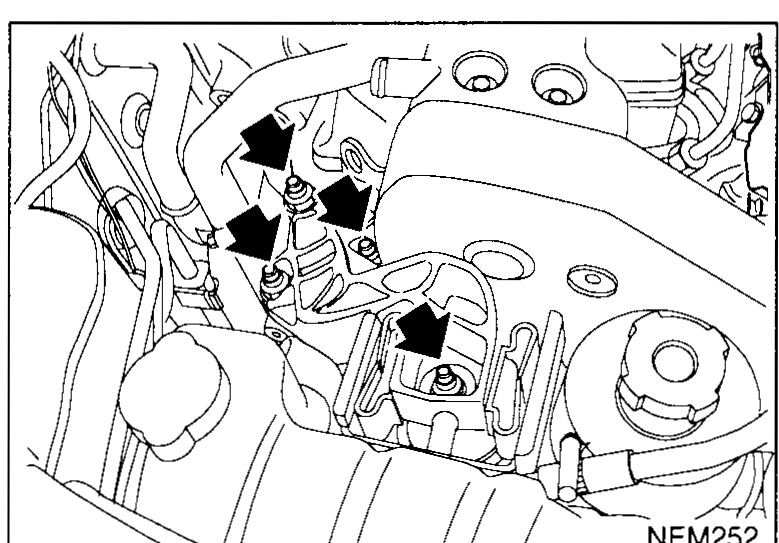

  5. 5
    Support engine with a suitable jack.
    RH engine bay with arrows pointing at the engine mounting bracket fixings — illustrates steps 5–8 (jack support, remove front mount and RH insulator bracket).
    NEM252
  6. 6
    Remove engine front mounting bracket.
  7. 7
    Temporarily remove coolant reservoir.
  8. 8
    Remove RH insulator bracket.

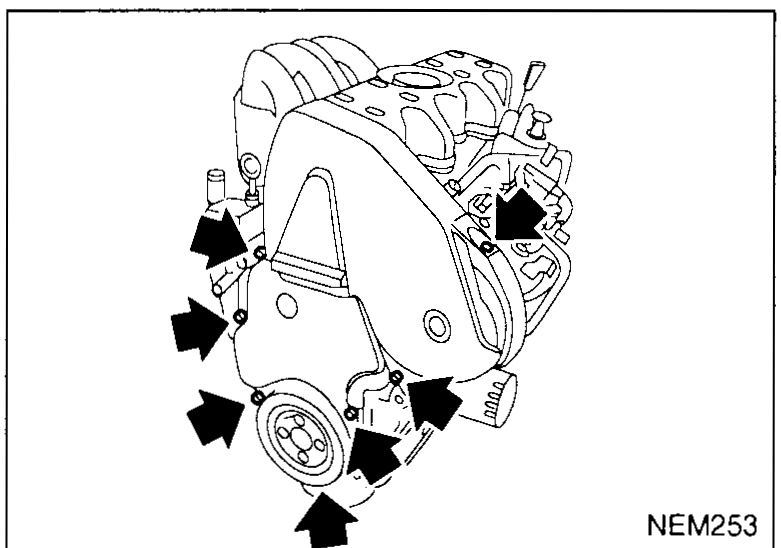

  9. 9
    Remove timing belt covers.
    Timing belt cover area with arrows pointing at the cover-fixing bolts — illustrates step 9 (remove timing belt covers).
    NEM253

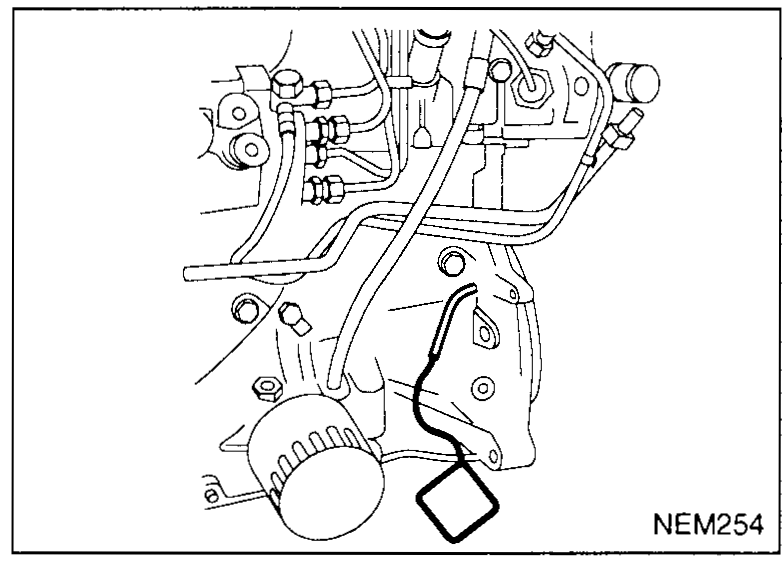

  10. 10
    Turn crankshaft to TDC and lock crankshaft using SST KV109B0112.
    View of the flywheel area through the access hole, showing the KV109B0112 flywheel locking pin engaged — illustrates step 10 (lock crankshaft at TDC).
    NEM254

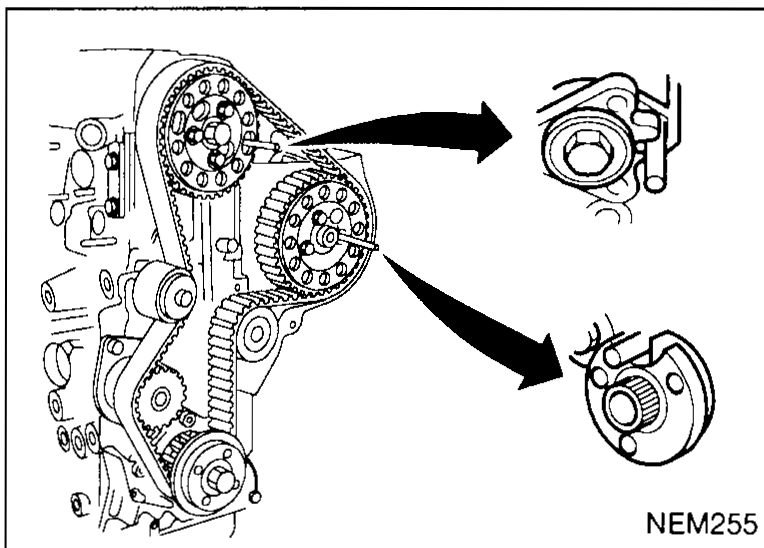

  11. 11
    Lock camshaft and injection pump using SST KV109B0111 and KV109B0110.
    Front-of-engine view with the timing belt visible; two arrows point at the camshaft pulley and the injection-pump pulley with their locking pins (KV109B0111 camshaft pin and KV109B0110 injection-pump pin) installed — illustrates step 11.
    NEM255
  12. 12
    Loosen tensioner pulley nut and remove timing belt.
