CYLINDER BLOCK — Assembly (Cont'd) / Rear Oil Seal Housing / Rear Plate / Flywheel-Drive Plate / Engine Front Mount Bracket
EM-56prose procedureAssembly (Cont'd)
Cylinder block assembly (continued)

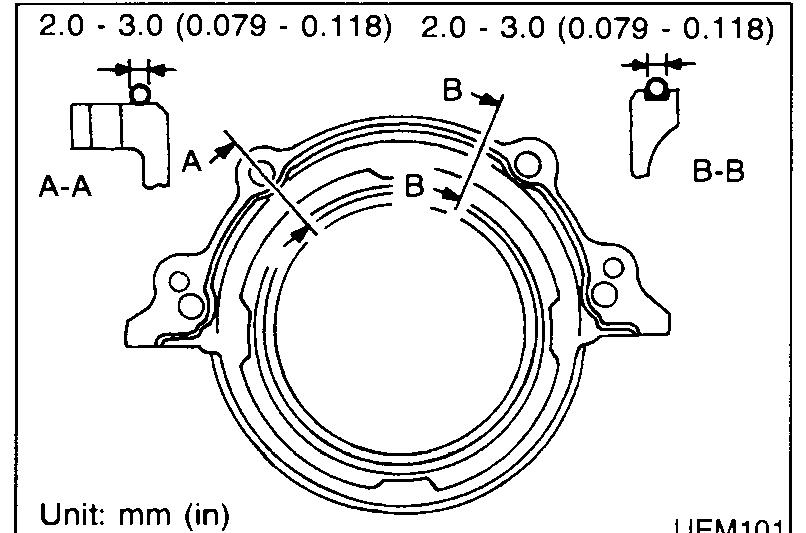

- 7When oil seal housing is installed, make sure new oil seal is fitted. Remove liquid gasket from retainer, including grooves and cylinder block. Apply a 2-3 mm dia. bead of liquid gasket without gaps to oil seal housing as indicated. Assemble retainer within 5 minutes of applying liquid gasket. Tightening torque: 6.3 - 8.3 N·m (0.64 - 0.85 kg-m, 4.6 - 6.1 ft-lb). After assembly wait at least 30 minutes before starting engine.
UEM101 - 8Attach rear plate and flywheel (M/T), drive plate (CVT). For CVT rear plate, scrape off all traces of acrylic tape from cylinder block and clean mating surface. Remove backing paper from acrylic tape before fitting new rear plate. Tightening torque for flywheel and drive plate: 83 - 93 N·m (8.5 - 9.5 kg-m, 61 - 69 ft-lb).Oil bolt threads and flange prior to attaching.Tighten bolts diagonally.
UEM076 - 9Attach engine front mounting bracket. Tightening torque: 64 - 74 N·m (6.5 - 7.5 kg-m, 47 - 54 ft-lb).

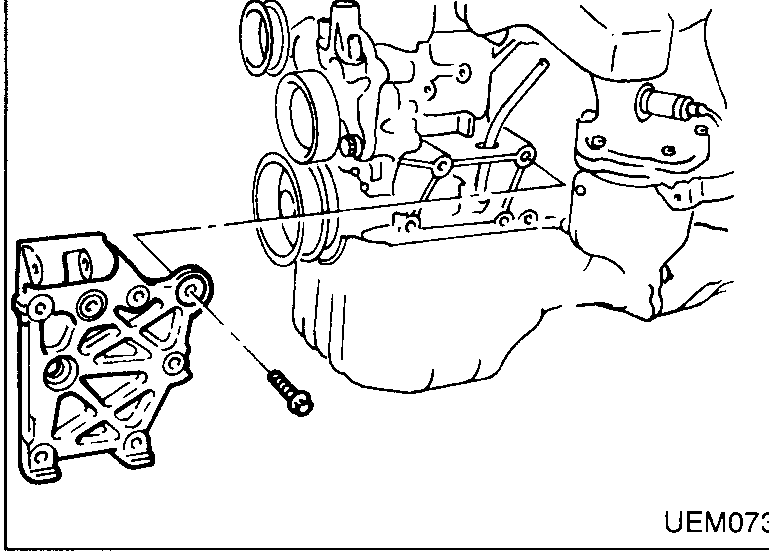

UEM073 - 10Attach air conditioning compressor bracket. Tightening torque: 37 - 50 N·m (3.8 - 5.1 kg-m, 27 - 37 ft-lb).
| Specification | Value |
|---|---|
| Liquid gasket bead diameter (oil seal housing)Apply without gaps; assemble within 5 minutes | 2 - 3mm |
| Liquid gasket bead cross-section (A-A and B-B)Section width | 2.0 - 3.0 (0.079 - 0.118)mm (in) |
| Oil seal housing retainer boltsTightening torque | 6.3 - 8.3N·m |
| Cure time before starting engineAfter liquid gasket application | ≥ 30minutes |
| Flywheel / drive plate boltsTightening torque; tighten diagonally | 83 - 93N·m |
| Engine front mounting bracket boltsTightening torque | 64 - 74N·m |
| A/C compressor bracket boltsTightening torque | 37 - 50N·m |
