CYLINDER HEAD — Installation (Cont'd)

EM-7020prose procedure
Continued from EM-7019

Installation (Cont'd)

Installation (continued)

  1. 10
    Assemble the tensioner by rotating and pushing the ratchet up the spiral until it stops. The tensioner is now pre-set. Chain lash will automatically set the tensioner when the engine is started. Install the tensioner.
    Check no problems occur when engine is rotated.
    Make sure that No. 1 piston is set at T.D.C. on its compression stroke.

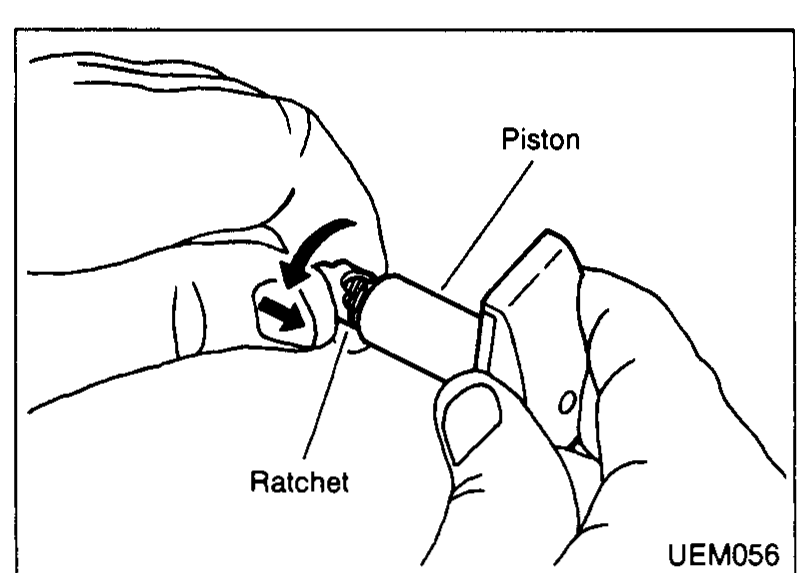

    Two hands holding the tensioner showing the piston being rotated and pushed up the spiral ratchet to pre-set it. Callouts: 'Piston' (top) and 'Ratchet' (bottom-left).
    UEM056
  2. 11
    Apply liquid gasket to thermostat housing.
    Ensure mating surfaces are clean and free from dirt, grease and traces of old liquid gasket.
    Bead width 2.0 - 3.0 mm (0.079 - 0.118 in).
    Thermostat housing shown with a liquid gasket bead applied around the perimeter of its mating surface. Callout: bead width 2.0 - 3.0 mm (0.079 - 0.118 in).
    NEM048
  3. 12
    Install thermostat housing.
  4. 13
    Apply liquid basket to cam sprocket cover as illustrated. Then install cam sprocket cover.
    Bead width 2.0 - 3.0 mm (0.079 - 0.118 in).

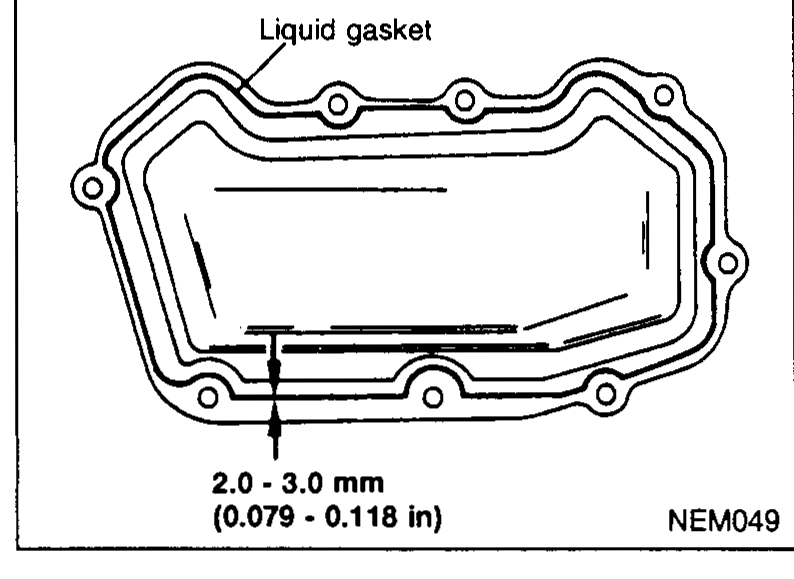

    Cam sprocket cover with liquid gasket bead applied around its mating surface. Callouts: 'Liquid gasket' and bead width 2.0 - 3.0 mm (0.079 - 0.118 in).
    NEM049
  5. 14
    Clean the rocker cover, ensure it is free from grease.
    Fit the gasket & cover within 5 minutes of applying the liquid gasket, as follows:
