CYLINDER BLOCK — Disassembly (Cont'd) — Piston and Crankshaft Steps 4-7

EM-45prose procedure
Continued from EM-44

Disassembly (Cont'd)

Piston and crankshaft disassembly (continued)

  1. 4
    Remove clutch and flywheel. Use Tool KV10105610 (flywheel ring-gear holder) to lock the flywheel while loosening bolts.

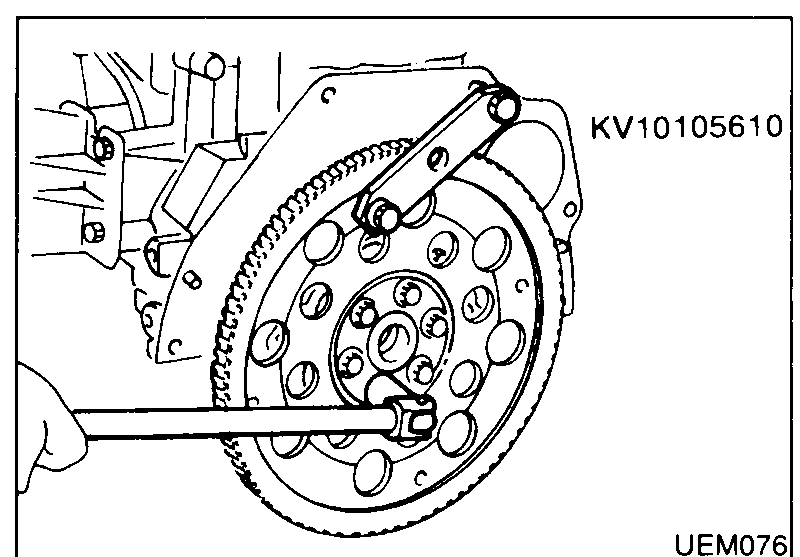

    Service tool KV10105610 (flywheel/ring-gear holder) engaged on the ring gear teeth to keep the flywheel from turning while loosening flywheel bolts.
    UEM076
  2. 5
    Remove rear oil seal housing. Oil seal must be replaced.
    Oil seal must be replaced when housing is removed.

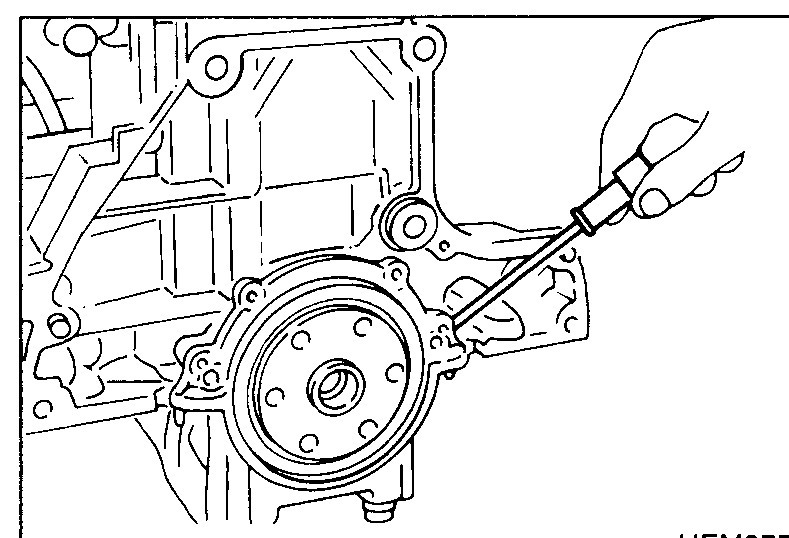

    Rear-of-block view showing rear oil seal housing being detached with a screwdriver/pry bar to start removal. Hand pries the housing away from the block.
    UEM077
  3. 6
    Remove connecting rod bearing cap nuts. Remove pistons and connecting rods as assemblies.
    Cylinder block in inverted/horizontal position on the stand showing connecting-rod big-end caps. Hand using a wrench to remove the connecting rod bearing cap nuts.
    UEM079
  4. 7
    Remove piston rings.

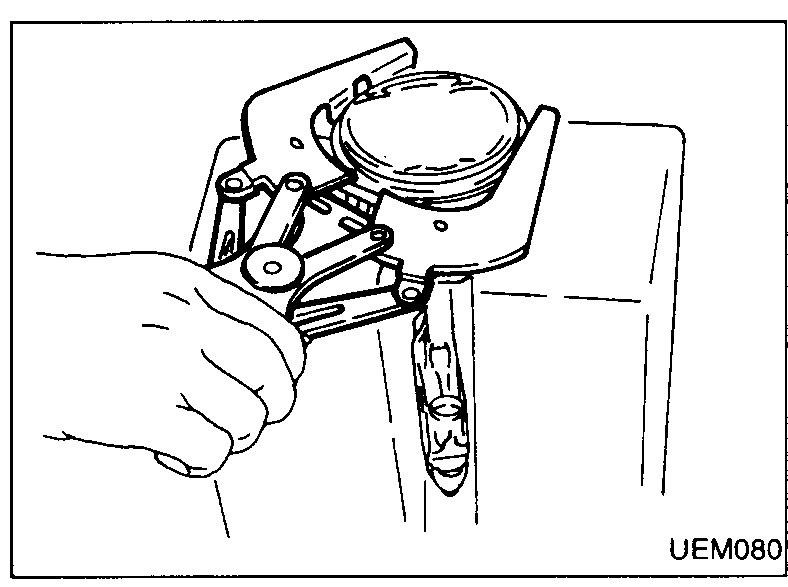

    Hand using a piston-ring expander pliers to remove a piston ring from a piston held horizontally.
    UEM080
