ENGINE REMOVAL — Installation (Cont'd) (Supplement-V)

EM-5034prose procedure

Source numbering skips step 2 (jumps from step 1 on EM-5033 to step 3 here). Preserved verbatim — no fabrication of an inferred step 2.

Continued from EM-5033

Installation (Cont'd)

Engine installation (continued)

  1. 3
    Install centermember. Tighten RH bracket and Rear bracket to the specified torque.

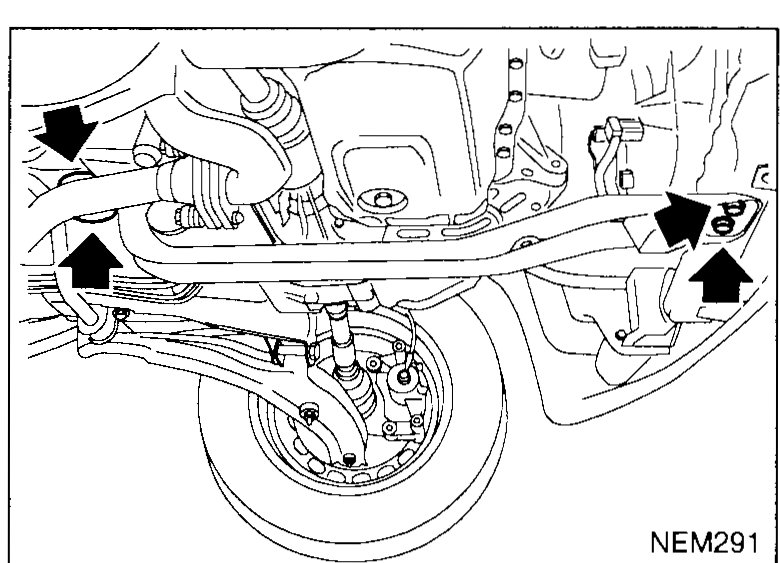

    Underside view of the front cross/centre member with arrows at the four mounting bolt locations — illustrates step 3 (install center member). Same figure used for removal step 23 on EM-5033.
    NEM291
  2. 4
    Tighten finally the transaxle insulator bolts.

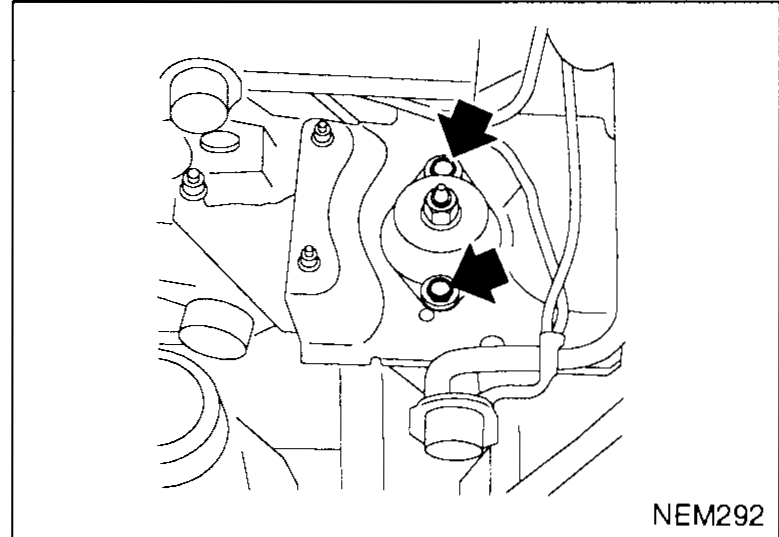

    LH transaxle insulator with two arrows pointing at the insulator stud and the through-bolt to be tightened — illustrates step 4 (tighten transaxle insulator bolts).
    NEM292
  3. 5
    Other installation procedures are in the reverse order of removal.
