ENGINE REMOVAL — Removal (Cont'd) and Installation (Supplement-V)

EM-5033prose procedure
Continued from EM-5032

Removal (Cont'd)

Engine removal (continued)

  1. 20
    Remove upper mounting (Right side).

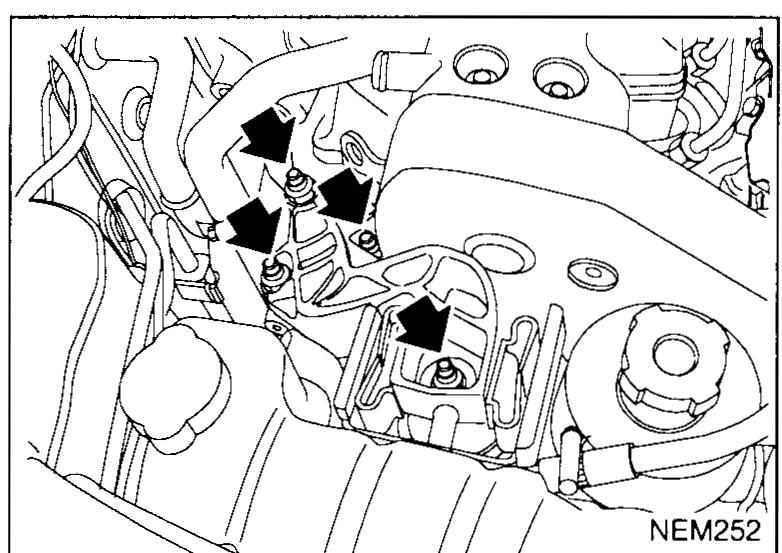

    RH (passenger-side) upper engine mount with arrows pointing at the three bolts of the upper bracket — illustrates step 20 (remove upper mounting RH).
    NEM252
  2. 21
    Release transaxle shift linkages.

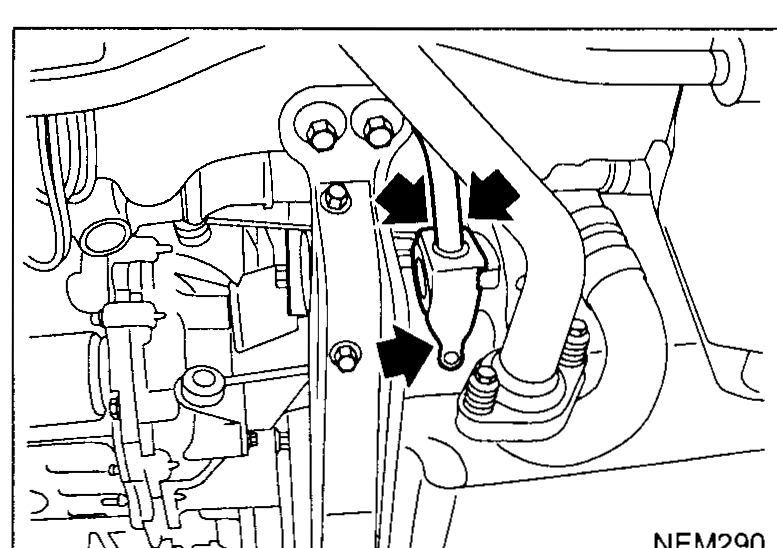

    LH (driver-side) transaxle area with arrows pointing at shift-linkage retainers and the transaxle mounting bolts — illustrates steps 21 and 22.
    NEM290
  3. 22
    Release transaxle mounting (Left side).
  4. 23
    Remove center member.
    Underside view of the front cross/centre member with arrows at the four mounting bolts being removed — illustrates step 23.
    NEM291
  5. 24
    Remove engine with transaxle as shown.

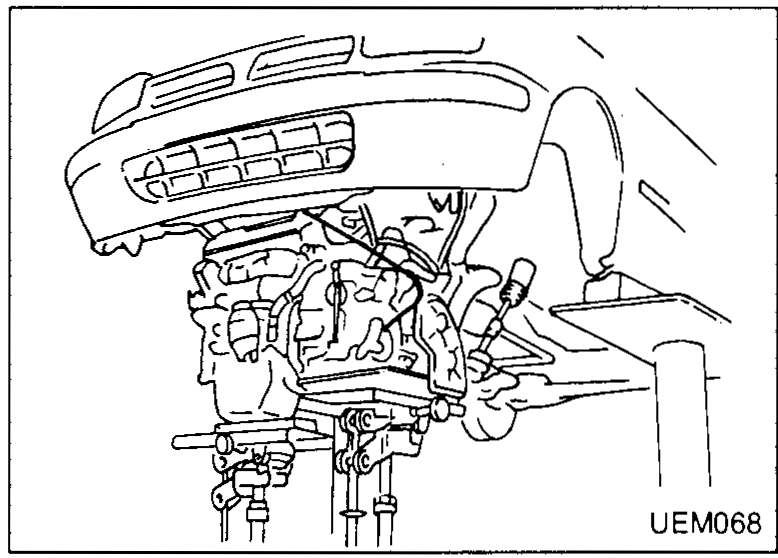

    Engine + transaxle assembly being lowered out from under the front of the vehicle — illustrates step 24 (remove engine with transaxle).
    UEM068

Installation

Engine installation

  1. 1
    Install top engine mounting brackets and fixing bolts. Install RH insulator to vehicle body and tighten to the specified torque using SST KV109B0090.

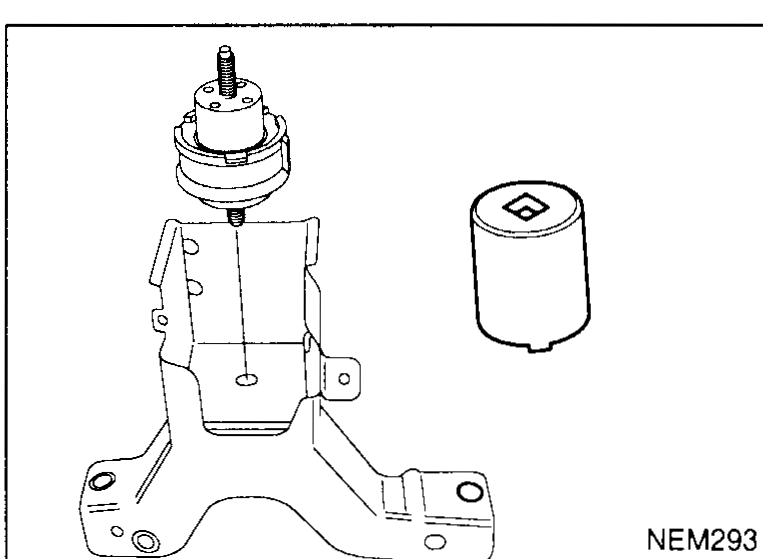

    RH insulator being installed on the bodywork with the KV109B0090 engine-mount socket on a torque wrench — illustrates Installation step 1.
    NEM293
