OUTER COMPONENT PARTS — Rocker Cover

EM-7003parts diagram
Continued from EM-7002

Rocker Cover

Ignition coil bolt
3.8 - 5.0N·m
Rocker cover bolt
2.0 - 3.9N·m
Parts DiagramFig. fig1
Parts diagram
Part NameNotes
Hose (to intake manifold)—
Intake manifold—
PVC valve—
SealDo not reuse; lubricate with clean engine oil
Ignition coil—
Air-cleaner (hose)—
Hose (air-cleaner side)—
Oil filler cap—
Rocker cover—
Spark plug tube sealsDo not reuse
GasketDo not reuse
Hose—

REMOVAL

  1. 1
    Remove ignition coils.
  2. 2
    Disconnect hoses.
  3. 3
    Reposition the accelerator cable for access, and remove the rocker cover.

ASSEMBLY

  1. 1

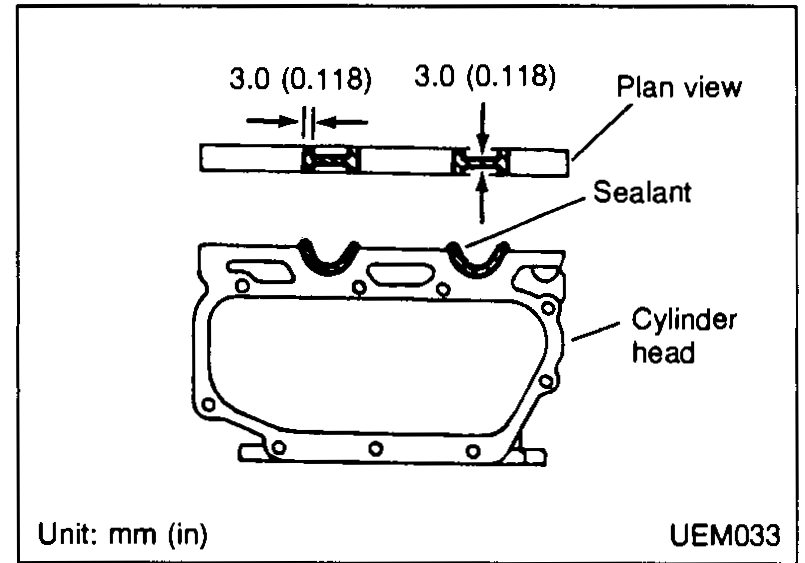

    Apply sealant to the cylinder head in the areas shown.
    Sealant bead width 3.0 mm (0.118 in) at the front and rear arches of the cylinder head.
    Sealant application detail: plan view of the cylinder head showing two 3.0 mm (0.118 in) wide sealant beads at the front and rear arches of the head. Unit: mm (in).
    UEM033
