CYLINDER BLOCK — Disassembly (Cont'd) / Inspection / Piston and Piston Pin Clearance
EM-46prose procedureDisassembly (Cont'd)
IMPORTANT
When disassembling piston and connecting rod, use piston pin press stand at room temperature.
Piston must not be re-used.
Cylinder block disassembly (continued)

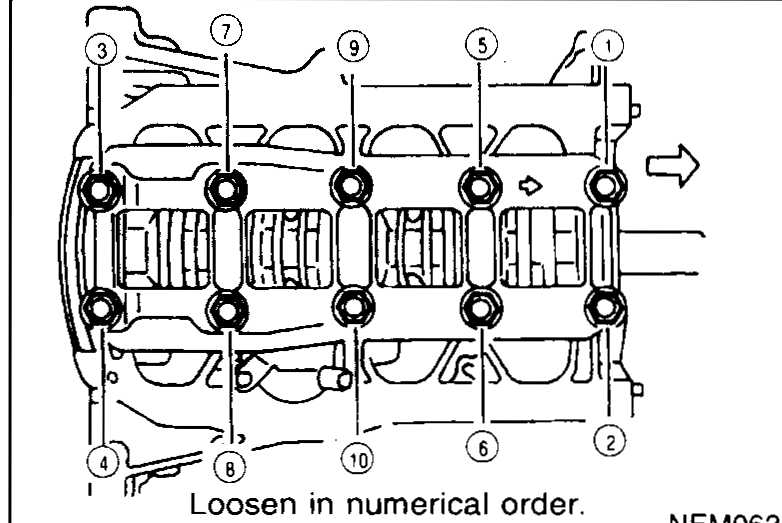

- 8Remove main bearing beam and crankshaft.Before removing main bearing beam, measure crankshaft end play. (Refer to cylinder block assembly section.)Bolts should be loosened in two or three stages and in the order shown.

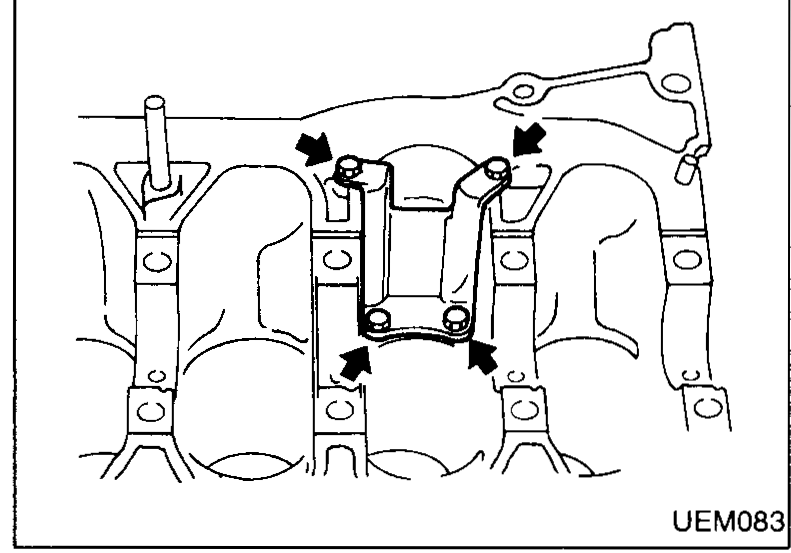

NEM063 - 9Remove the crankcase breather bracket. Remove the filter mesh. Clean filter before refitting.
UEM083
Inspection
Piston and piston pin clearance
- 1Measure inner diameter of piston pin hole. Standard diameter: 18.004 - 18.010 mm (0.7088 - 0.7091 in).
SEM149B
| Specification | Value |
|---|---|
| Piston pin hole standard inner diameterStandard | 18.004 - 18.010 (0.7088 - 0.7091)mm (in) |
Piston pin hole standard inner diameterStandard
18.004 - 18.010 (0.7088 - 0.7091)mm (in)
