REMOVAL AND INSTALLATION - AIR BREATHER HOSE
AT-7128component photoInstallation (Cont'd)
AIR BREATHER HOSE
Component LocationFig. fig1

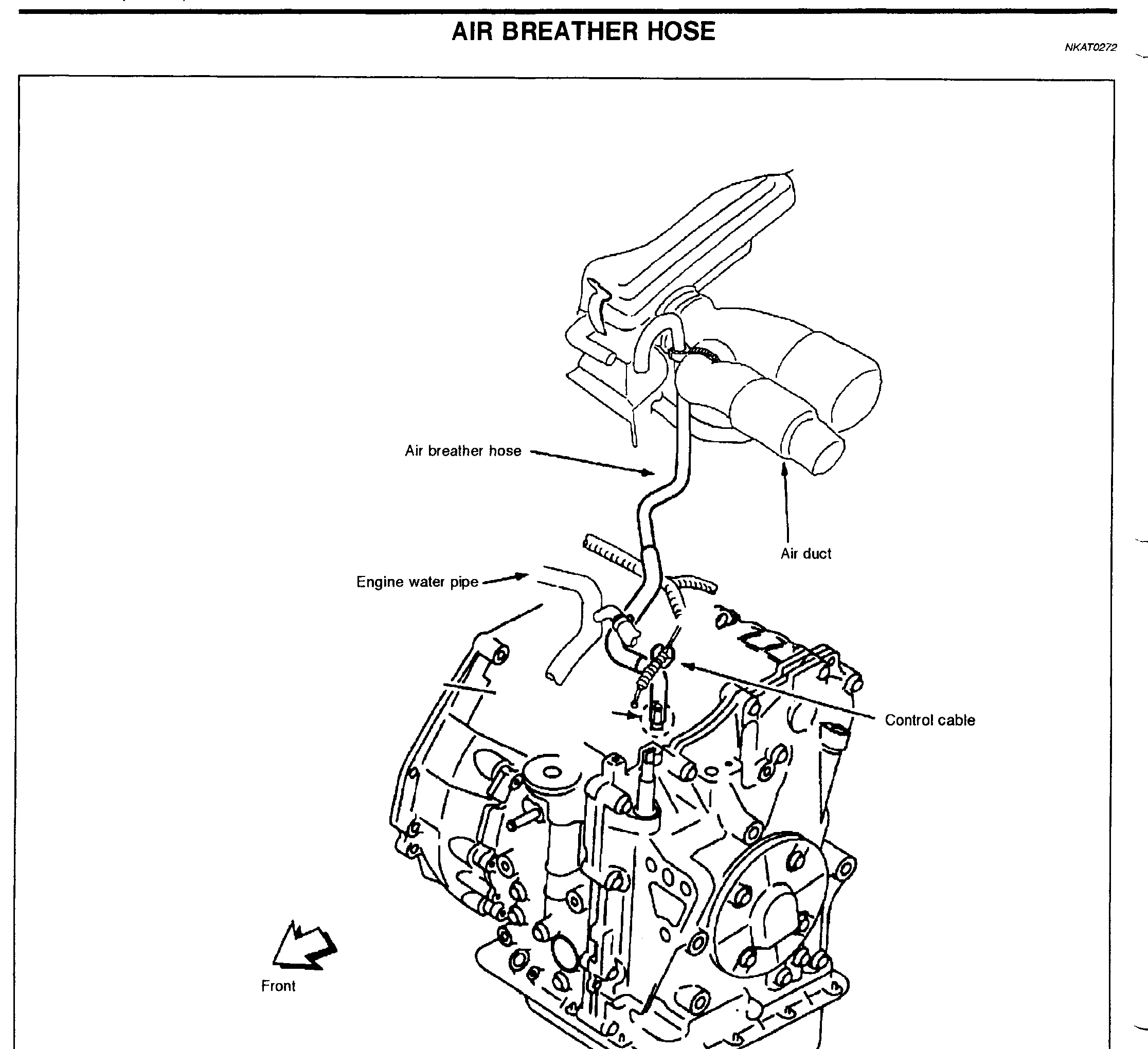

Air breather hose routing on transaxle showing air duct, engine water pipe, and control cable
NAT326
1Air breather hose(upper center routing from transaxle to air duct)
2Air duct(upper right)
3Engine water pipe(left side of transaxle)
4Control cable(right side of transaxle)
5Front(lower left direction arrow)
