ASSEMBLY - Assembly (Cont'd)

AT-117prose procedure

Note printed 'transimission' typo for 'transmission' preserved verbatim. Step 15 is implicit in the text 'Tighten the bolts in the sequence shown.' (no explicit '15.' prefix in the printed source).

Assembly (Cont'd)

Assembly steps 13-16

  1. 13

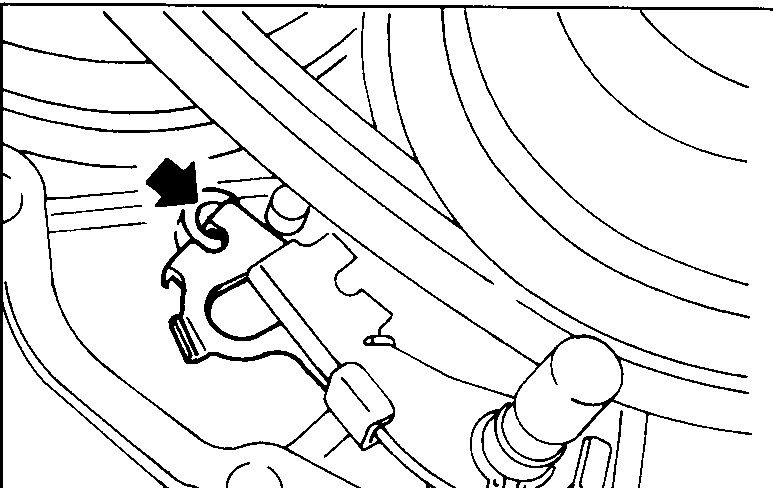

    Fit the park pawl assembly to the side casing.
    Ensure the guide is located in the hole correctly (shown by the arrow).
    Ensure the spring is not trapped between the pawl and guide plate.
    Park pawl guide fitted into hole in side casing; arrow indicates the location of the guide hole.
    UAT244
  2. 14

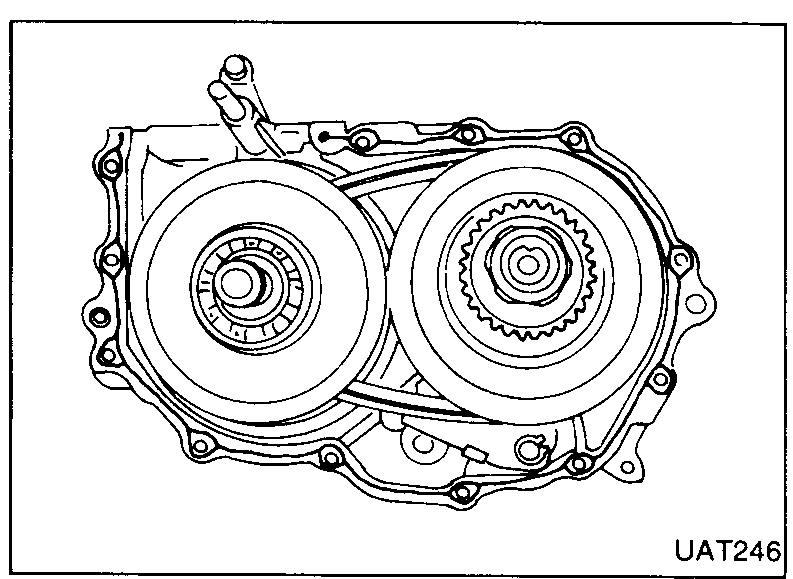

    Apply liquid gasket to the mating faces and install the transimission casing to the side casing.
    Ensure mating faces are clean.
    Apply a continuous bead of liquid gasket, but do not over-apply.
    Side casing with the two CVT pulleys and drive belt visible; transmission casing about to mate.
    UAT246
  3. 15
    Tighten the bolts in the sequence shown. Torque = 22 - 26 N·m (2.2 - 2.7 kg-m, 16 - 20 ft-lb)
    Casing bolt tightening sequence — 12 bolt positions numbered (1) through (12) on the side casing.
    UAT247
  4. 16

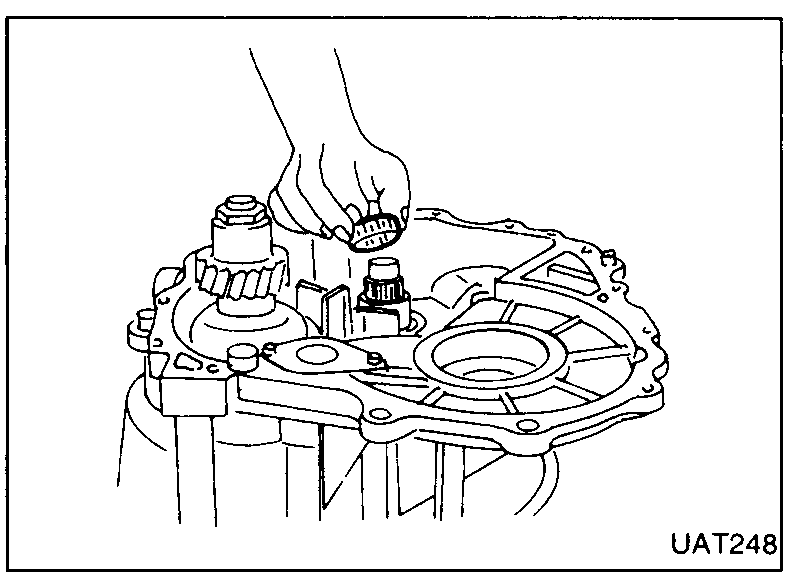

    Fit the needle bearing.
    Needle bearing being fitted by hand to the bearing seat.
    UAT248
