OVERALL SYSTEM - Cross-sectional View - RE0F21A

AT-7011component photo

Cross-sectional View - RE0F21A

RE0F21A
Component LocationFig. fig1

Cross-sectional cutaway of the RE0F21A CVT transaxle showing the major internal components.

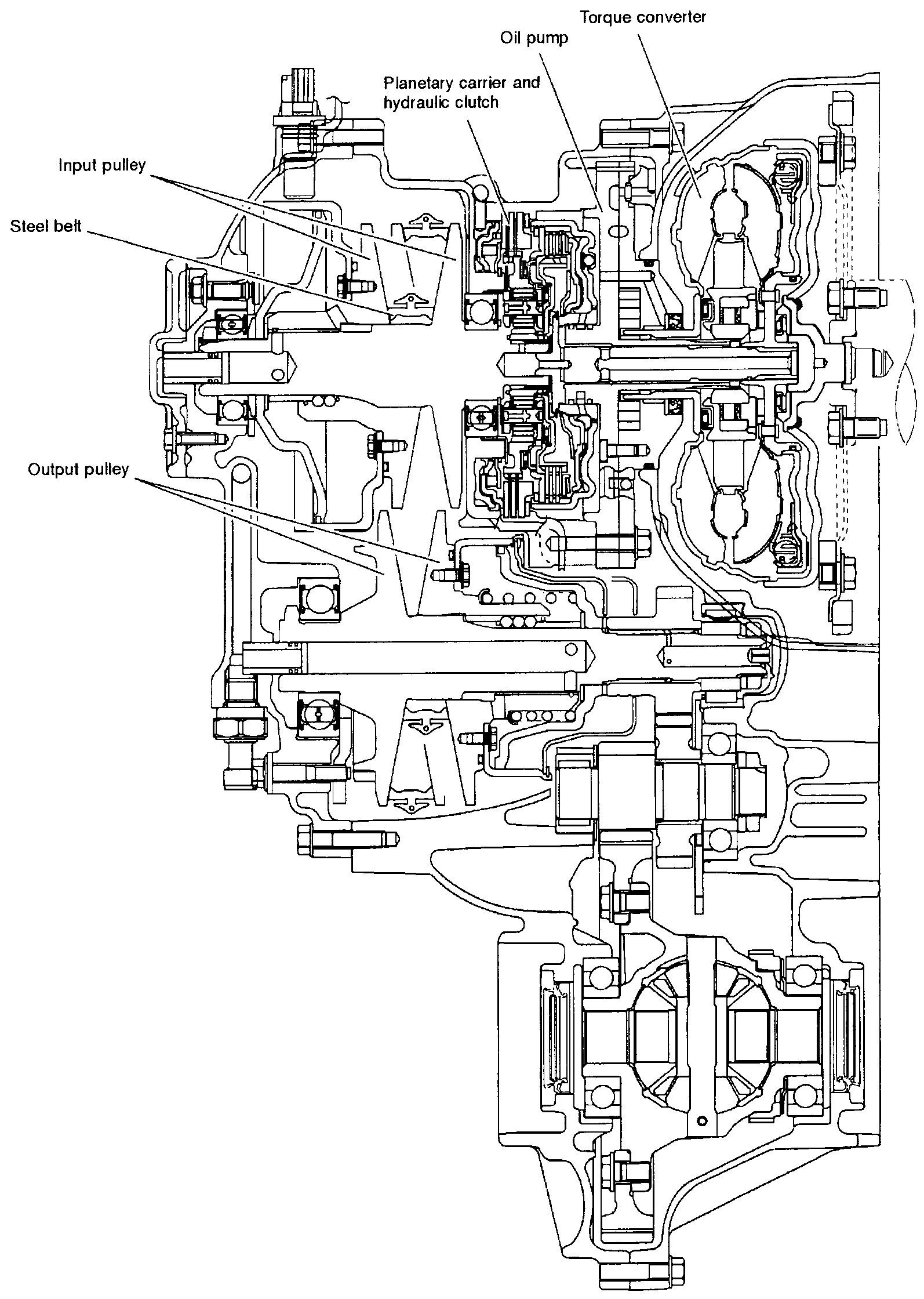

Cross-sectional cutaway drawing of the Nissan RE0F21A CVT transaxle. Major callouts identify the Torque converter (right end), Oil pump (top center), Planetary carrier and hydraulic clutch (upper center), Input pulley (upper-left), Steel belt (left side connecting input and output pulleys), Output pulley (lower-left). The lower portion shows the differential assembly.
JAT176K
1Torque converter(Right end (engine side))
2Oil pump(Top center)
3Planetary carrier and hydraulic clutch(Upper center)
4Input pulley(Upper left)
5Steel belt(Between pulleys)
6Output pulley(Lower left)
