ASSEMBLY - Assembly (Cont'd)

AT-119prose procedure
Continued from AT-118

Assembly (Cont'd)

Assembly steps 25-28

  1. 25
    Fit and tighten the securing bolts. Torque = 3 - 4 N·m (0.31 - 0.41 kg-m, 2 - 3 ft-lb)

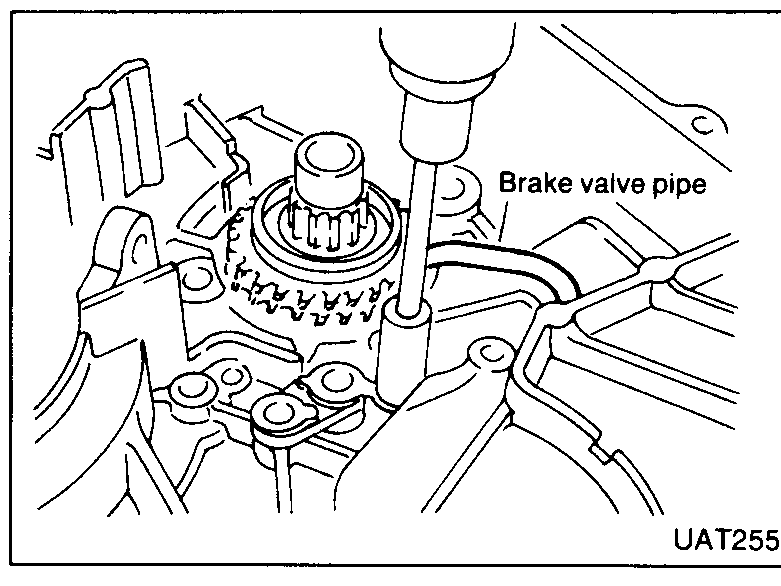

    Brake valve pipe being secured with a tool over the gear.
    UAT255
  2. 26
    Position the park rod and shift cam into the casing.

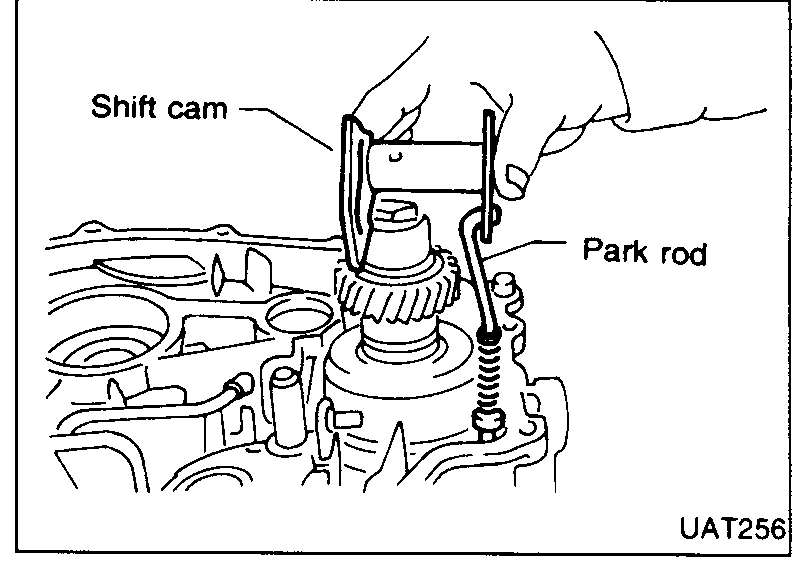

    Park rod and shift cam being positioned by hand into the casing.
    UAT256
  3. 27
    Position the shift fork pin into the cam, and the park rod into the guide.

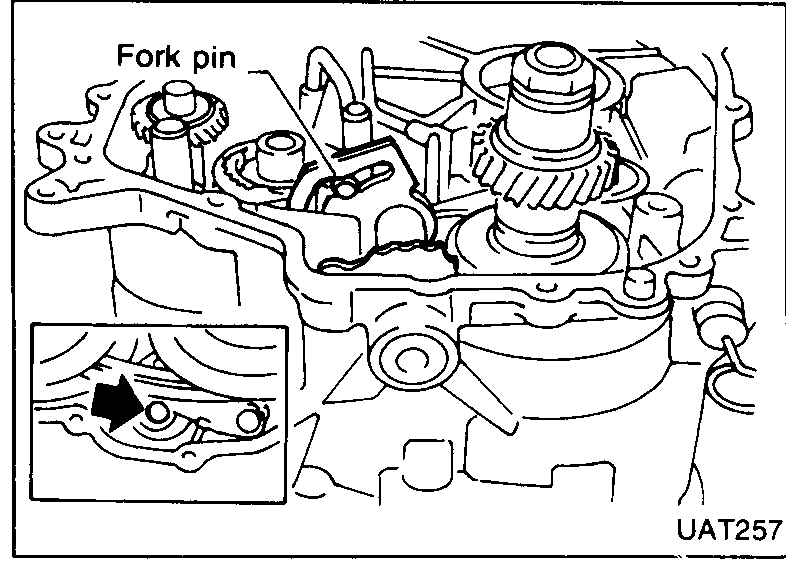

    Shift fork pin positioned in cam, park rod in guide. Inset shows an arrow indicating engagement detail.
    UAT257
  4. 28
    Insert the shift arm through the casing and shift cam. Fit the retaining pin.

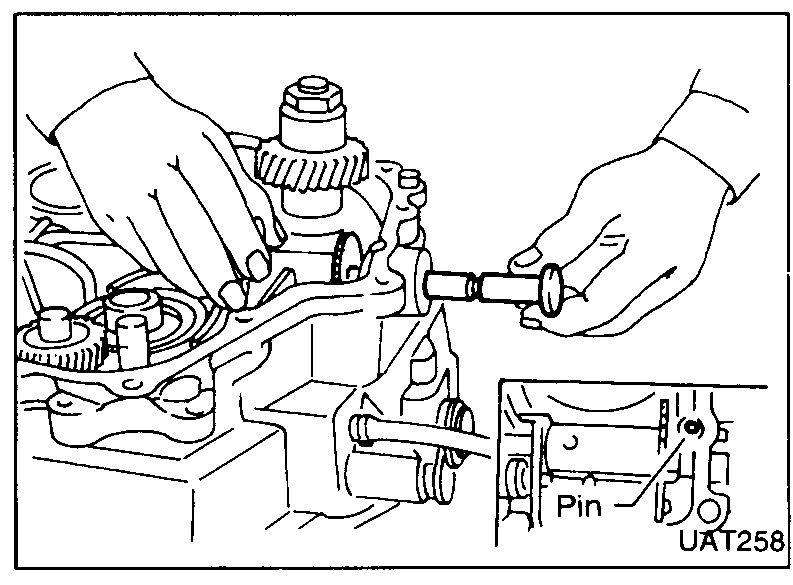

    Shift arm being inserted through casing and shift cam, retaining pin being fitted. Inset shows pin location detail.
    UAT258
