DTC P0720 OUTPUT PULLEY SPEED SENSOR CVT

AT-7070prose procedure
Continued from AT-7069

Component Inspection

OUTPUT PULLEY SPEED SENSOR

Output pulley speed sensor component inspection

  1. 1
    Jacking up the vehicle.
  2. 2
    Turn ignition switch to "ON" position.
  3. 3
    Check voltage between output pully sensor harness connector E147 terminals 1 and 3.

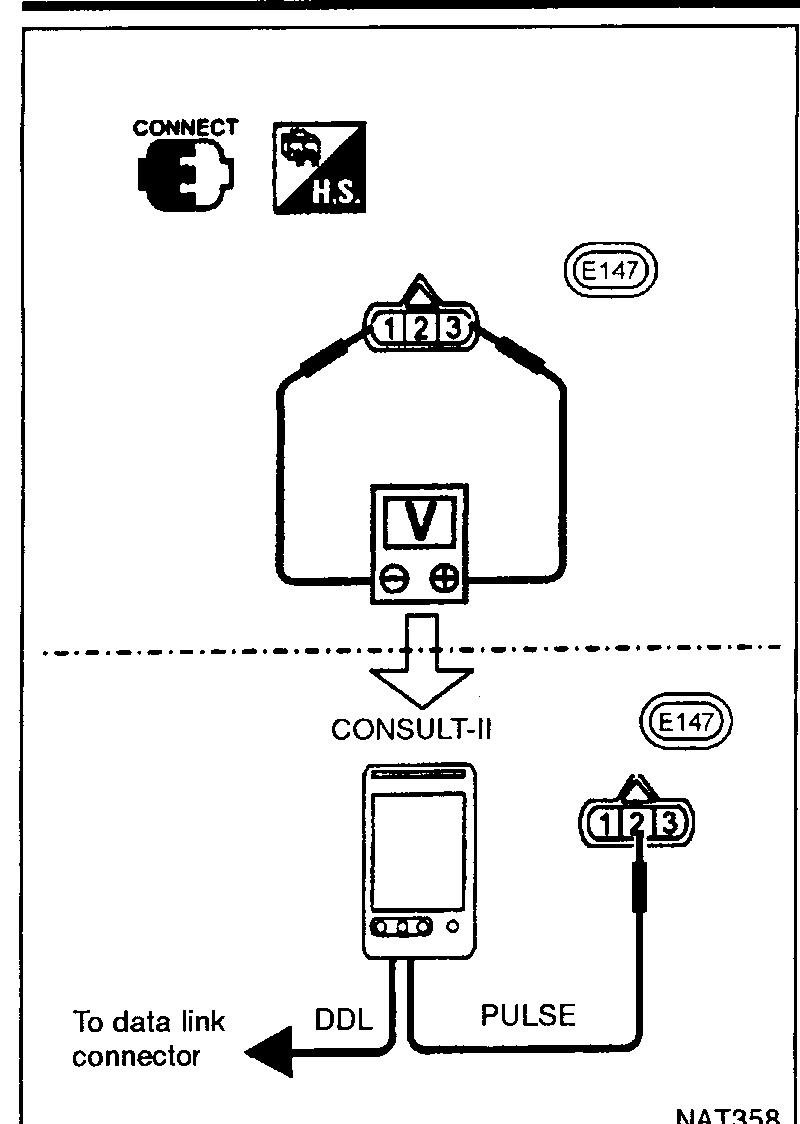

    Voltage/pulse check setup. Top: voltmeter V probes between E147 terminals 1 and 3. Bottom: CONSULT-II hooked to E147 connector (terminals 1, 2, 3) with PULSE input and DDL line going to data link connector. CONNECT/H.S. icons.
    NAT358
  4. 4
    Check pulse by using the pulse measurement function of CONSULT-II when front wheel rotating.
At front wheel rotating [D position, 20 km/h (12 MPH)]
Approx. 330 Hz
