REMOVAL AND INSTALLATION - Installation

AT-7127prose procedure

1

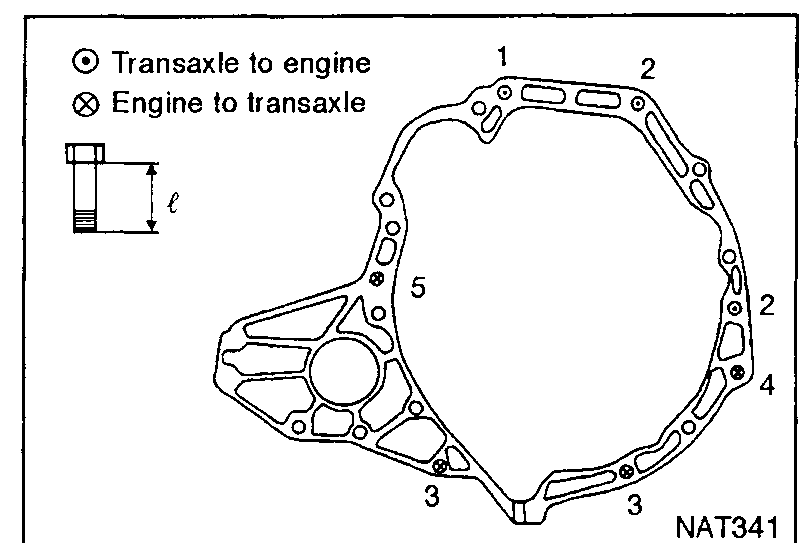

Tighten bolts fixing transaxle.
NAT341
2
Install torque converter to drive plate. With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding.
3
Reinstall any part removed.
4
Adjust control cable. Refer to AT-7124.
5
Check continuity of PNP switch. Refer to AT-7056.
6
Refill transaxle with CVT fluid and check fluid level.
7
Move selector lever through all positions to be sure that transaxle operates correctly. With parking brake applied, idle engine. A slight shock should be felt through the hand gripping the selector each time the transaxle is shifted.
SAT638A
8
Perform road test. Refer to AT-7039.

Bolt No.	Tightening torque N·m (kg-m, ft-lb)	Bolt length 'l' mm (in)
1	31 - 40 (3.1 - 4.1, 23 - 29)	45 (1.77)
2	31 - 40 (3.1 - 4.1, 23 - 29)	50 (1.97)
3	16 - 20 (1.6 - 2.1, 12 - 15)	20 (0.79)
4	16 - 20 (1.6 - 2.1, 12 - 15)	16 (0.53)
5	63.7 - 73.5 (6.5 - 7.4, 47 - 54)	53 (2.09)

Tightening torque N·m (kg-m, ft-lb)31 - 40 (3.1 - 4.1, 23 - 29)

Bolt length 'l' mm (in)45 (1.77)

Tightening torque N·m (kg-m, ft-lb)31 - 40 (3.1 - 4.1, 23 - 29)

Bolt length 'l' mm (in)50 (1.97)

Tightening torque N·m (kg-m, ft-lb)16 - 20 (1.6 - 2.1, 12 - 15)

Bolt length 'l' mm (in)20 (0.79)

Tightening torque N·m (kg-m, ft-lb)16 - 20 (1.6 - 2.1, 12 - 15)

Bolt length 'l' mm (in)16 (0.53)

Tightening torque N·m (kg-m, ft-lb)63.7 - 73.5 (6.5 - 7.4, 47 - 54)

Bolt length 'l' mm (in)53 (2.09)
