ASSEMBLY - Assembly (Cont'd)

AT-118prose procedure
Continued from AT-117

Assembly (Cont'd)

Assembly steps 17-24

  1. 17

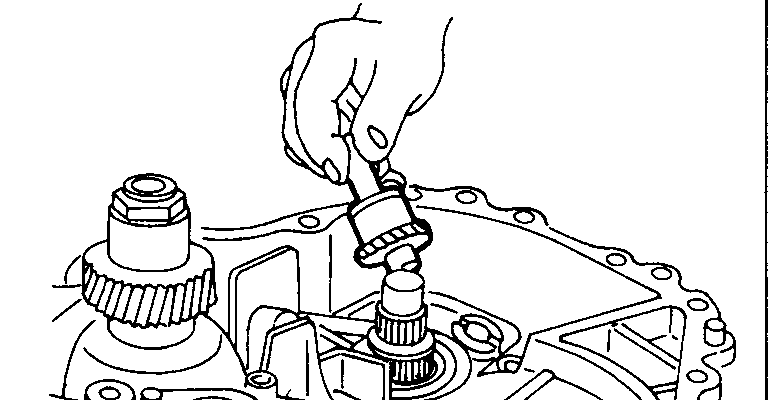

    Install the reverse idle gear.
    Ensure the pin is positioned correctly in the transmission case.
    Reverse idle gear being installed by hand into the transmission case.
    UAT249
  2. 18

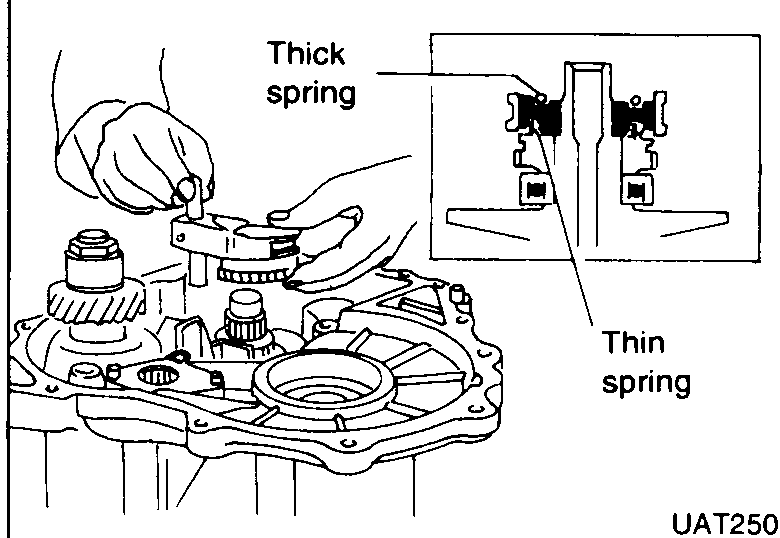

    Assemble the synchroniser using clean ATF.
    Note the two wire springs are different thicknesses. Fit the thinner spring facing the transmission casing, and the thicker one facing the clutch housing. Align the spring gaps.
    Synchroniser hub with wire-spring orientation: inset shows 'Thick spring' on clutch-housing side and 'Thin spring' on transmission-casing side.
    UAT250
  3. 19
    Install the sleeve and hub assembly, shift fork and reverse gear.
  4. 20

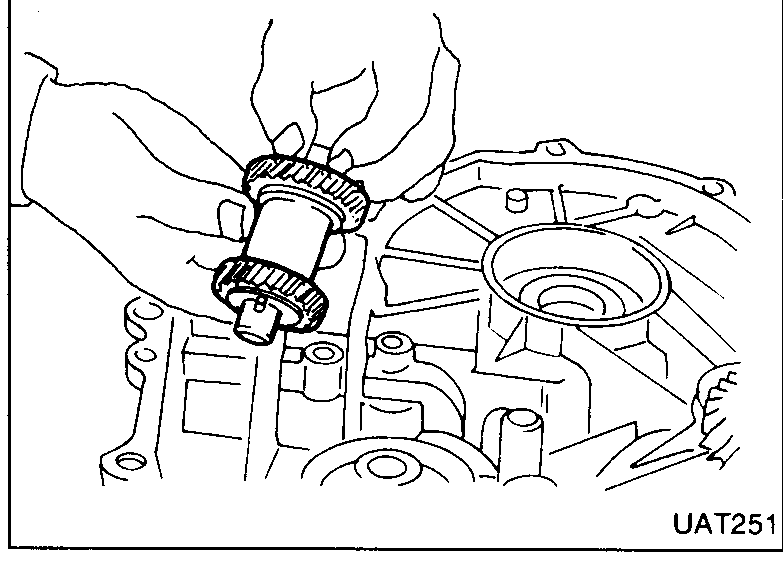

    Fit the counter gear (small end facing the drive belt) to the shaft as shown.
    Counter gear (small end facing drive belt) being fitted on the shaft.
    UAT251
  5. 21

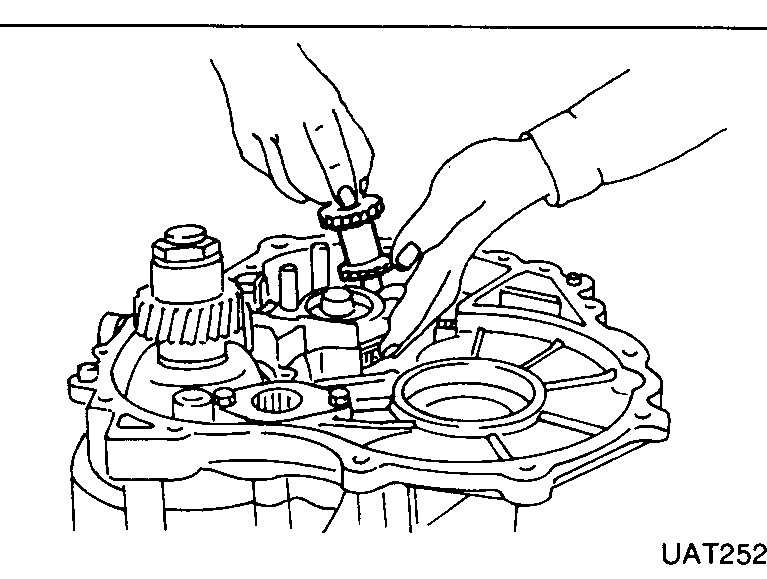

    Install the counter gear assembly.
    Lift the synchroniser sleeve assembly up slightly for access. Lower the counter gear assembly into position. Lower the synchroniser. Ensure the counter shaft pin is correctly located in the transmission casing groove.
    Counter gear assembly being lowered into casing; synchroniser sleeve lifted slightly for access.
    UAT252
  6. 22
    Fit the circlip.
  7. 23
    Install the needle bearing.
  8. 24

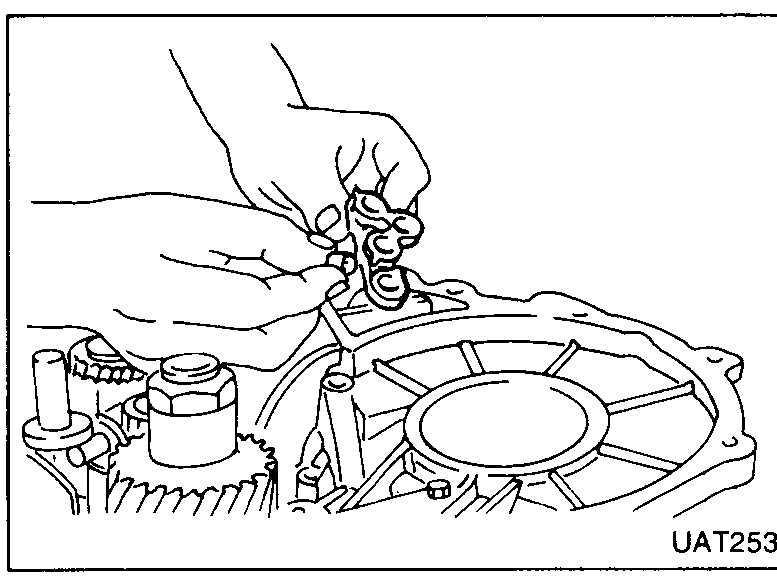

    Install the engine brake valve assembly.
    Engine brake valve assembly being installed by hand.
    UAT253
