OVERALL SYSTEM - CVT Electrical Parts Location
AT-7009component photoCVT Electrical Parts Location
Component LocationFig. fig1

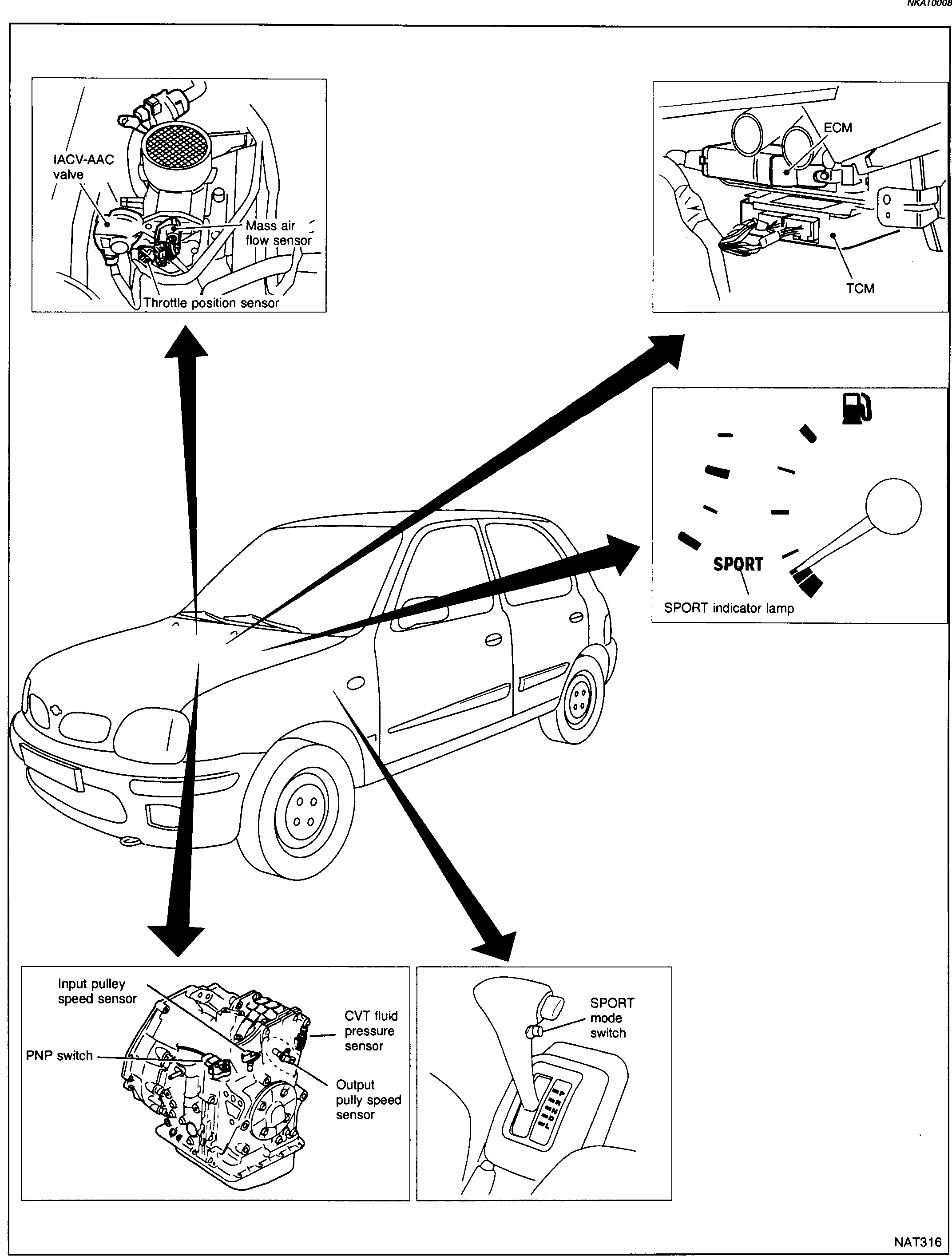

Locations of CVT electrical components on the vehicle.
NAT316
1IACV-AAC valve(engine bay - intake area)
2Mass air flow sensor(engine bay - intake area)
3Throttle position sensor(engine bay - throttle body)
4ECM(behind dash - upper right)
5TCM(behind dash - lower right)
6SPORT indicator lamp(instrument cluster)
7Input pulley speed sensor(transaxle - top)
8CVT fluid pressure sensor(transaxle - right side)
9Output pully speed sensor(transaxle - bottom right)
10PNP switch(transaxle - left side)
11SPORT mode switch(shift lever console)
