ON-VEHICLE SERVICE — Oil Filter Replacement (Cont'd) / Differential Side Oil Seal Replacement

AT-7122prose procedure

CVT model designator on the dim-spec drawing is 'RE0F21A' — Nissan's CVT2 transaxle family used in the K11 N-CVT.

Continued from AT-7121

Oil Filter Replacement (Cont'd)

  1. 3
    Clean oil filter mounting surface on CVT. Coat rubber seal of new oil filter with CVT fluid.
    Hand applying CVT fluid to the rubber seal of the new oil filter cartridge.
    SMA010
  2. 4
    Screw in the oil filter until a slight resistance is felt, then tighten additionally 2/3 turn.
    Diagram showing the oil filter being tightened — circular arrow indicating the 2/3-turn additional tightening after initial resistance.
    NAT339
  3. 5
    Add CVT fluid. Oil filter torque: 12 - 13 N·m (1.22 - 1.42 kg-m, 9 - 18 ft-lb)

Differential Side Oil Seal Replacement

  1. 1
    Remove drive shaft assemblies. Refer to FA section ("Drive Shaft", "FRONT AXLE").
  2. 2

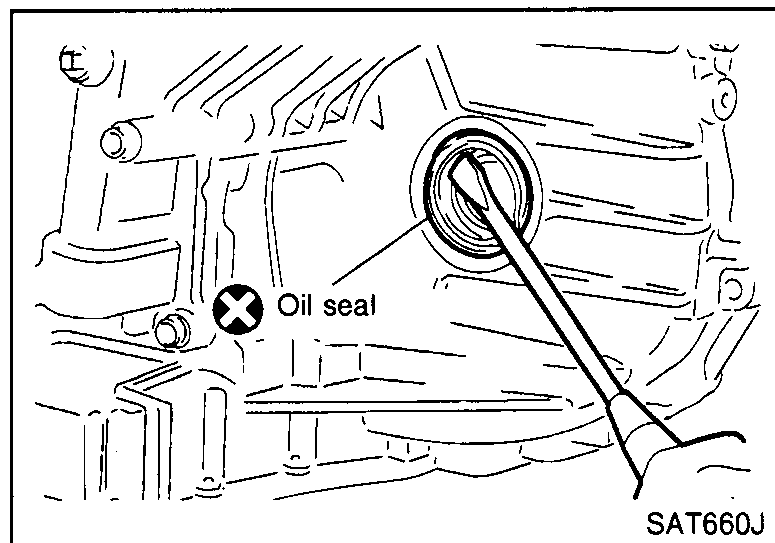

    Remove oil seals.
    CVT case at the differential side with the seal-puller tool inserted into the oil seal bore; 'Oil seal' callout.
    SAT660J
  3. 3
    Install oil seals. • Apply CVT fluid to oil seal surface before installing. • Install oil seals so that dimensions "A" and "B" are within specifications.
    Cross-section view of the differential side oil seal installed in the CVT case for both LH and RH sides — dimension 'B' (axial protrusion) and 'A' (some seating depth) called out per RE0F21A model.
    JAT177K
  4. 4
    Reinstall any part removed.
7 - 7.5 (0.276 - 0.295)
B — mm (in)0 - 0.5 (0 - 0.020)
