Nissan Micra K11 silhouetteK11

DTC P0715 INPUT PULLEY SPEED SENSOR - Component Inspection

AT-7065prose procedure
Continued from AT-7064

Component Inspection

INPUT PULLEY SPEED SENSOR

  1. 1
    Jacking up the vehicle.
  2. 2
    Check voltage between input pully speed sensor terminal 1 and 3. Battery voltage should exist.

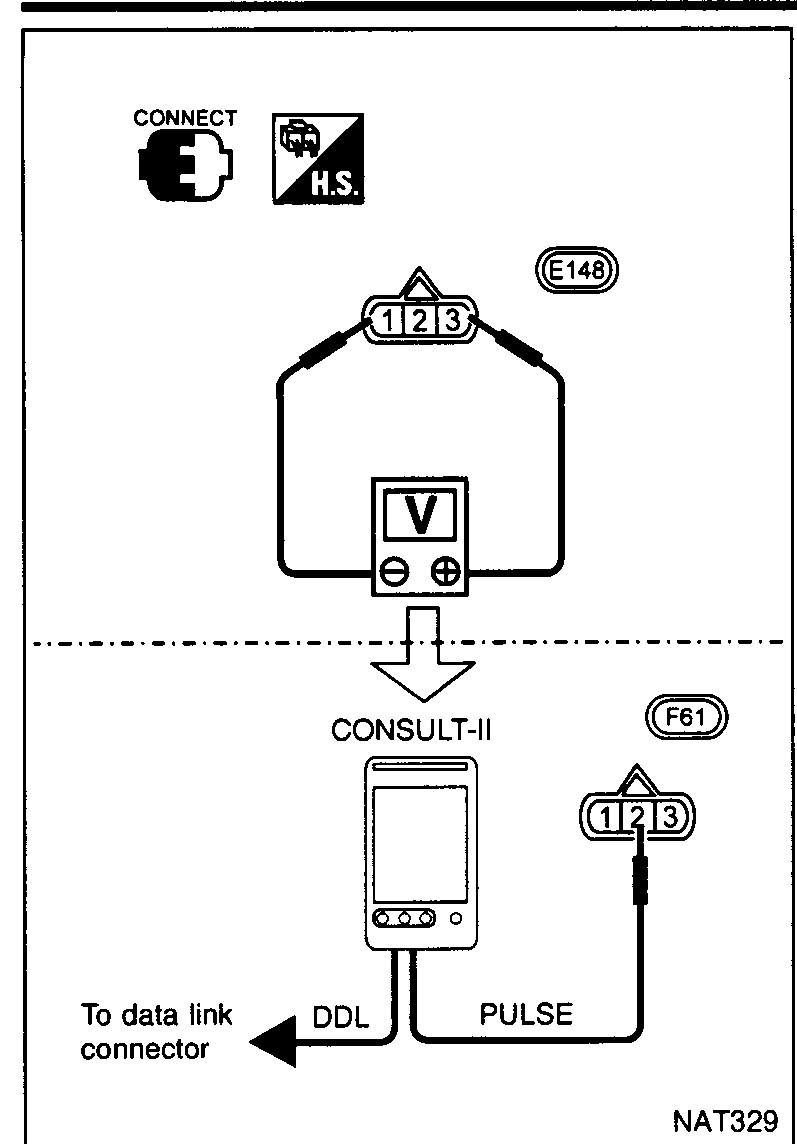

    Component inspection setup: voltage check between input pulley speed sensor connector E148 terminals 1 and 3, then CONSULT-II pulse measurement via connector F61 with cable from CONSULT-II PULSE port and DDL port to data link connector.
    NAT329
  3. 3
    Check pulse by using the pulse measurement function of CONSULT-II when front wheel rotating.
