ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION - CONSULT-II (Cont'd)
AT-7023spec tableCONSULT-II (Cont'd)
Self-Diagnostic Procedure (with CONSULT-II)
- 1Turn on CONSULT-II and touch "ENGINE" for EURO-OBD detected items or touch "CVT" for TCM self-diagnosis. If CVT is not displayed, check TCM power supply and ground circuit. Refer to AT-7044. If result is NG, refer to EL section ("POWER SUPPLY ROUTING").
SAT651J - 2Touch "SELF DIAGNOSIS". Display shows malfunction experienced since the last erasing operation. CONSULT-II performs REAL-TIME SELF-DIAGNOSIS. Also, any malfunction detected while in this mode will be displayed at real time.
SAT584J

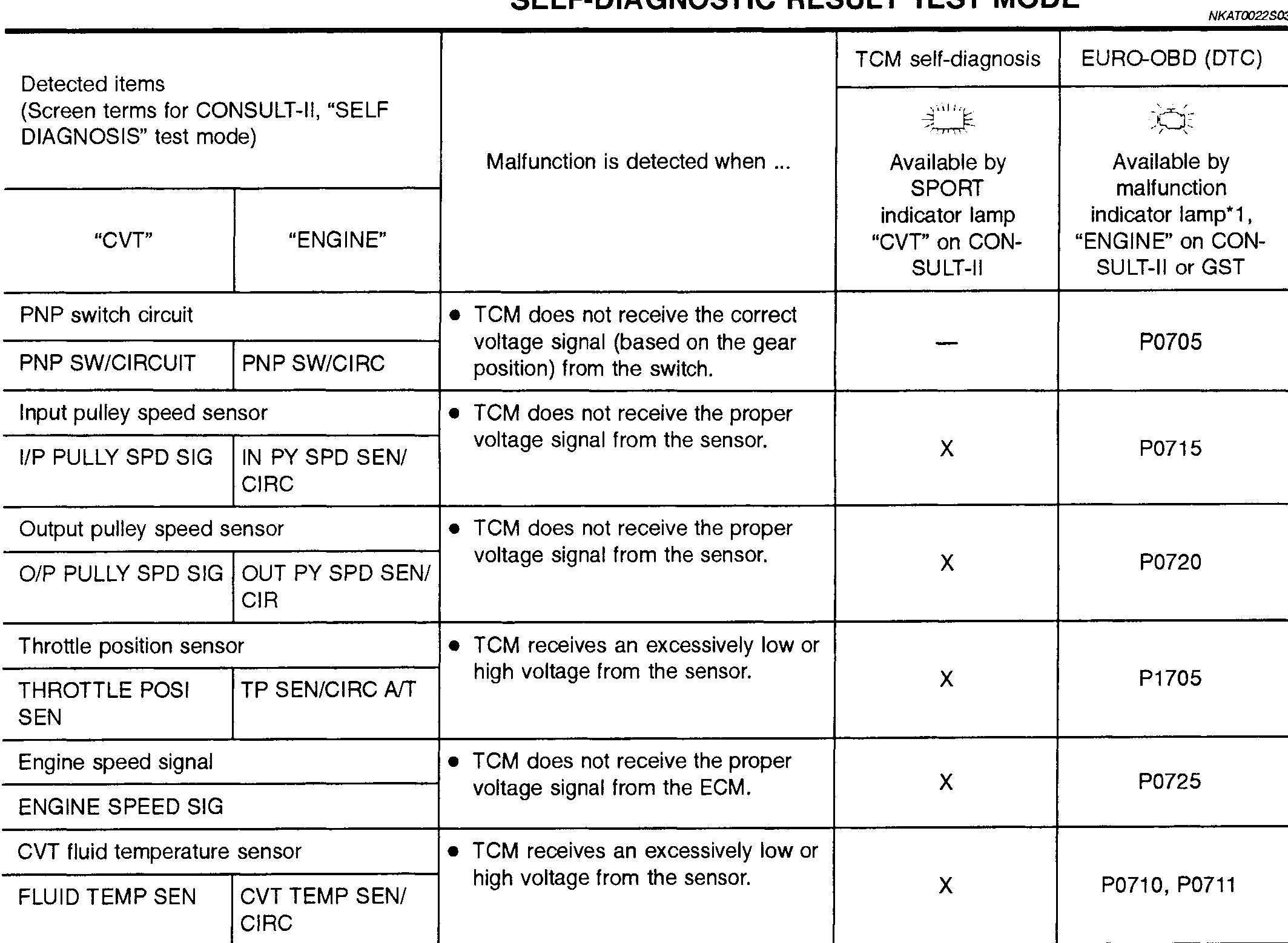

SELF-DIAGNOSTIC RESULT TEST MODE
Self-Diagnostic Result Test Mode — Detected Items
PNP switch circuit
Screen term — "CVT"PNP SW/CIRCUIT
Screen term — "ENGINE"PNP SW/CIRC
Malfunction is detected when...TCM does not receive the correct voltage signal (based on the gear position) from the switch.
TCM self-diagnosis (SPORT indicator lamp "CVT" on CONSULT-II)—
EURO-OBD (DTC) (MI lamp*1, "ENGINE" on CONSULT-II or GST)P0705
Input pulley speed sensor
Screen term — "CVT"I/P PULLY SPD SIG
Screen term — "ENGINE"IN PY SPD SEN/CIRC
Malfunction is detected when...TCM does not receive the proper voltage signal from the sensor.
TCM self-diagnosis (SPORT indicator lamp "CVT" on CONSULT-II)X
EURO-OBD (DTC) (MI lamp*1, "ENGINE" on CONSULT-II or GST)P0715
Output pulley speed sensor
Screen term — "CVT"O/P PULLY SPD SIG
Screen term — "ENGINE"OUT PY SPD SEN/CIR
Malfunction is detected when...TCM does not receive the proper voltage signal from the sensor.
TCM self-diagnosis (SPORT indicator lamp "CVT" on CONSULT-II)X
EURO-OBD (DTC) (MI lamp*1, "ENGINE" on CONSULT-II or GST)P0720
Throttle position sensor
Screen term — "CVT"THROTTLE POSI SEN
Screen term — "ENGINE"TP SEN/CIRC A/T
Malfunction is detected when...TCM receives an excessively low or high voltage from the sensor.
TCM self-diagnosis (SPORT indicator lamp "CVT" on CONSULT-II)X
EURO-OBD (DTC) (MI lamp*1, "ENGINE" on CONSULT-II or GST)P1705
Engine speed signal
Screen term — "CVT"ENGINE SPEED SIG
Screen term — "ENGINE"ENGINE SPEED SIG
Malfunction is detected when...TCM does not receive the proper voltage signal from the ECM.
TCM self-diagnosis (SPORT indicator lamp "CVT" on CONSULT-II)X
EURO-OBD (DTC) (MI lamp*1, "ENGINE" on CONSULT-II or GST)P0725
CVT fluid temperature sensor
Screen term — "CVT"FLUID TEMP SEN
Screen term — "ENGINE"CVT TEMP SEN/CIRC
Malfunction is detected when...TCM receives an excessively low or high voltage from the sensor.
TCM self-diagnosis (SPORT indicator lamp "CVT" on CONSULT-II)X
EURO-OBD (DTC) (MI lamp*1, "ENGINE" on CONSULT-II or GST)P0710, P0711
