ASSEMBLY (Cont'd) (RS5F30A & RS5F31V) [duplicate scan]
MT-61prose procedureThis PDF image (page 069) is a duplicate scan of MT-61 (page 067) — same content verbatim. Recorded again per duplicate-scan convention.
(Cont'd)

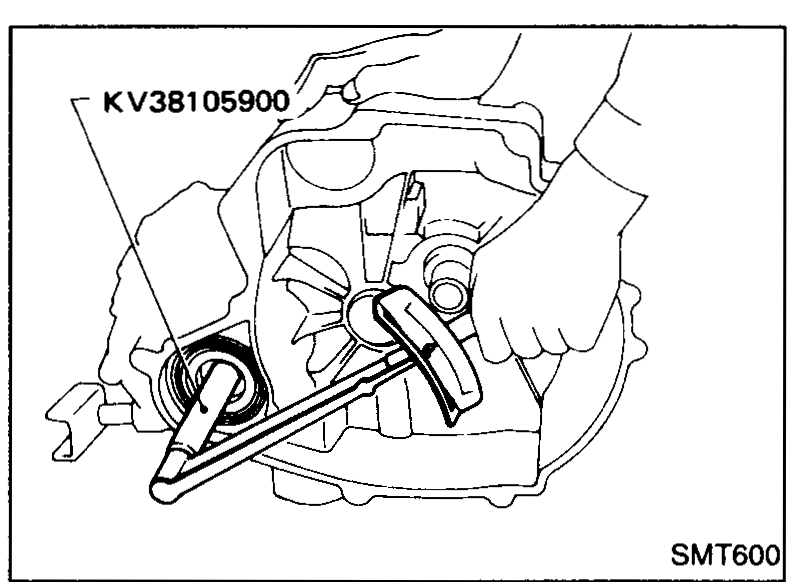

Total turning torque check
- 15Measure total turning torque.When old bearing is used again, turning torque will be slightly less than the above.Make sure torque is close to the specified range.Total turning torque (New bearing): 3.9 - 13.7 N·m (40 - 140 kg-cm, 35 - 122 in-lb)
SMT600
| Specification | Value |
|---|---|
| Total turning torque (new bearing) | ≈38 - 134N·m |
Total turning torque (new bearing)
38 - 134N·m
