REPAIR FOR COMPONENT PARTS — Mainshaft and Gears (Cont'd) (RS5F30A & RS5F31V)

MT-48prose procedure

Page applies to RS5F30A and RS5F31V transaxle variants.

Continued from MT-47

Mainshaft and Gears (Cont'd)

Mainshaft assembly (continued)

  1. 5
    Install steel ball, 4th bushing and 4th main gear.
    Apply multi-purpose grease to steel ball before installing it.
    4th bushing has a groove in which steel ball fits.

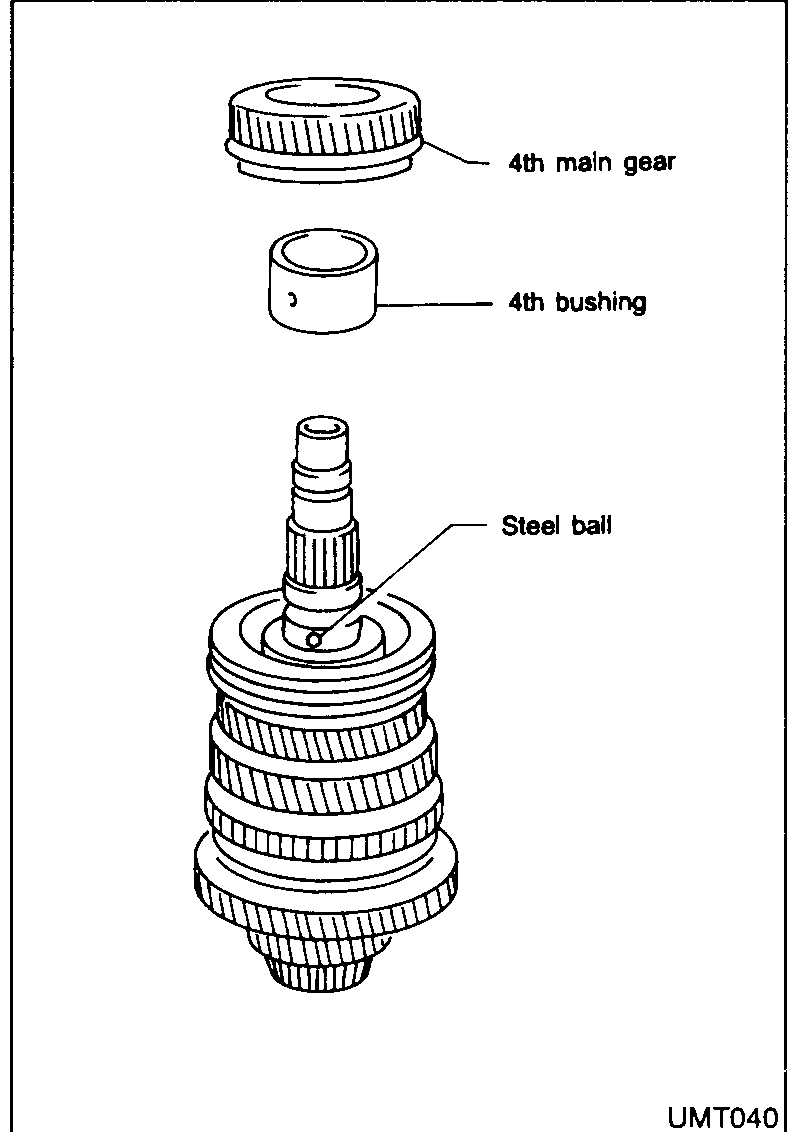

    Exploded sub-assembly showing 4th main gear and 4th bushing being installed onto the mainshaft after seating the steel ball in the shaft groove.
    UMT040
  2. 6
    Press on 5th main gear.
    Special tool ST37750000 (gear installer) being used to press the 5th main gear onto the mainshaft.
    SMT606A
  3. 7
    Install thrust washer.
    C-ring holder, C-ring and thrust washer being installed on the mainshaft (reverse of disassembly fig SMT592).
    SMT592
  4. 8
    Select proper C-ring to minimize clearance of groove in mainshaft and install it.
    Allowable clearance of groove: 0 - 0.1 mm (0 - 0.004 in)
    Mainshaft C-ring: Refer to S.D.S.
  5. 9
    Install C-ring holder.
  6. 10
    Press on mainshaft rear bearing.
    Special tool ST22360002 (bearing installer) being used to press the mainshaft rear bearing onto the shaft.
    SMT607A
Allowable clearance of groove — Mainshaft C-ring
0 - 0.1mm (0 - 0.004 in)
