REPAIR FOR COMPONENT PARTS — Final Drive (Cont'd)

MT-5024prose procedure

Page header tab 'MA5L' (5-speed manual transaxle variant). Page-code stamp 'MT-5024'.

Continued from MT-5023

Final Drive (Cont'd)

ASSEMBLY

Final-drive assembly

  1. 1

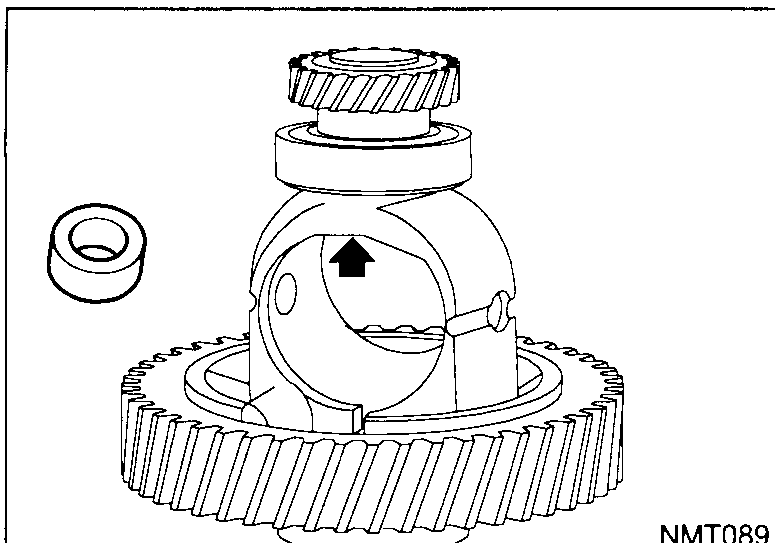

    Install side gear spacer in its position with grease.
    Differential case shown vertically with the side-gear spacer being seated inside; a black arrow points down into the case bore at the spacer's mounting position. A loose spacer ring sits to the left of the case.
    NMT089
  2. 2
    Fit side gears, then install pinion mate washers and pinion mate gears in place.
    Two hands seating a pinion-mate gear with its thrust washer inside the differential case. The case sits on its ring-gear face.
    NMT090
  3. 3

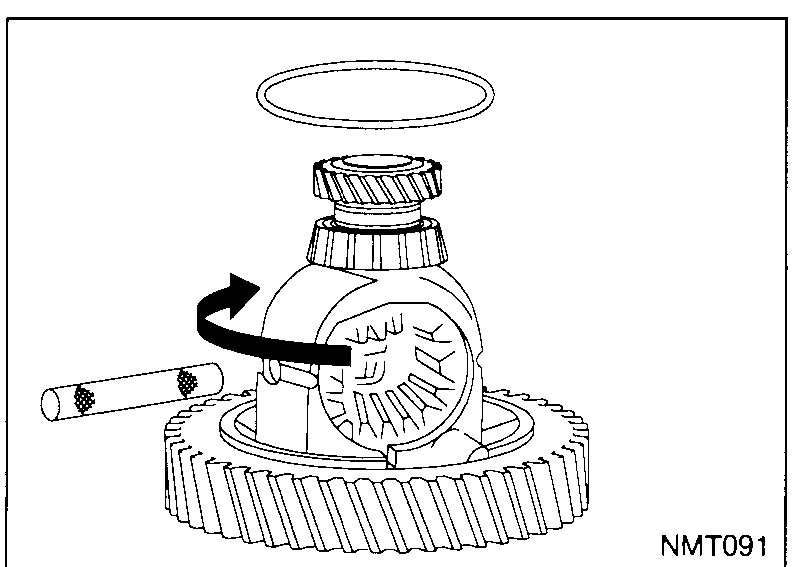

    Turn pinion mate gears and washers in the correct position.
    Differential case with a pin / punch inserted from the left being used to drive the pinion-mate shaft into place; a circular arrow on the case shows the rotation needed to align pinion mate gears and washers. The retaining circlip floats above the case.
    NMT091
  4. 4
    Install pinion mate shaft and secure it with the circlip.
  5. 5
    Install new differential side bearing inner races.
    Differential side-bearing inner race being pressed onto the case using drift tool KV32910013 from above. The label 'KV32910013' is called out on the press tool.
    NMT092
  6. 6
    Install a new speedometer drive gear.
