ON-VEHICLE SERVICE — Replacing Oil Seal & Position Switch Check (MA5L)

MT-5005prose procedure

Supplement-V ON-VEHICLE SERVICE page applying to MA5L transaxle (per top-right banner). Connector ID 'E126' on back-up-lamp-switch fig3 is read at moderate confidence — the printed value could also be E12B or E128.

Continued from MT-5004

Replacing Oil Seal

DIFFERENTIAL OIL SEAL

Replacing differential oil seal

  1. 1
    Drain gear oil from transaxle.
  2. 2
    Remove drive shafts. Refer to section FA.
  3. 3
    Remove differential oil seal.

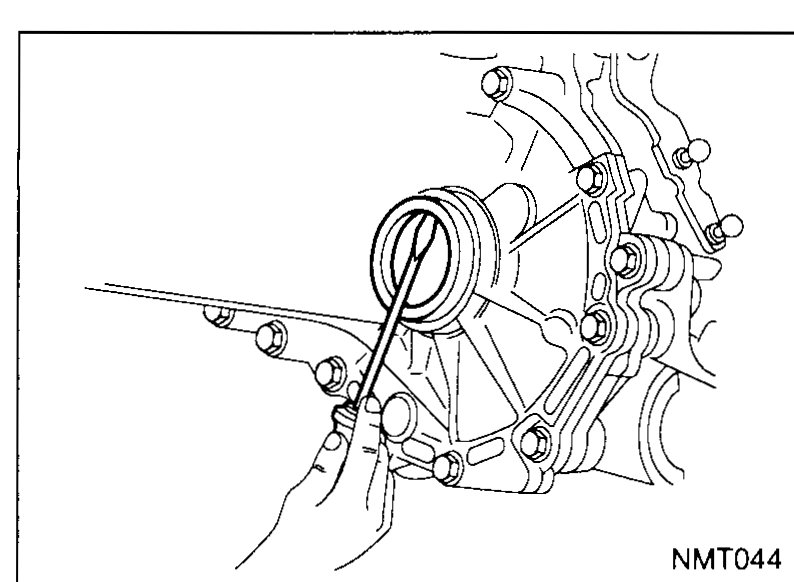

    Hand using a drift through the differential opening of the transaxle case to remove the old differential oil seal.
    NMT044
  4. 4
    Install differential oil seal using SST KV329I0050 and KV329I0051.
    Apply multi-purpose grease to seal lip of oil seal before installing.
    Special tool SST KV329I0050 (drift) being used to install the new differential oil seal into the transaxle case.
    NMT045
  5. 5
    Install drive shafts. Refer to section FA.

Position Switch Check

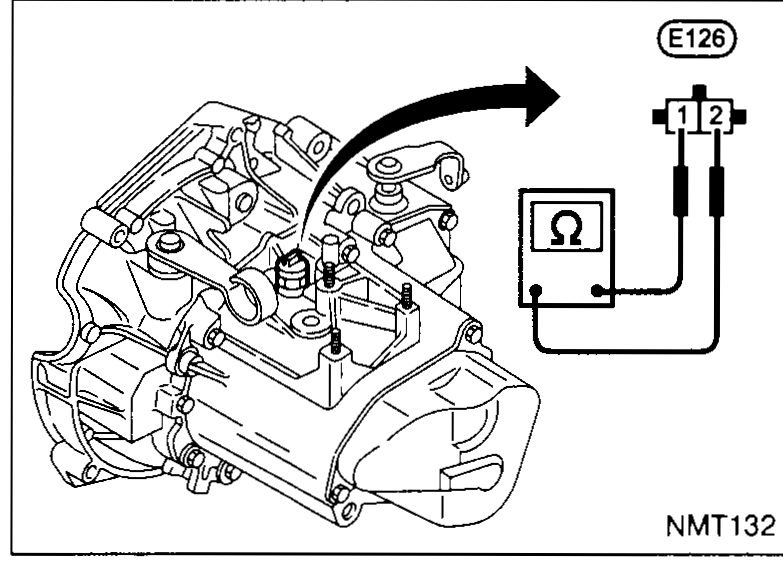

BACK-UP LAMP SWITCH

Reverse
ContinuityYes
Except reverse
ContinuityNo
