Transaxle assembly (continued)

  1. 14
    Install the reverse idler gear and the idler shaft, rotate the shaft until the step falls into its housing.

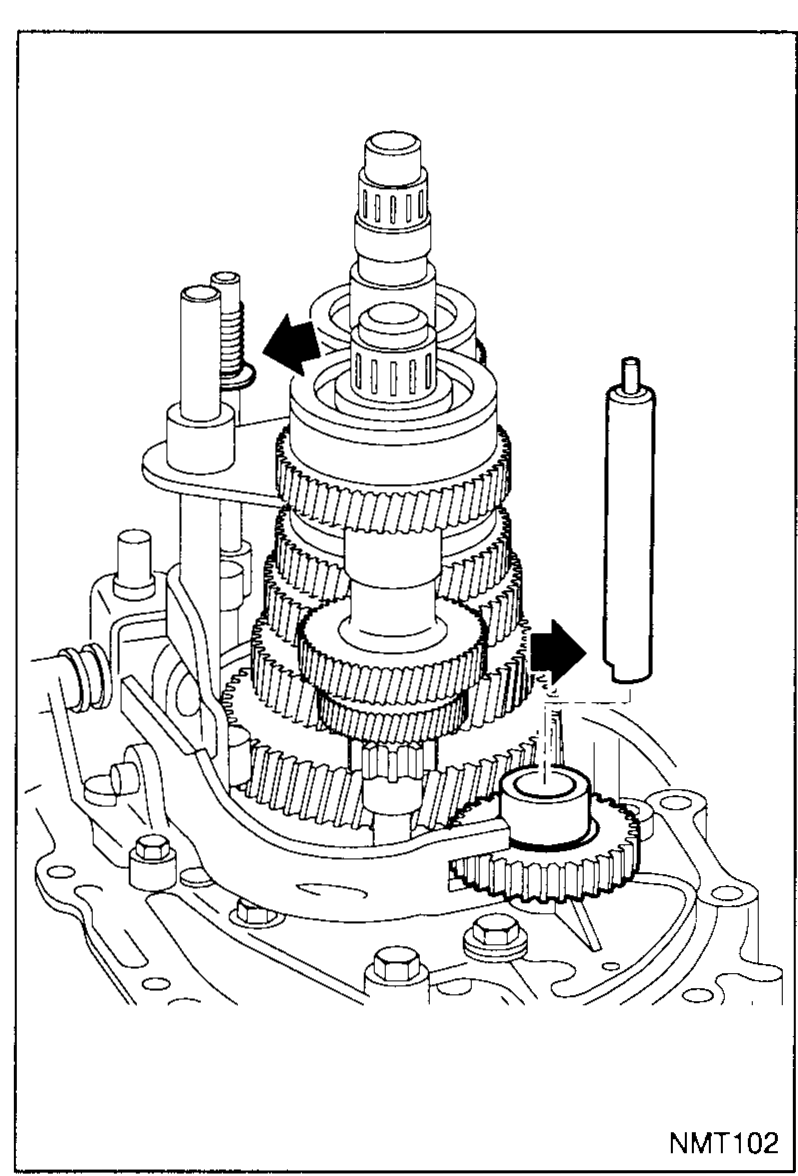

    Transaxle gear-train installed in the casing viewed from above with the reverse idler gear and idler shaft visible to the left of the main gear stack. A black arrow points to the step on the idler shaft that must seat in its housing.
    NMT102
  2. 15
    Install the circlip and spring on the 1st fork shaft.
  3. 16
    Apply liquid sealant to the mating surface of the transaxle casing.

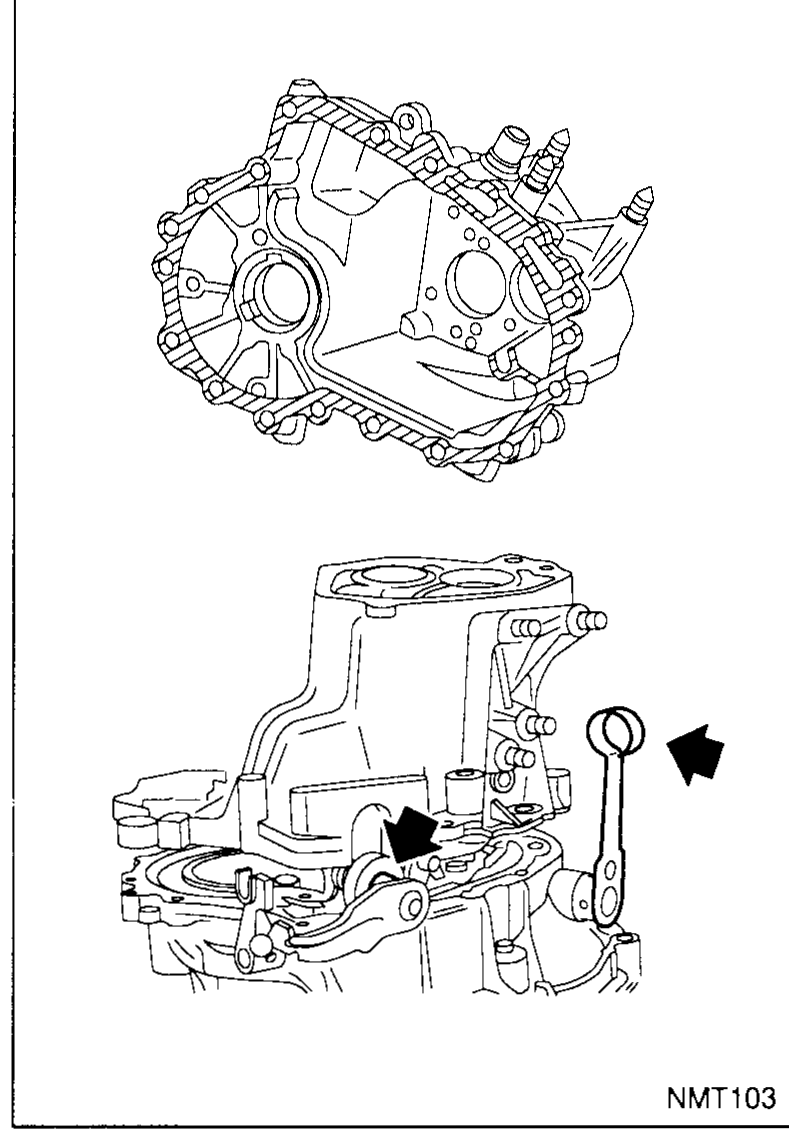

    Outer face of the transaxle casing (clutch-housing side). Two black arrows point to the engagement-shaft seal hole and the clutch release lever position — a small circular item (seal) is shown floating above the case.
    NMT103
  4. 17
    Position the engagement shaft seal and the clutch release lever.
  5. 18
    Install the transaxle casing and tighten the bolts to the specified torque.
  6. 19
    Install the bearing retainers (chamfer to the top) and tighten the new pre-coated bolts to the specified torque.

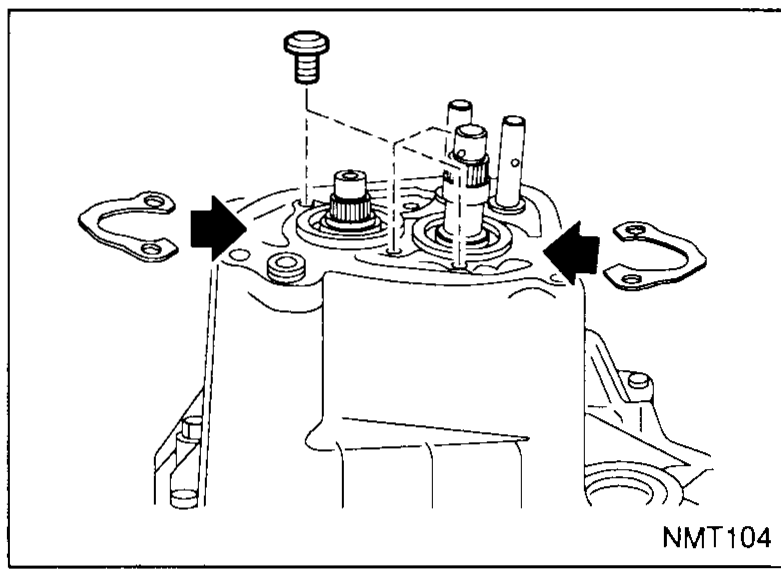

    Top of the transaxle case showing two bearing retainers being installed; each retainer is a flat plate with two pre-coated bolts shown floating above. Black arrows point down at each retainer's seated position, indicating chamfer-to-top orientation.
    NMT104
