REPAIR FOR COMPONENT PARTS — Mainshaft and Gears (Cont'd) (RS5F41A)

MT-23prose procedure

Page applies to RS5F41A transaxle only.

Continued from MT-22

Mainshaft and Gears (Cont'd)

Mainshaft assembly (continued)

  1. 8

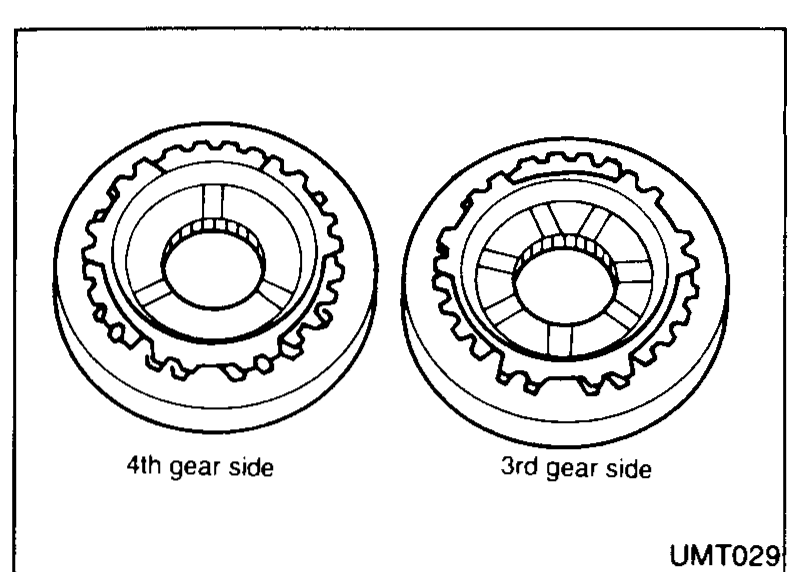

    Apply gear oil to 3rd gear inner surface, then install 3rd gear and 3rd baulk ring, then press 3rd-4th synchronizer hub. Pay attention to the direction of 3rd-4th synchronizer hub.
    Two end-on views of the 3rd-4th synchronizer hub showing the '4th gear side' and '3rd gear side' to indicate proper orientation when installing.
    UMT029
  2. 9
    Install snap ring of proper thickness that will minimize clearance of groove in mainshaft.
    Allowable clearance of groove: 0 - 0.015 mm (0 - 0.0059 in).
    Hand installing a snap ring on the mainshaft above the 3rd-4th synchronizer hub.
    UMT030
  3. 10

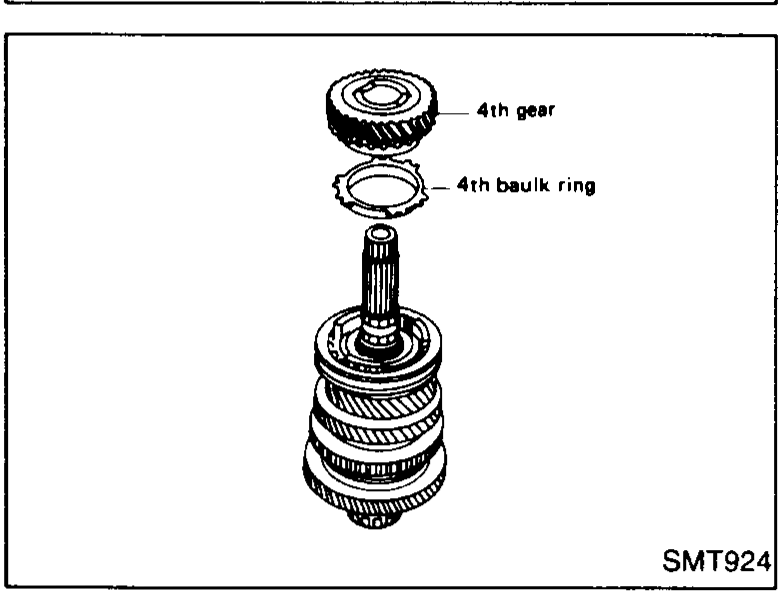

    Apply gear oil to 4th gear inner surface, then install 4th baulk ring and 4th gear.
    Exploded view showing 4th gear and 4th baulk ring positioned for installation on the mainshaft.
    SMT924
  4. 11

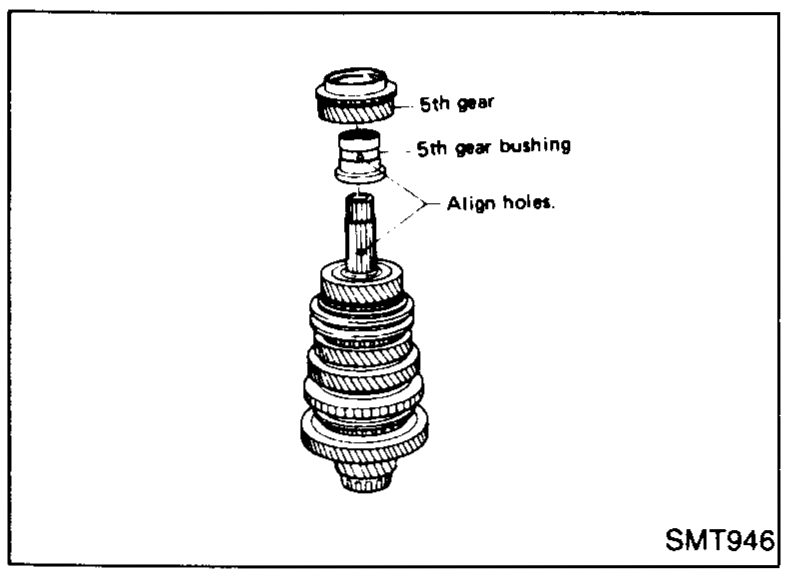

    Apply gear oil to inner and outer surface of 5th gear bushing, then install 5th gear bushing and 5th gear.
    Exploded view showing 5th gear and 5th gear bushing positioned for installation on the mainshaft. A callout indicates 'Align holes' for the bushing orientation.
    SMT946

3rd-4th synchronizer hub snap ring

32279-01B02
Thickness mm (in)2.0 (0.079)
32279-01B03
Thickness mm (in)2.1 (0.083)
