ASSEMBLY (Cont'd) (RS5F30A & RS5F31V)

MT-59prose procedure

Page applies to RS5F30A and RS5F31V transaxle variants with parallel sub-procedures.

Continued from MT-58

(Cont'd)

Assembly (continued) — RS5F30A

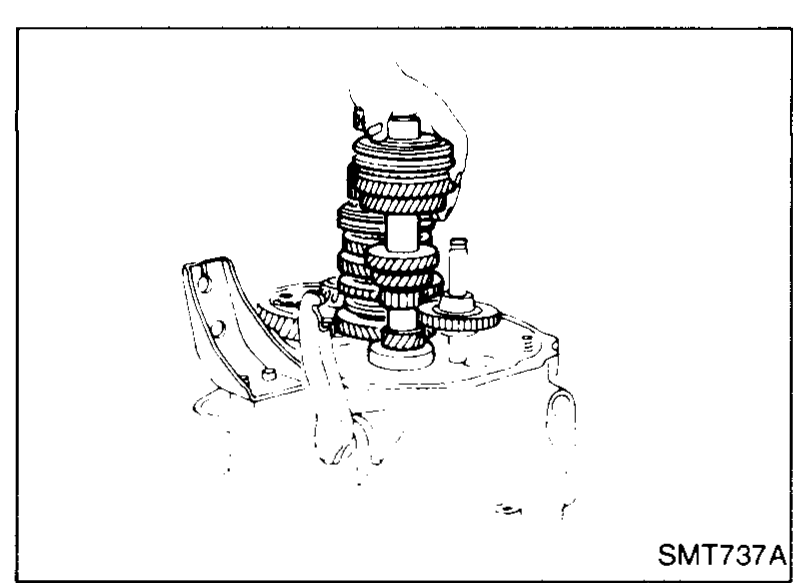

  1. 8b-rs5f30a
    Install mainshaft and input gear as a set.
    Take care not to damage oil seal lip with splines of input shaft while shaft is being inserted into clutch housing.
    Take care not to damage oil channel when inserting mainshaft into clutch housing.
    RS5F30A — mainshaft and input gear being installed as a set into the clutch housing, with care taken to protect the oil seal.
    SMT737A

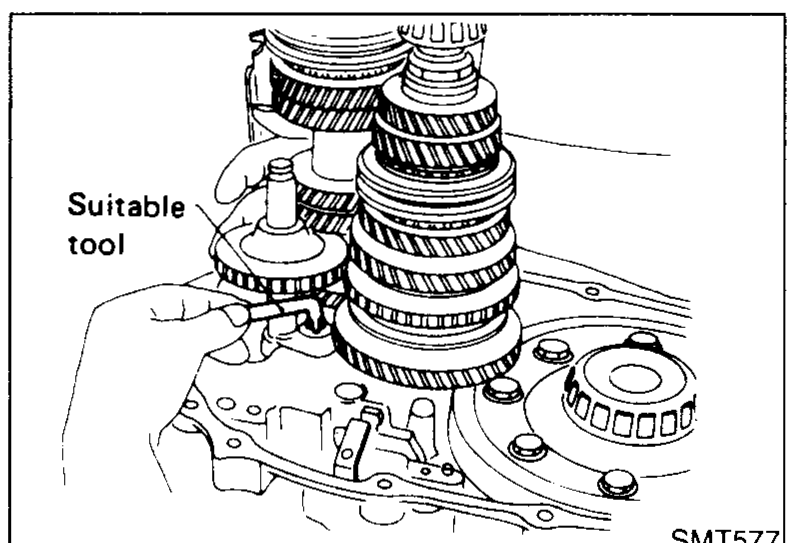

  2. 8c-rs5f30a
    Install bearing retainer.
    One of these three screws is torx type and should be installed with suitable tool, as shown.
    Suitable tool being used to install the bearing retainer screws (one of the three is torx type and requires a suitable tool).
    SMT577
  3. 8d-rs5f30a
    After installing torx screw, stake it at two points.
    Detail view showing the torx screw head with arrow pointing to two stake points to be staked after installation.
    SMT664

Assembly (continued) — RS5F31V

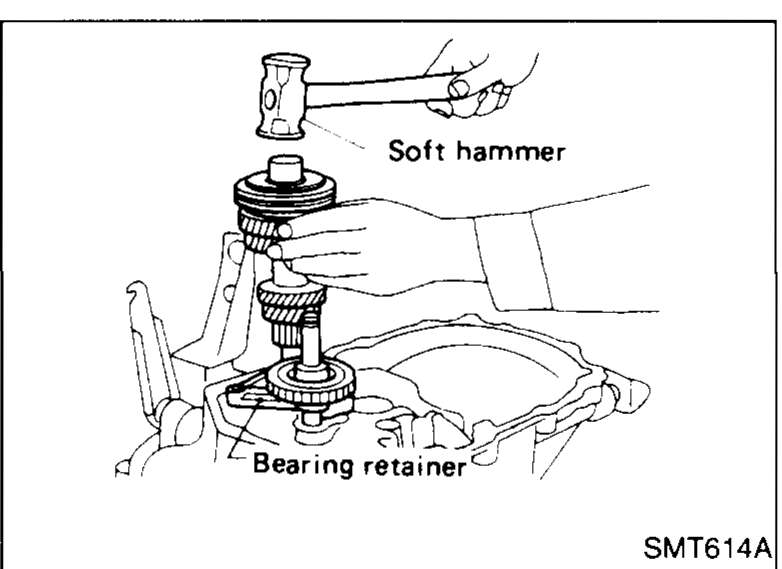

  1. 8a-rs5f31v
    Install input shaft assembly and reverse idler gear.
    Take care not to damage oil seal lip with splines of input shaft while shaft is being inserted into clutch housing.
    RS5F31V — soft hammer being used to drive the input shaft assembly down onto the bearing retainer in the clutch housing.
    SMT614A

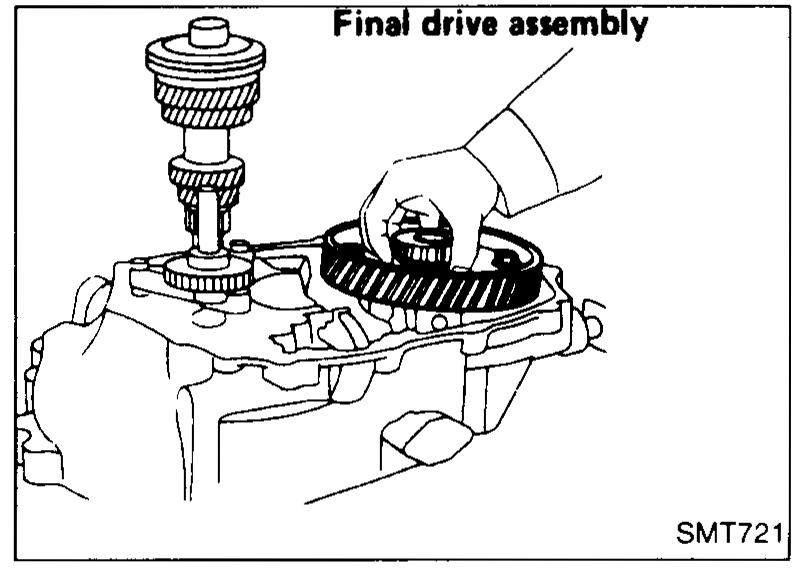

  2. 8b-rs5f31v
    Install final drive assembly.
    RS5F31V — installation of the final drive assembly into the clutch housing alongside the already-installed input shaft.
    SMT721
