REPAIR FOR COMPONENT PARTS — Input Shaft Front Bearing (RS5F41A)

MT-18prose procedure

Page applies to RS5F41A transaxle only.

Input Shaft Front Bearing

Input shaft front bearing

  1. 1
    Remove snap ring.

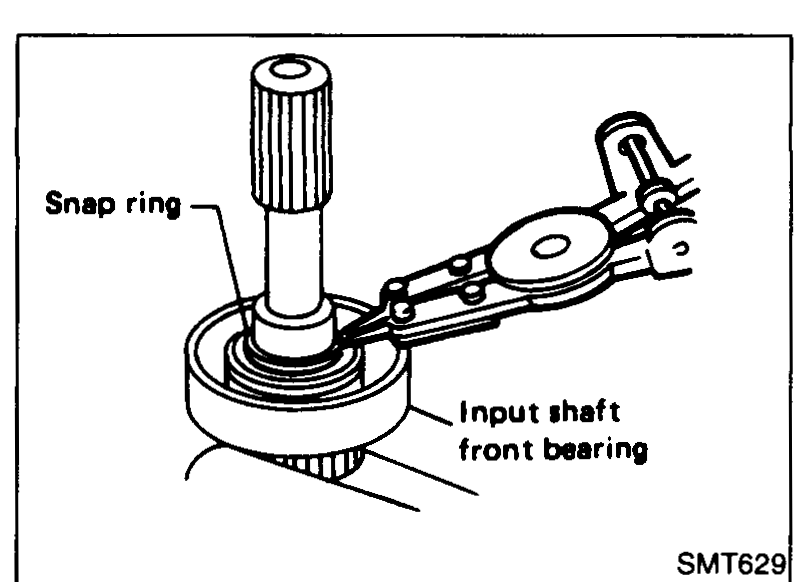

    Input shaft held in a vise/fixture with snap ring being removed from above the input shaft front bearing using pliers.
    SMT629
  2. 2
    Pull out input shaft front bearing.

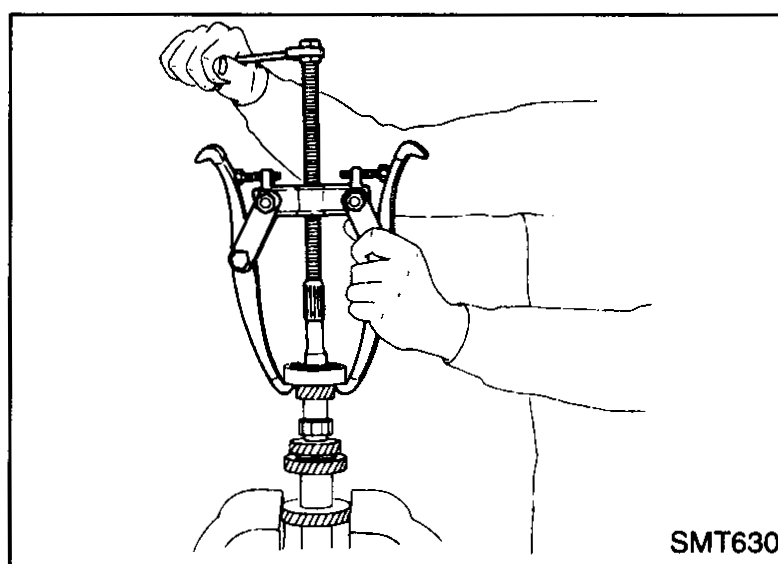

    Bearing puller fitted to the input shaft and tightened to pull off the input shaft front bearing.
    SMT630
  3. 3
    Press fit new ball bearing.

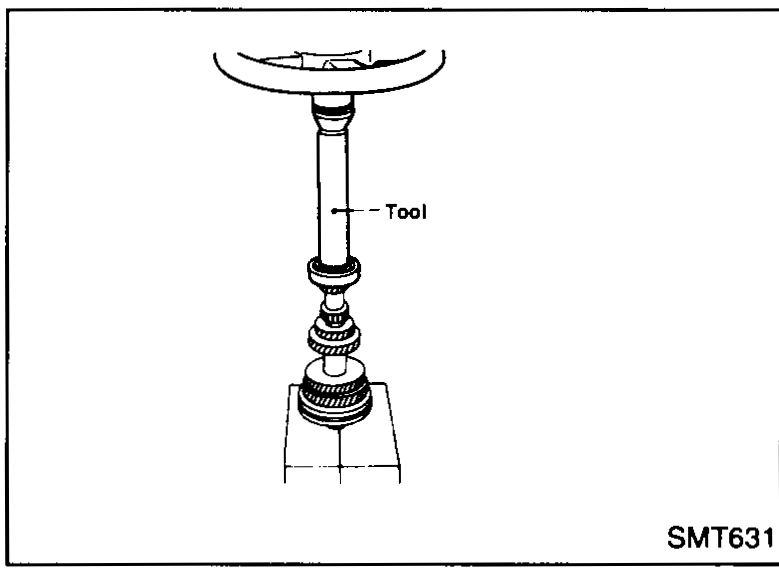

    Special tool / press jig being used to press fit a new ball bearing onto the input shaft.
    SMT631
  4. 4
    Install input gear spacer on front bearing and secure it with snap ring of proper thickness that will minimize clearance of groove in input shaft.
    Allowable clearance of groove: 0 - 0.13 mm (0 - 0.0051 in)

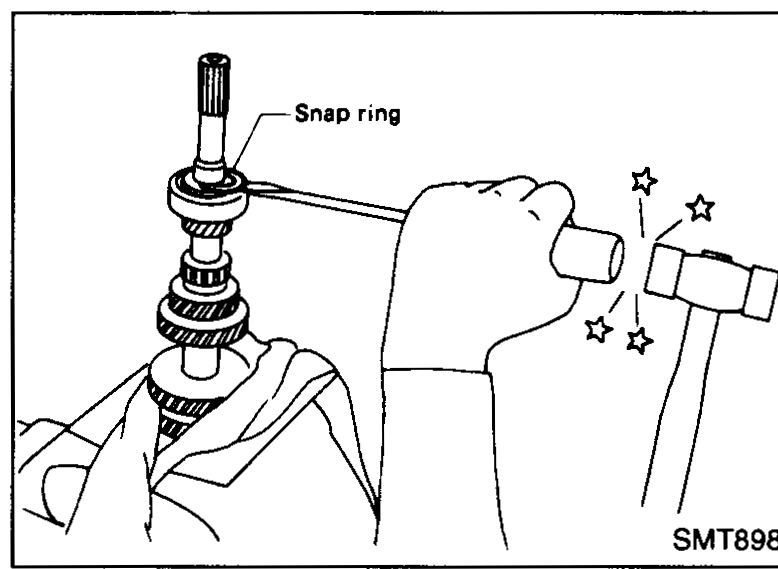

    Snap ring being installed on input shaft above the input gear spacer; star markers indicate mating points / tap with hammer for seating.
    SMT898
Allowable clearance of groove
0 - 0.13mm (0 - 0.0051 in)

Input shaft front snap ring

32204-01B01
Thickness mm (in)1.65 (0.0650)
32204-01B02
Thickness mm (in)1.75 (0.0689)
32204-01B03
Thickness mm (in)1.85 (0.0728)
