ASSEMBLY (RS5F41A)

MT-31prose procedure

Page applies to RS5F41A transaxle only.

Transaxle assembly

  1. 1
    Apply sealant to welch plug and install it on clutch housing.

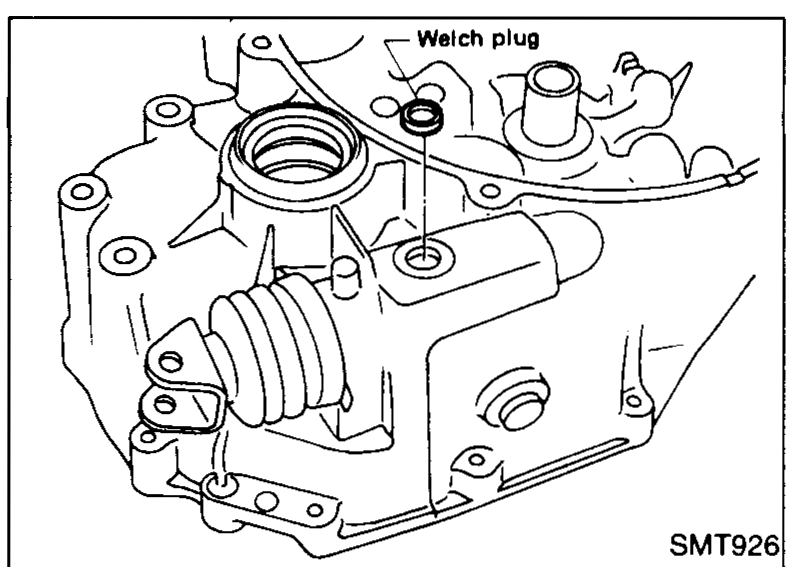

    Clutch-housing interior with the welch plug being installed; callout 'Welch plug'.
    SMT926
  2. 2
    Install striking lever and change shift lever.

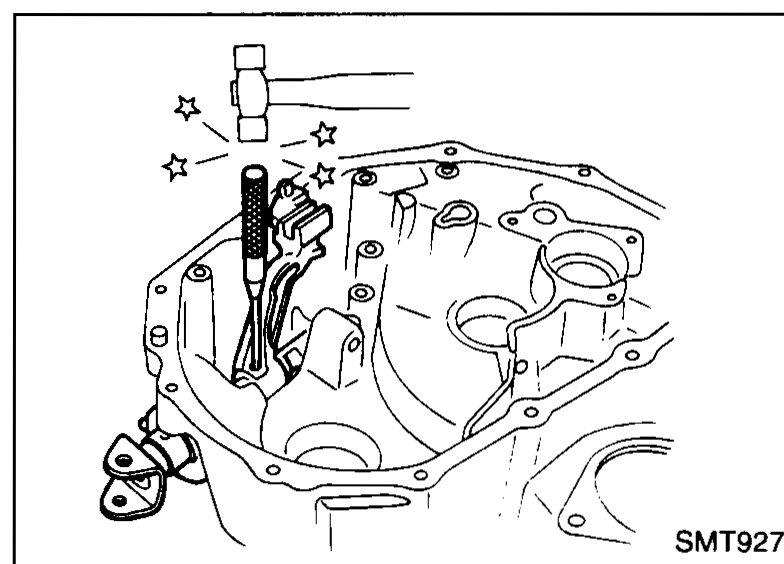

    Installation of striking lever and change shift lever into the clutch housing; star markers and arrow indicate engagement points.
    SMT927
  3. 3
    Install select shifter and retaining pin.

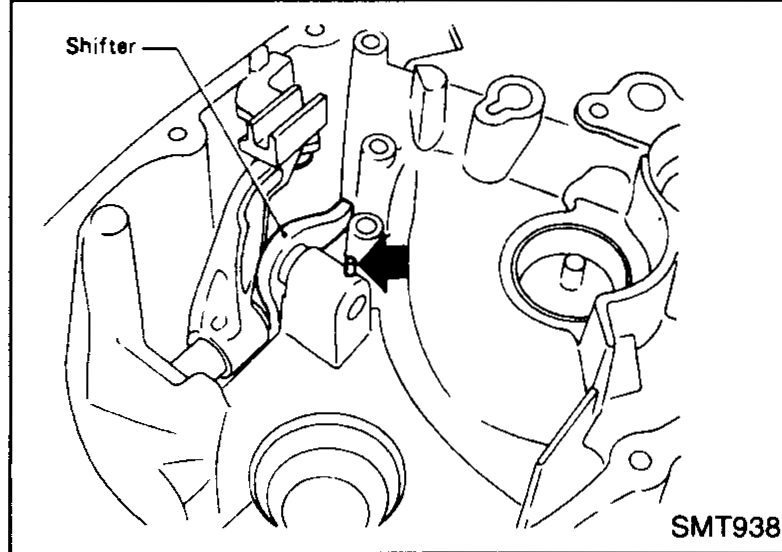

    Select shifter installed inside the clutch housing; arrow shows retaining pin being driven in.
    SMT938
  4. 4
    Attach shift fork assembly to mainshaft.
    Shift fork assembly being attached to the mainshaft; gears visible on the shaft.
    SMT950
  5. 5
    Determine thickness of shims to be used when clutch housing, transmission case, mainshaft, differential case or taper roller bearing is replaced. Refer to "Adjustment".
  6. 6
    Wrap a tape around splines of input shaft to avoid damaging oil seal.

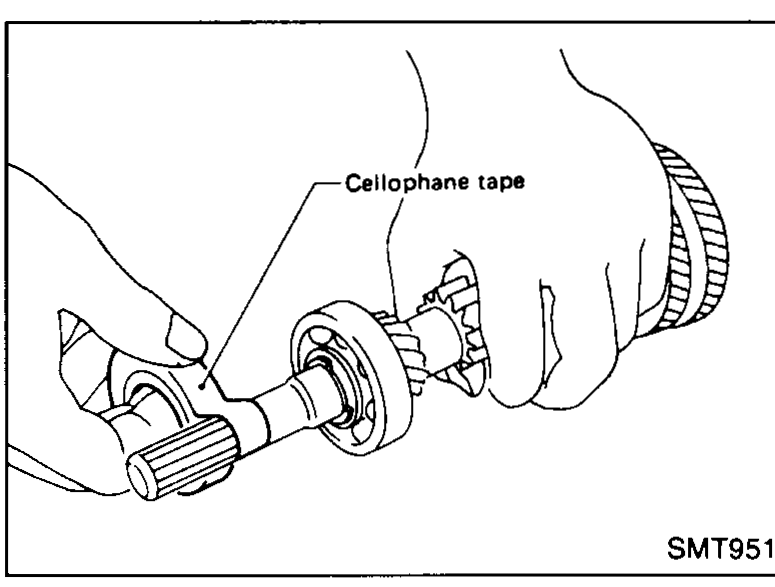

    Hands wrapping cellophane tape around the splines of the input shaft to avoid damaging the oil seal during installation.
    SMT951
