Transaxle assembly (continued)

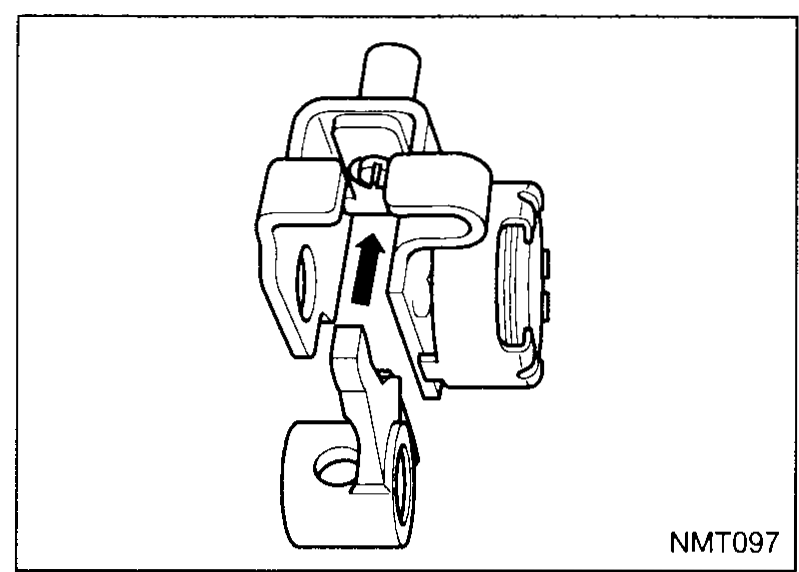

  1. 9
    Insert the engagement finger in the interlock key.
    Close-up of the shift interlock key with the engagement finger being inserted into its slot. The finger and the interlock-key body are shown in isolation against a black background.
    NMT097

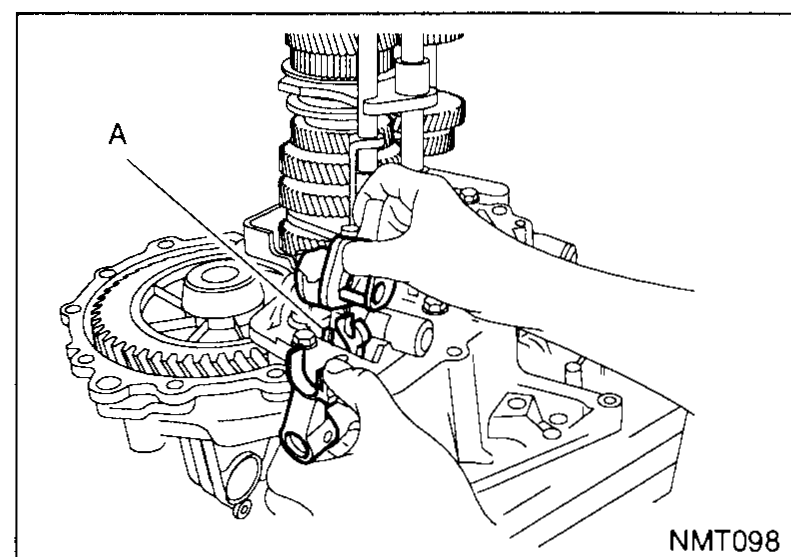

  2. 10
    Install the assembly by simultaneously engaging the finger on the fork shaft lugs A.
    Transaxle case with the mainshaft / shift-fork assembly installed; an arrow labelled 'A' points to the lugs on the shift-fork shaft where the engagement finger must simultaneously engage during installation.
    NMT098
  3. 11
    Install the spring, the new shaft seal pre-greased on the inside and the engagement shaft.
    Engagement-shaft area of the case. A short coil spring is held above the bore by a curved arrow indicating its insertion path; the new shaft seal sits on the engagement shaft ready to be pressed into the case bore.
    NMT099

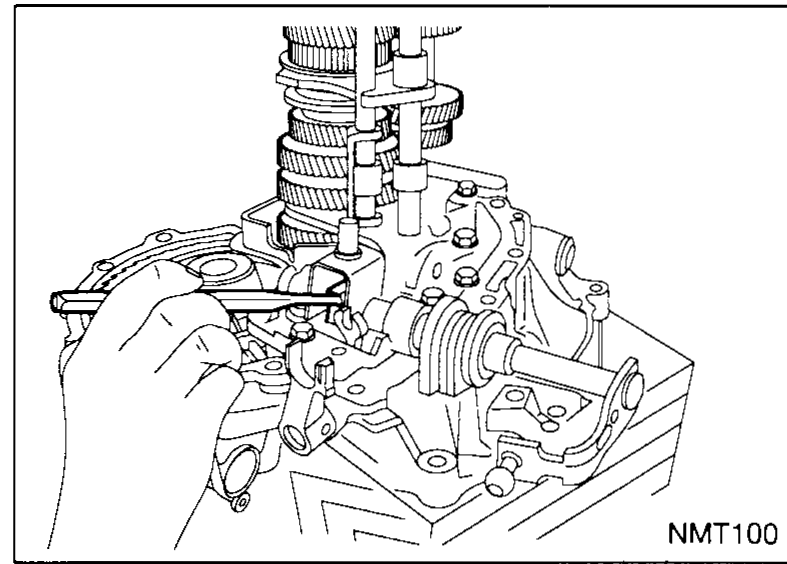

  4. 12
    Install a new retaining pin to secure the finger on the engagement shaft.
    The engagement finger on the shaft being secured by a new roll pin (retaining pin) driven through the cross-bore of the finger and shaft. An arrow points to the roll-pin insertion location.
    NMT100

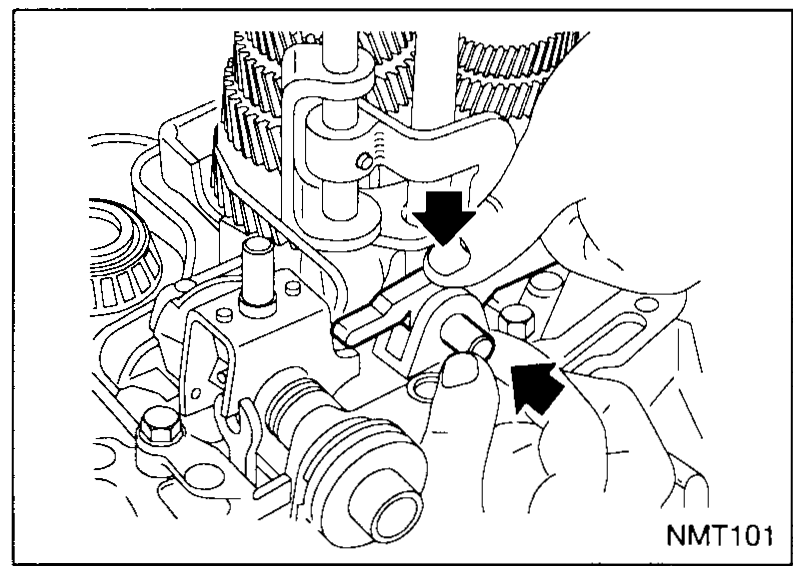

  5. 13
    Install the reverse fork with its shaft.
    Transaxle case with the reverse-idler / reverse fork being installed on its shaft. Two black arrows mark the points where the fork engages the reverse idler gear.
    NMT101
