REPAIR FOR COMPONENT PARTS — Clutch Housing and Transmission Case (RS5F41A)

MT-15prose procedure

Page applies to RS5F41A transaxle only.

Clutch Housing and Transmission Case

Input shaft oil seal

Input shaft oil seal — remove and install

  1. 1

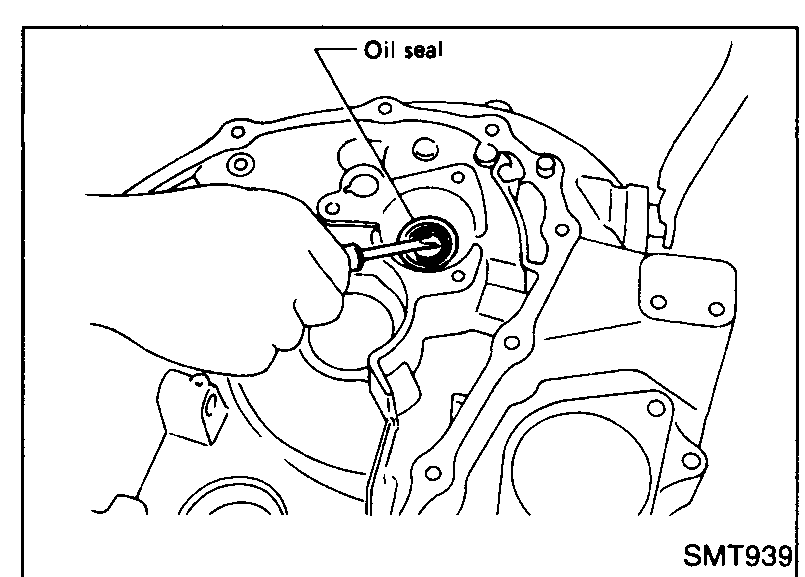

    Remove input shaft oil seal from clutch housing.
    Removing the input shaft oil seal from the clutch housing using a pick/hook tool.
    SMT939
  2. 2

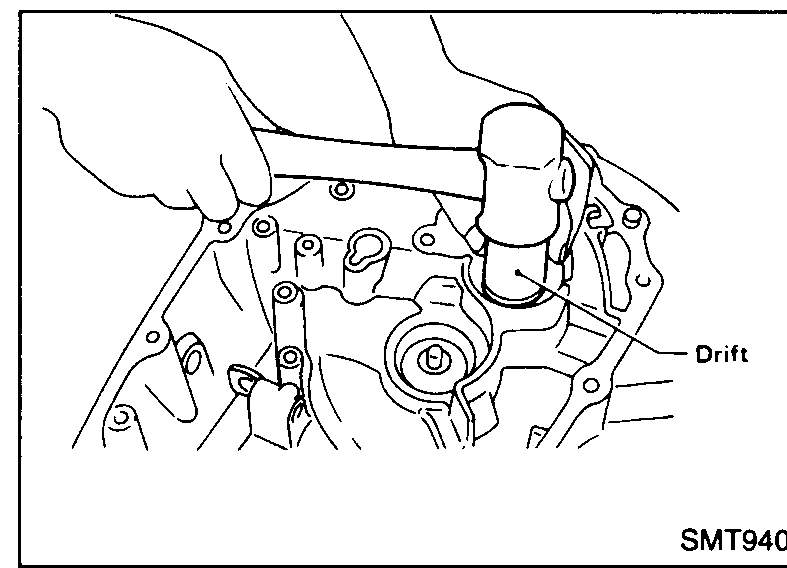

    Install new input shaft oil seal using a drift.
    Installing a new input shaft oil seal into the clutch housing using a drift and hammer.
    SMT940

Clutch control shaft oil seal

Clutch control shaft oil seal — remove and install

  1. 1

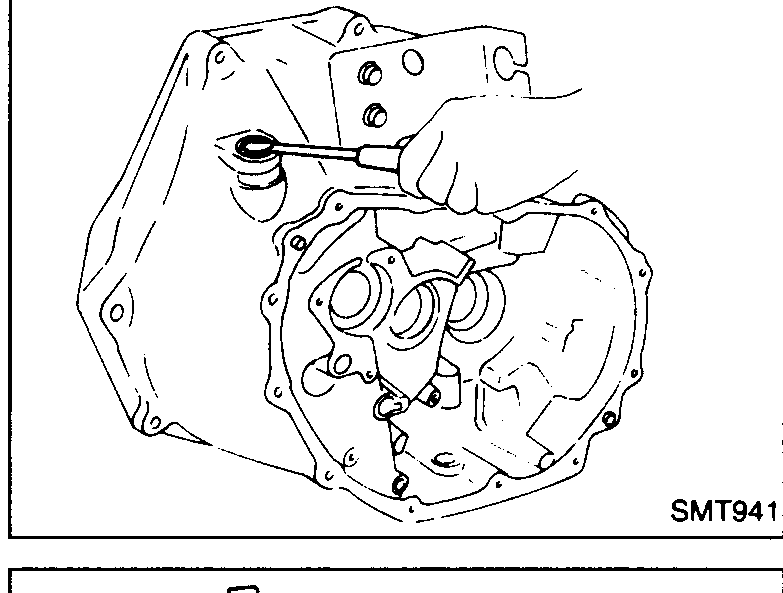

    Remove clutch control shaft oil seal.
    Removing the clutch control shaft oil seal from the clutch housing using a pick/hook tool.
    SMT941
  2. 2
    Install new clutch control shaft oil seal using a drift.
    Installing a new clutch control shaft oil seal using a drift; star marker indicates installation orientation/face.
    SMT942

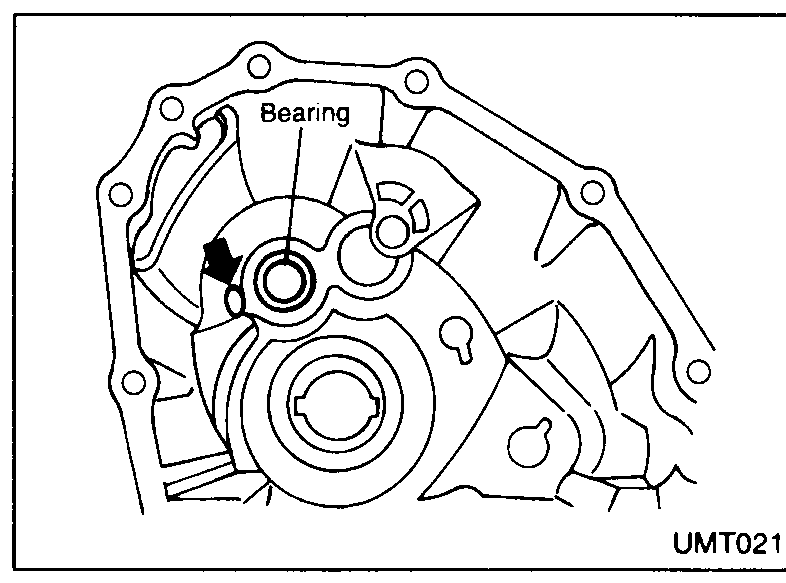

Input shaft rear bearing

Remove welch plug from transmission case to detach input shaft rear bearing.
