REPAIR FOR COMPONENT PARTS — Input Shaft and Gears (RS5F30A & RS5F31V)

MT-41prose procedure

Page applies to RS5F30A and RS5F31V transaxle variants.

Input Shaft and Gears

DISASSEMBLY

Input shaft disassembly

  1. 1
    Before disassembly, check 5th input gear end play.
    If not within specification, disassemble and check contact surface of gear, shaft and hub. Then check clearance of snap ring groove — Refer to "Assembly".

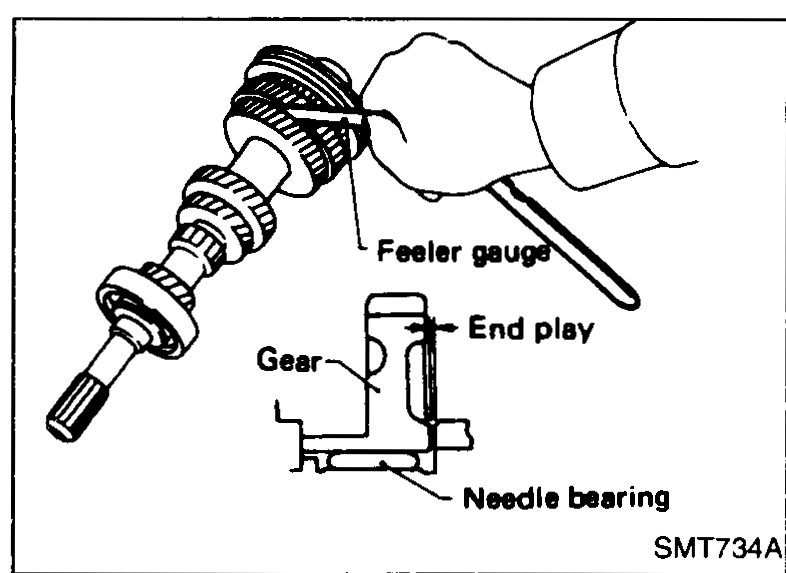

    Feeler gauge being inserted between 5th input gear and adjacent face to measure 5th input gear end play; needle bearing and gear are called out.
    SMT734A
  2. 2
    Remove snap ring and 5th stopper.
  3. 3
    Remove 5th synchronizer, 5th input gear and 5th gear needle bearing.

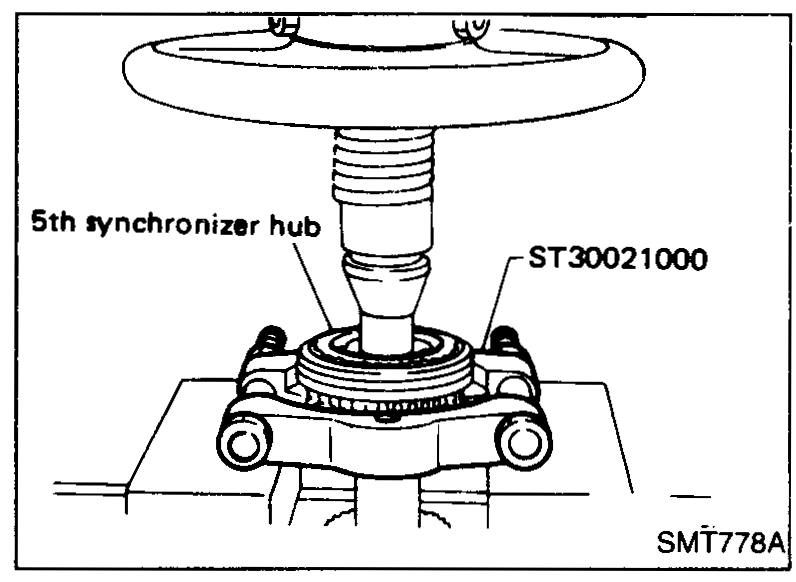

    Special tool ST30021000 (puller/press) being used on the input shaft to remove the 5th synchronizer hub assembly along with 5th input gear and 5th gear needle bearing.
    SMT778A
  4. 4
    Remove snap ring of input shaft front bearing and input gear spacer.

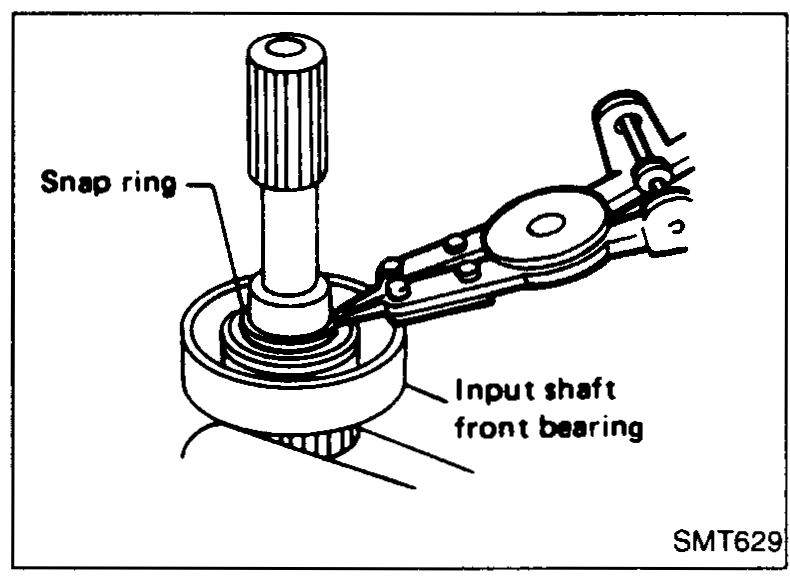

    Snap-ring pliers removing the snap ring above the input shaft front bearing on the input shaft; snap ring and input shaft front bearing are called out.
    SMT629
  5. 5
    Pull out input shaft front bearing.

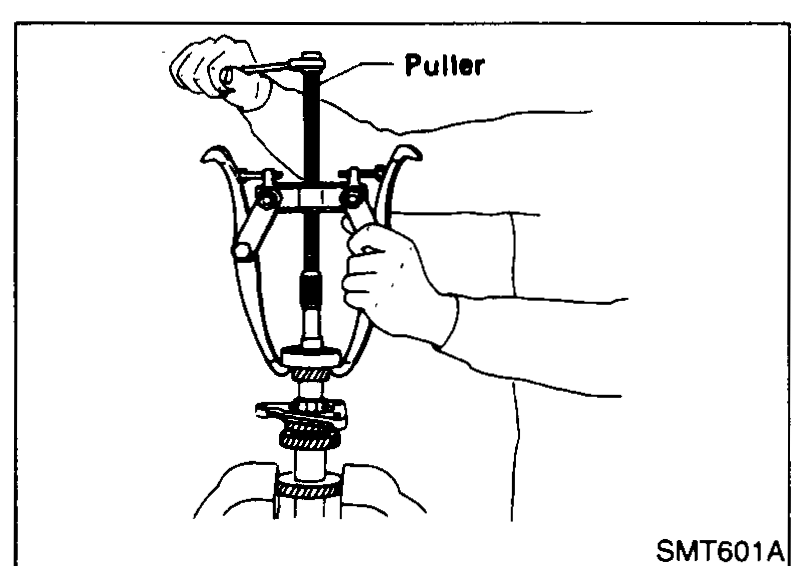

    Two-jaw bearing puller being used to pull the input shaft front bearing off the shaft.
    SMT601A
  6. 6
    Remove bearing retainer.
5th input gear
End play mm (in)0.18 - 0.31 (0.0071 - 0.0122)
