REPAIR FOR COMPONENT PARTS — Final Drive (Cont'd) (RS5F41A)

MT-26prose procedure

Page applies to RS5F41A transaxle only.

Continued from MT-25

Final Drive (Cont'd)

ASSEMBLY

Final drive assembly

  1. 1

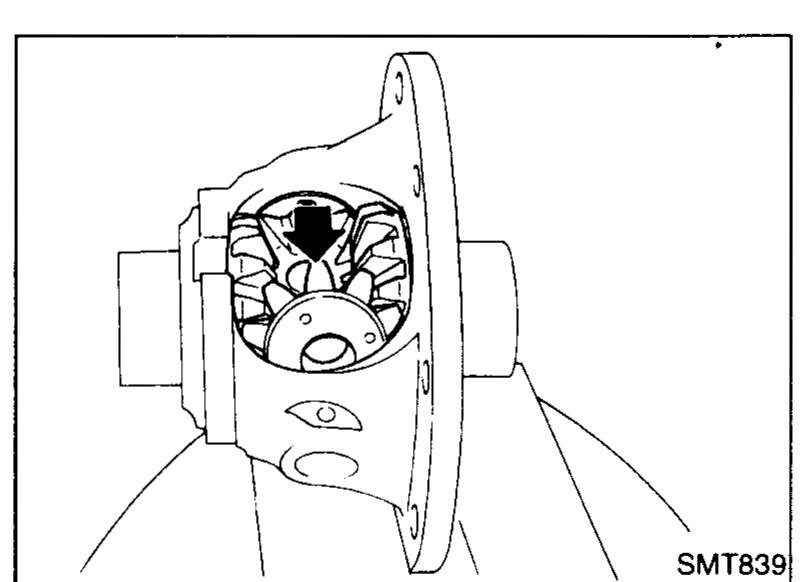

    Fit side gear thrust washers and side gears, then install pinion mate washers and pinion mate gears in place.
    Open differential case viewed from the top with side gear thrust washers and side gears installed, and pinion mate washers/pinion mate gears positioned for assembly.
    SMT839
  2. 2

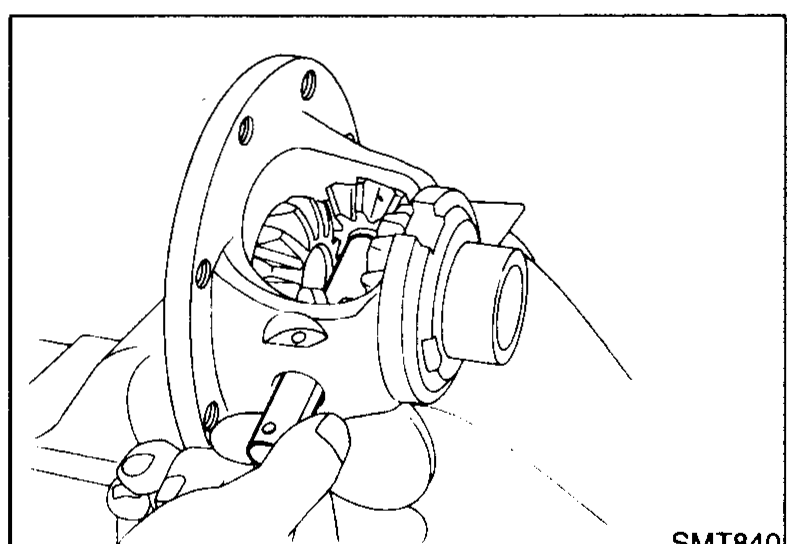

    Insert pinion mate shaft.
    When inserting, be careful not to damage pinion mate washers.
    Side view of the differential with the pinion mate shaft being inserted through the case.
    SMT840
  3. 3
    Measure clearance between side gear and pinion mate gear, referring to "Inspection". If necessary, adjust.
    Side gear to pinion mate clearance: 0 - 0.3 mm (0 - 0.012 in).
    Side gear thrust washer: Refer to S.D.S.
  4. 4

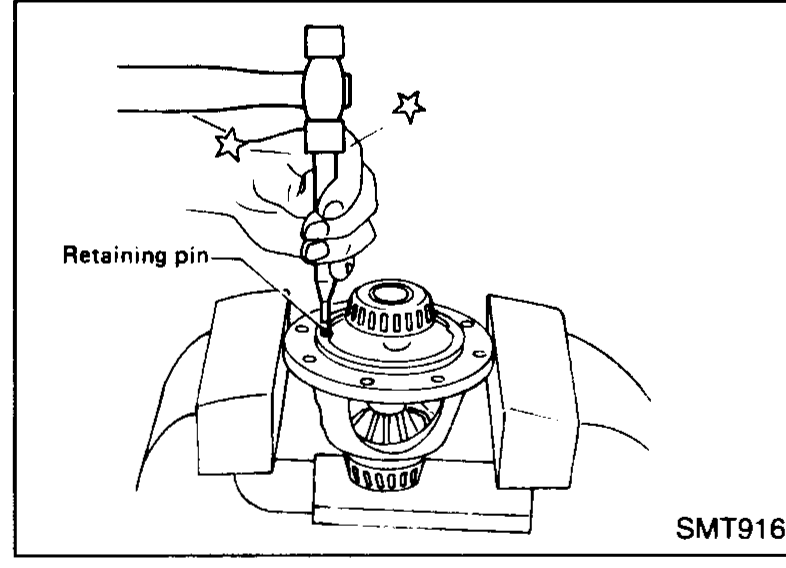

    Install pinion mate shaft lock pin using a punch.
    Make sure that lock pin is flush with case.
    Pin punch and hammer being used to install the pinion mate shaft lock pin; callout 'Retaining pin'. Star markers show strike point.
    SMT916
  5. 5
    Install final gear.
    Installing the final gear onto the differential case; hands aligning bolts.
    SMT620
  6. 6
    Install speedometer drive gear and stopper.
  7. 7
    Install differential side bearing inner race.

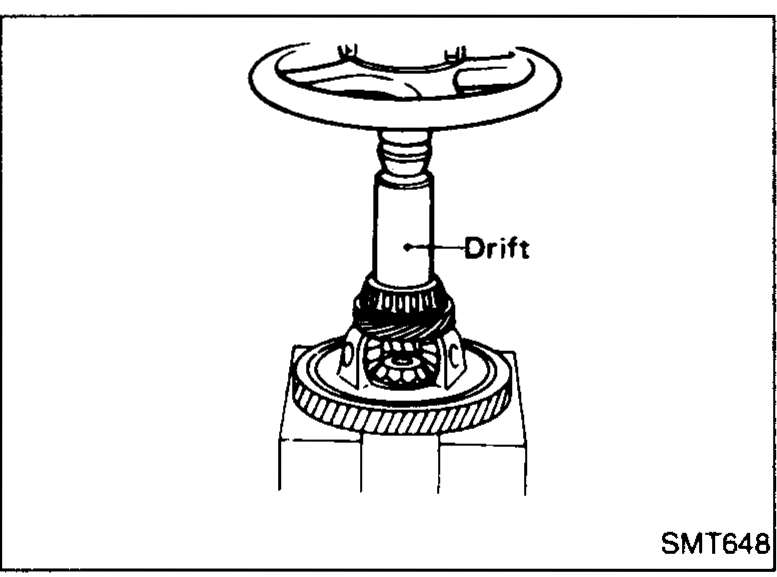

    Differential assembly with a drift being used to install the differential side bearing inner race.
    SMT648
Side gear to pinion mate clearance
0 - 0.3mm (0 - 0.012 in)
