REPAIR FOR COMPONENT PARTS — Case Components (Cont'd) (RS5F30A & RS5F31V)

MT-55prose procedure

Page applies to RS5F30A and RS5F31V transaxle variants.

Continued from MT-54

Case Components (Cont'd)

Input shaft rear bearing (continued)

  1. 4
    Install input shaft rear bearing.
    Special tool KV38102100 (bearing installer) being used through the transmission case to install the input shaft rear bearing.
    SMT635

Mainshaft front bearing outer race and oil channel

  1. 1
    Remove mainshaft front bearing outer race.
    Special tool ST33290001 (puller) being used inside the clutch housing to remove the mainshaft front bearing outer race and the oil channel.
    SMT636
  2. 2
    Remove oil channel.
  3. 3
    Install oil channel.
    Ensure that oil groove in oil channel always faces toward oil pocket when installing it on clutch housing.

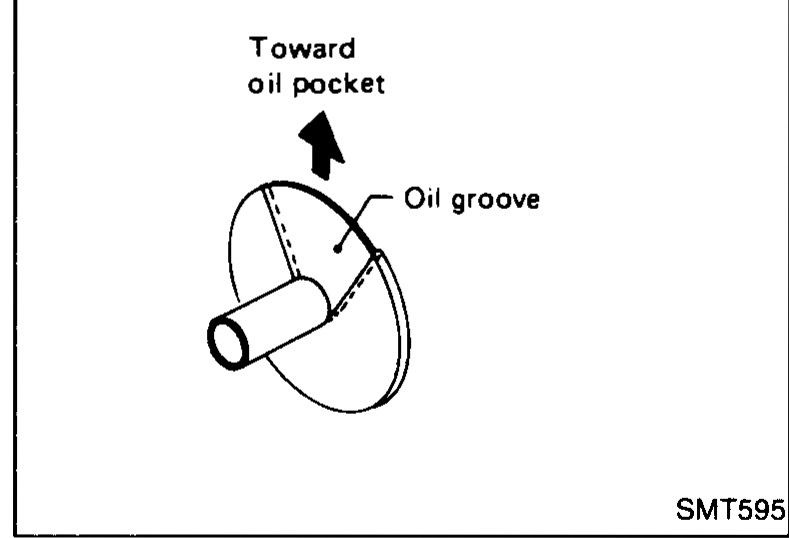

    Detail view of oil channel with arrow showing the oil groove orientation — must face toward the oil pocket when installed on clutch housing.
    SMT595
  4. 4
    Install mainshaft front bearing outer race.

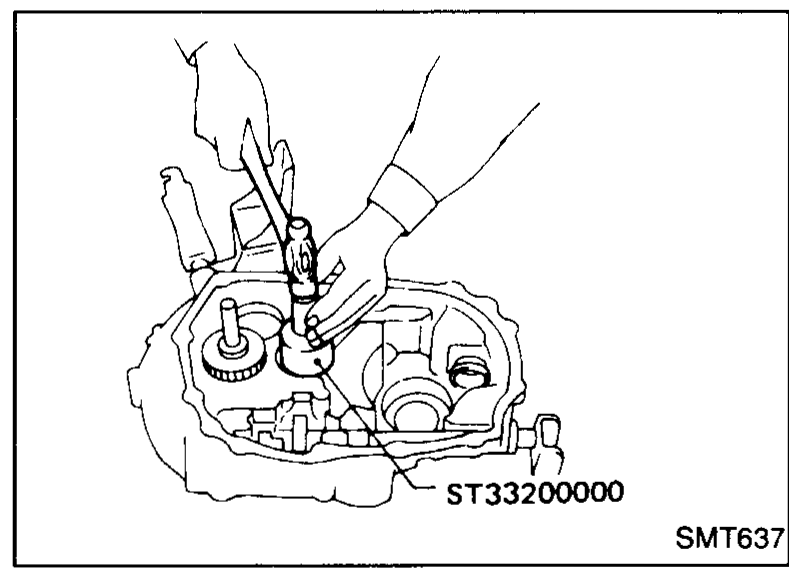

    Special tool ST33200000 (installer) being used to install the mainshaft front bearing outer race into the clutch housing.
    SMT637

Mainshaft rear bearing outer race

Differential side bearing outer race
