REPAIR FOR COMPONENT PARTS — Final Drive (RS5F41A)

MT-25prose procedure

Page applies to RS5F41A transaxle only.

Final Drive

DISASSEMBLY

Final drive disassembly

  1. 1

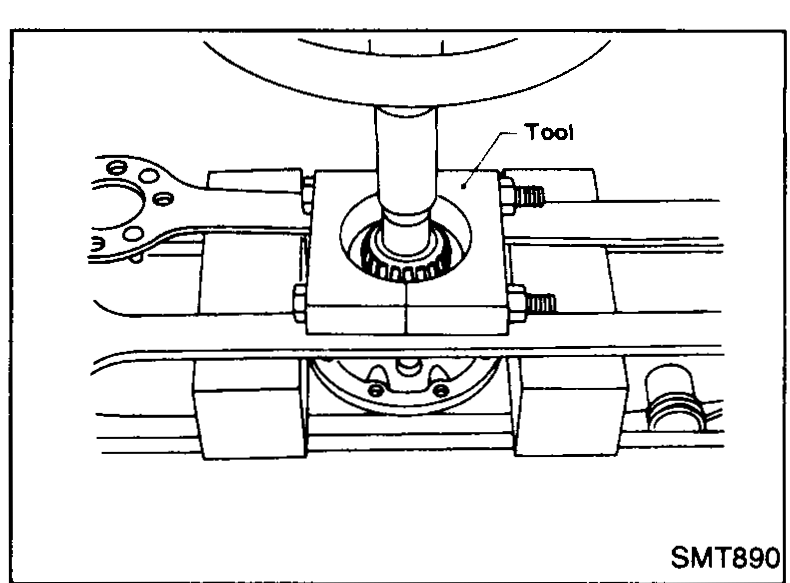

    Drive out differential side bearing inner races.
    Be careful not to mix up the right and left bearings.
    Differential case in fixture; a special tool ('Tool') is being used to drive out the differential side bearing inner races.
    SMT890
  2. 2

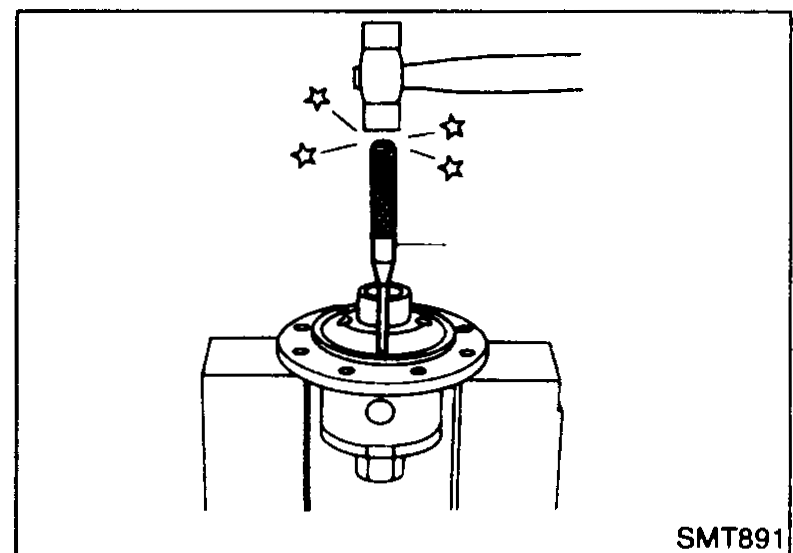

    Drive out pinion mate shaft lock pin and draw out pinion mate shaft.
    Hammer and pin punch being used to drive out the pinion mate shaft lock pin from the differential case; star markers indicate the strike point.
    SMT891

INSPECTION

Final drive inspection

  1. 1

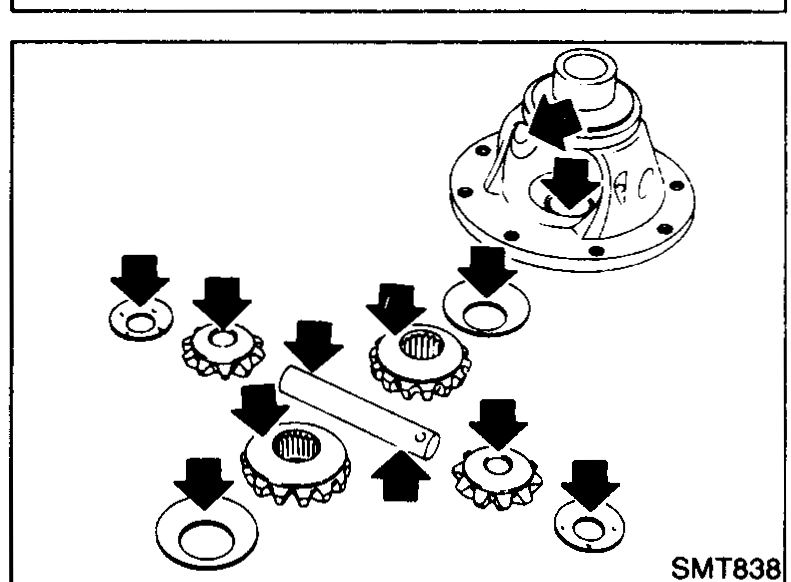

    Check mating surfaces of differential case, side gears and pinion mate gears.
    Top-down view of the opened differential showing side gears and pinion mate gears arranged around the case. Arrows point at the mating surfaces (case, side gears, pinion mate gears) to be checked.
    SMT838
  2. 2

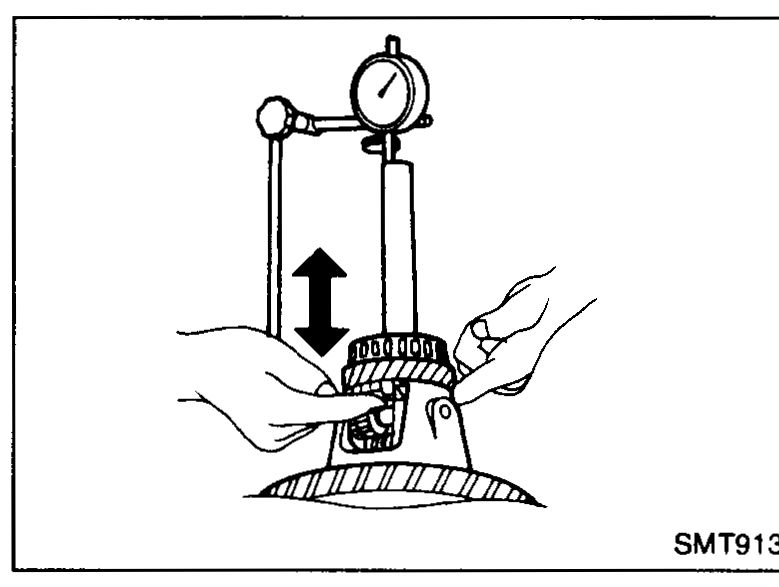

    Check clearance between side gear and pinion mate gear following the procedure below.
    (1) Set Tool and dial gauge on side gear.
    (2) Move side gear up and down to measure dial gauge deflection. Always measure gauge deflection on both side gears.
    Side gear to pinion mate clearance: 0 - 0.3 mm (0 - 0.012 in).
    (3) If clearance exceeds the specified value, check for wear and replace necessary parts.
    Differential case held in a fixture with special tool KV38106100 and a dial gauge installed on the side gear to measure clearance between side gear and pinion mate gear.
    SMT912
  3. 3
    Check tapered roller bearings for wear, scratches, pitching or flaking.
Side gear to pinion mate clearance
0 - 0.3mm (0 - 0.012 in)
