DISASSEMBLY

MT-5014prose procedure
Continued from MT-5013

Transaxle disassembly (continued)

  1. 18

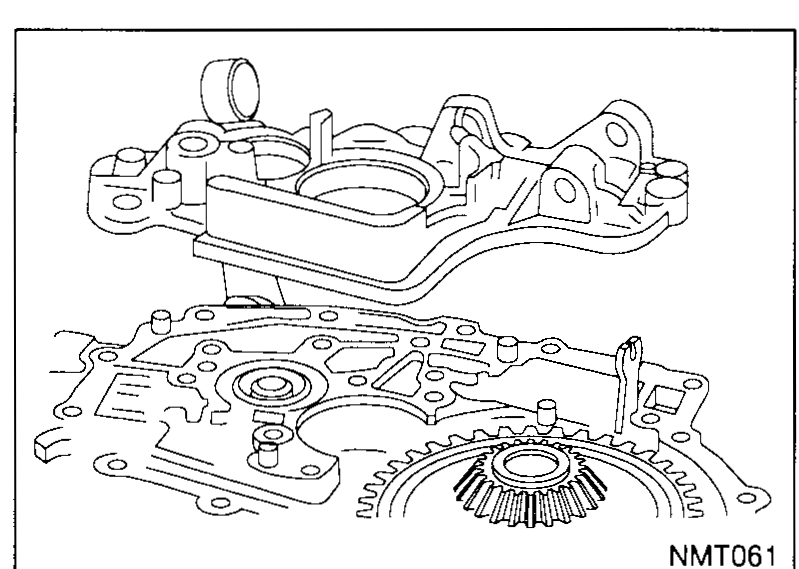

    Remove the intermediate plate.
    Intermediate plate being lifted from the transaxle housing, exposing the final-drive ring gear underneath.
    NMT061
  2. 19

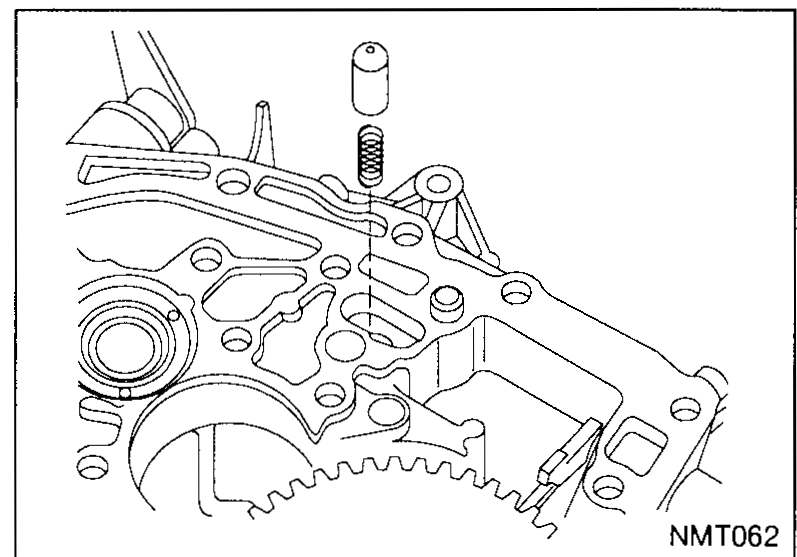

    Remove reverse fork locking finger and spring.
    Close-up of the reverse fork locking finger and its spring projecting from the transaxle case bore; the final-drive ring gear is visible below.
    NMT062
  3. 20
    Remove final drive.
