Transaxle assembly

  1. 1
    Install selection lever and shaft with a new retaining pin.
    Transaxle case interior viewed from above with the selection lever and shaft separated to the right and a new roll pin / retaining pin shown alongside. Dashed lines indicate the insertion path of the shaft into its bore in the case.
    NMT094
  2. 2
    Install the differential, spring and reverse fork locking finger.
    Transaxle case showing the differential ring-gear seated, with a small coil spring and the reverse-fork locking finger / detent installed in their bore above the diff. Inner casting ribs and bearing bores are visible around them.
    NMT062
  3. 3
    Apply liquid sealant to the mating surface of the intermediate plate.

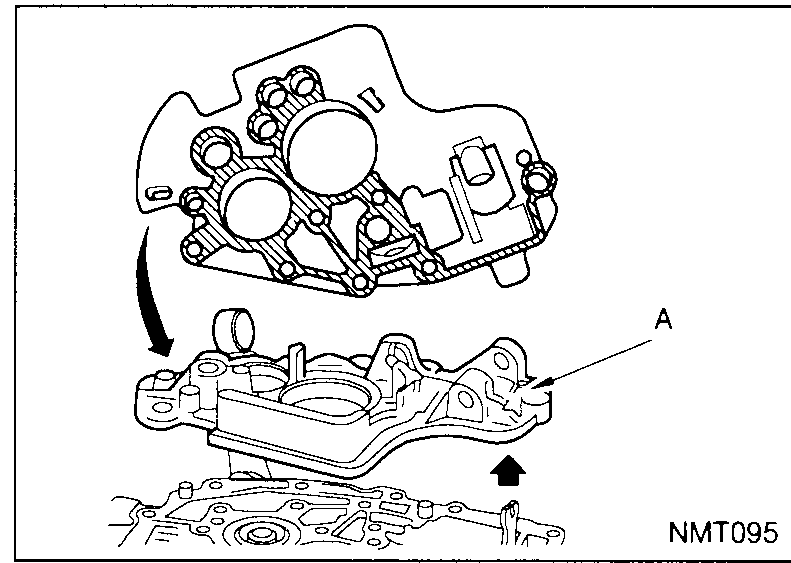

    Intermediate plate (shift-fork support plate) being lowered into place onto the case; a black arrow points to the matching passage / slot, and the letter 'A' labels the passage through which the selection fork must fit. A curved arrow shows the seating motion.
    NMT095
  4. 4
    Install the intermediate plate, note that the selection fork fits through passage A.
  5. 5
    Tighten the intermediate plate bolts to the specified torque.
  6. 6
    Attach shift fork assembly to mainshaft.

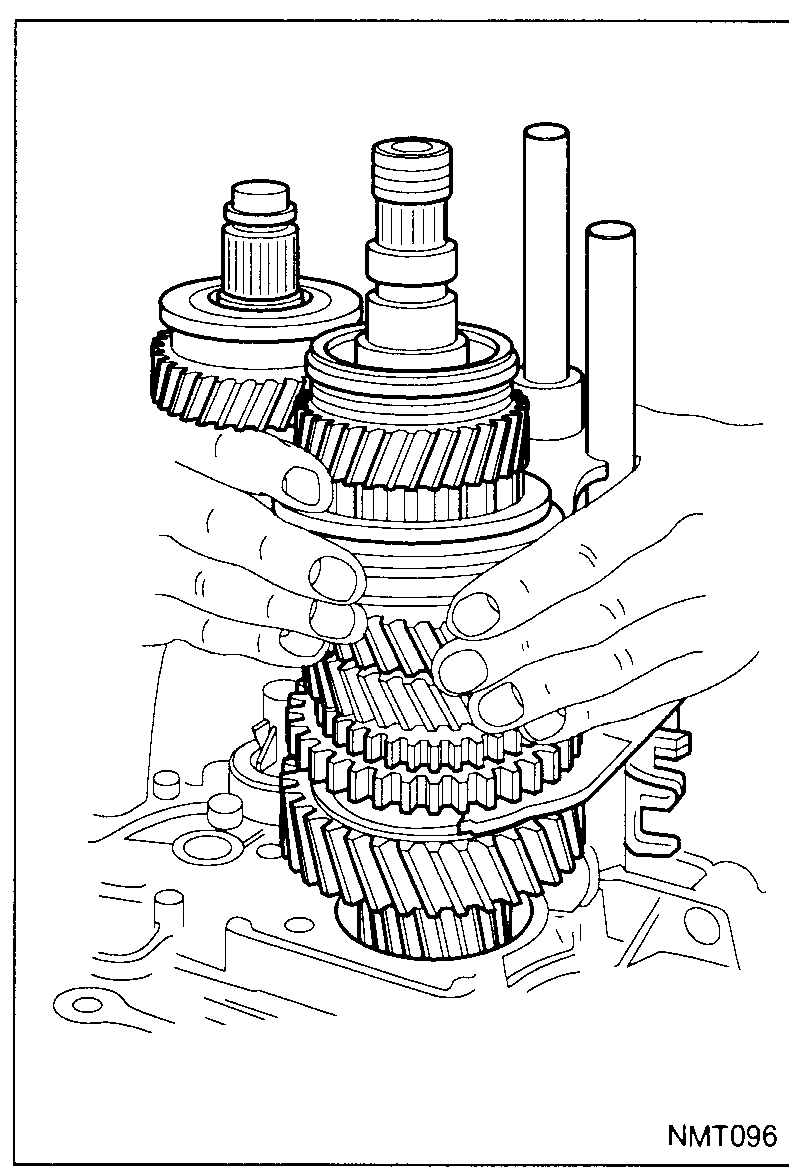

    Mainshaft + input-shaft assembly with shift-fork rods and forks attached, being lowered by hand into the transaxle case. The shift forks engage with the synchronizer sleeves on both shafts.
    NMT096
  7. 7
    Couple the mainshaft with the input shaft.
  8. 8
    Install the complete assembly into the casing.
