DISASSEMBLY (RS5F41A)

MT-12prose procedure

Page applies to RS5F41A transaxle only.

Transaxle disassembly

  1. 1

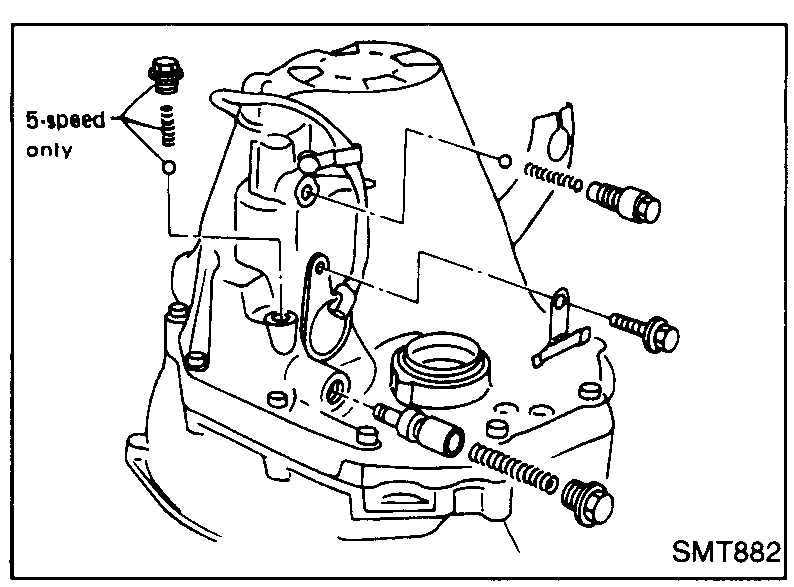

    Before removing transaxle case, remove bolts and plugs shown below.
    Top bolt is 5-speed only.
    Transaxle case exterior with bolts and plugs to be removed before separating the case. A '5-speed only' callout points to one bolt at the top.
    SMT882
  2. 2

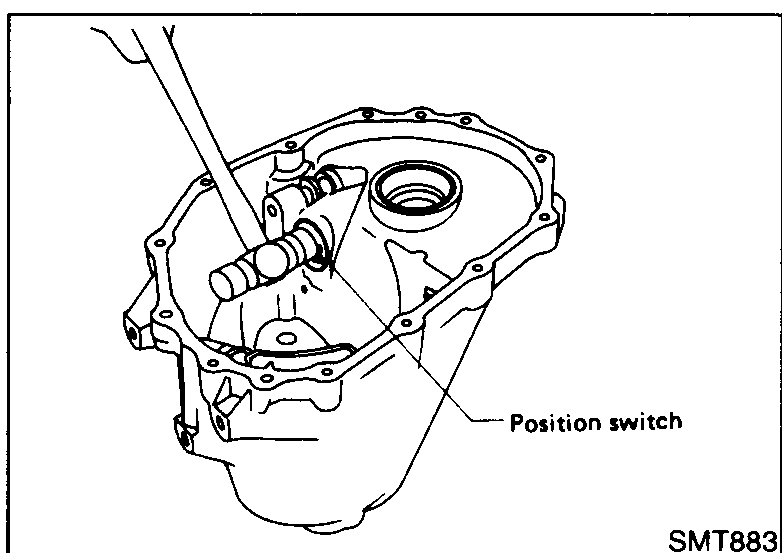

    Remove position switch.
    Top view of transaxle case with the position switch indicated for removal.
    SMT883
  3. 3

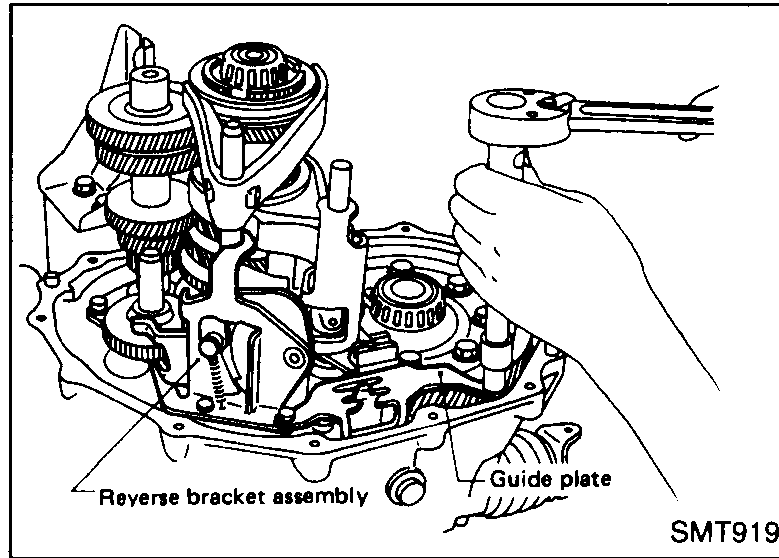

    Take off transmission case, then remove guide plate and reverse bracket assembly.
    Mechanic removing the guide plate and reverse bracket assembly from the transmission case after splitting it.
    SMT919
  4. 4

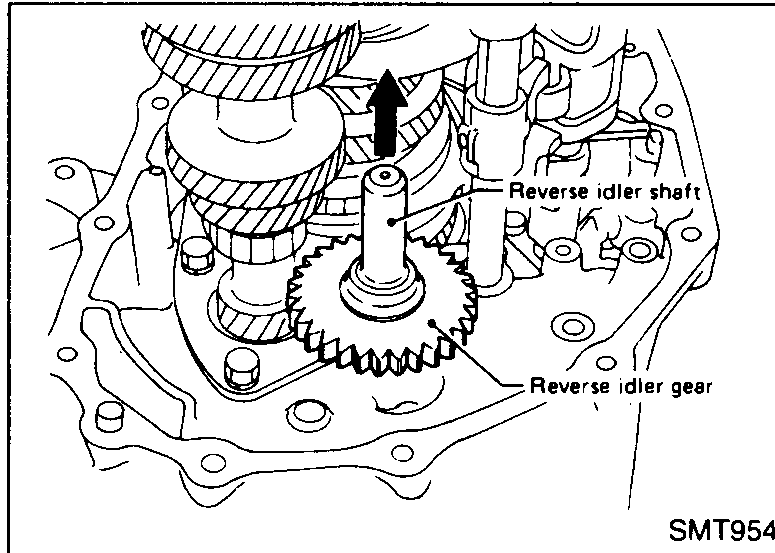

    Remove reverse idler gear and shaft.
    Reverse idler gear and shaft being lifted out of the transaxle; arrow indicates upward removal direction.
    SMT954
  5. 5

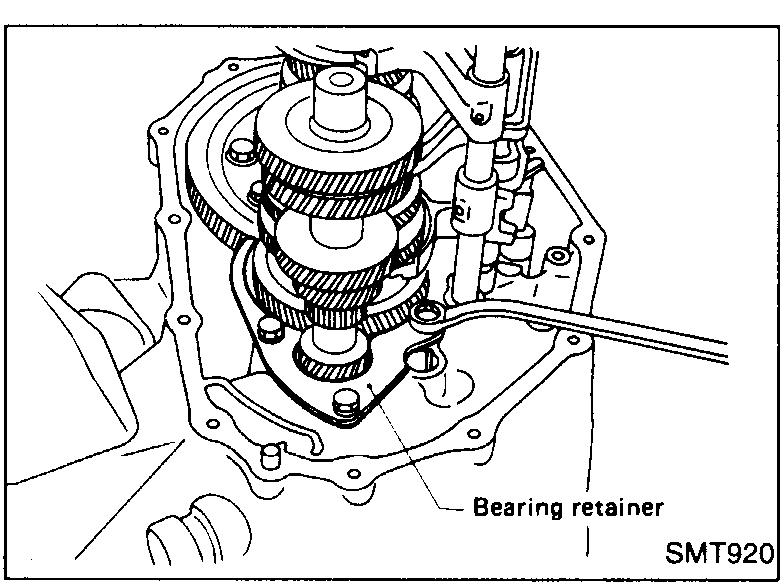

    Remove bearing retainer.
    Bearing retainer being removed from the transaxle case with a tool.
    SMT920
