DISASSEMBLY

MT-5013prose procedure
Continued from MT-5012

Transaxle disassembly (continued)

  1. 12
    Remove reverse fork shaft and reverse fork.

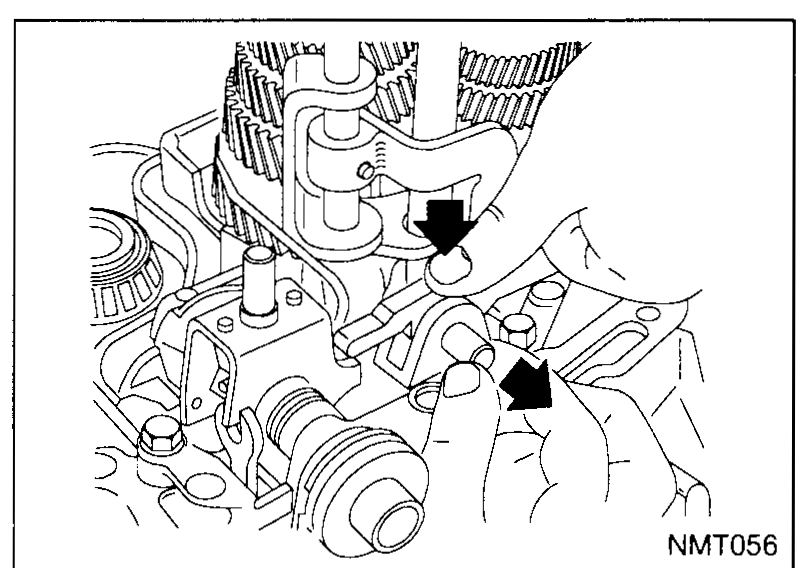

    Close-up of the transaxle internals showing the reverse fork shaft and reverse fork. Two arrows point to the fork shaft and fork retainer locations being removed.
    NMT056
  2. 13
    Engage 2nd gear.
    View of the engagement finger area with the 2nd gear engaged. A drift/punch is shown driving the retaining pin of the engagement finger outwards from the transaxle case.
    NMT057
  3. 14
    Drift out the retaining pin of the engagement finger towards the outside of the transaxle.
  4. 15
    Remove the engagement shaft, seal and spring.

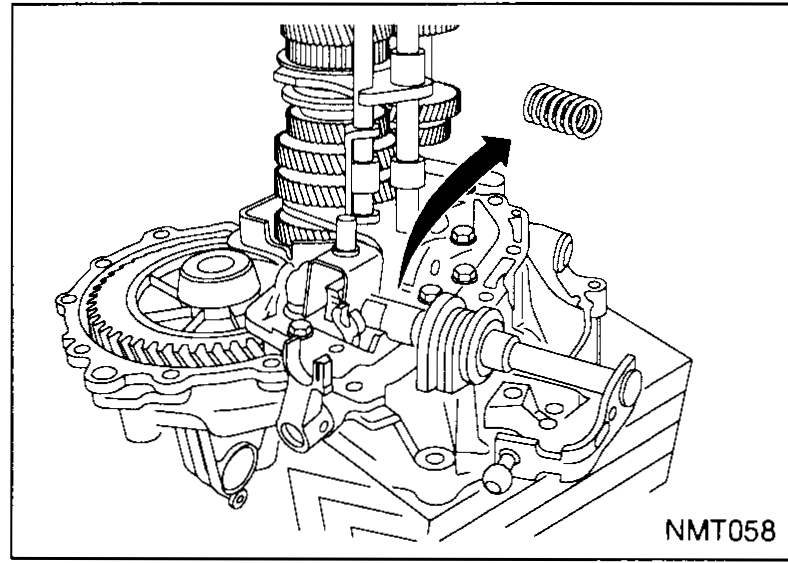

    Engagement shaft being lifted out of the transaxle, with a curved arrow indicating the upward removal direction. The compressed spring and seal sit above the gear stack.
    NMT058
  5. 16
    Remove the interlock key.

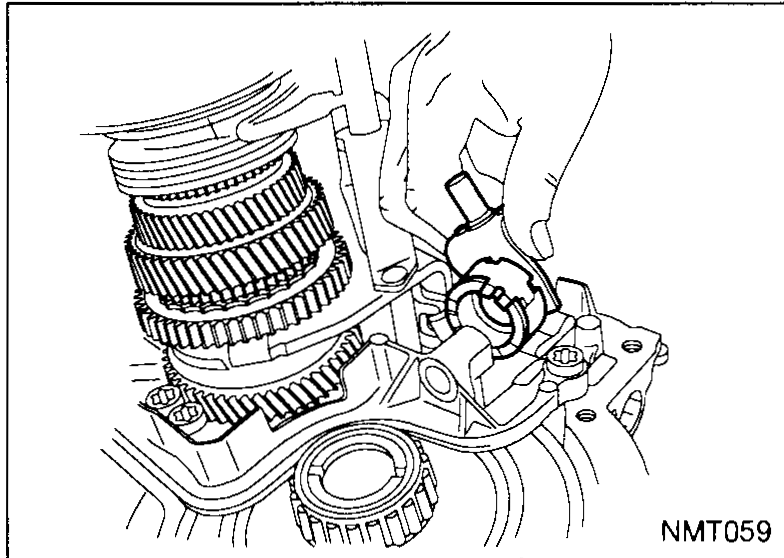

    A hand uses a tool to extract the interlock key from its bore between the shift forks. Surrounding gears and synchronizer hubs are visible.
    NMT059
  6. 17
    Remove the input shaft, mainshaft and shift fork assembly.
    Removal of the input shaft, mainshaft and shift-fork assembly as a single unit; the shaft tops protrude upward out of the transaxle case.
    NMT060
