REPAIR FOR COMPONENT PARTS — Mainshaft and Gears (Cont'd) (RS5F41A)
MT-22prose procedurePage applies to RS5F41A transaxle only.
Mainshaft and Gears (Cont'd)
NOTE
Transaxle model: RS5F41A.
Mainshaft assembly (continued)

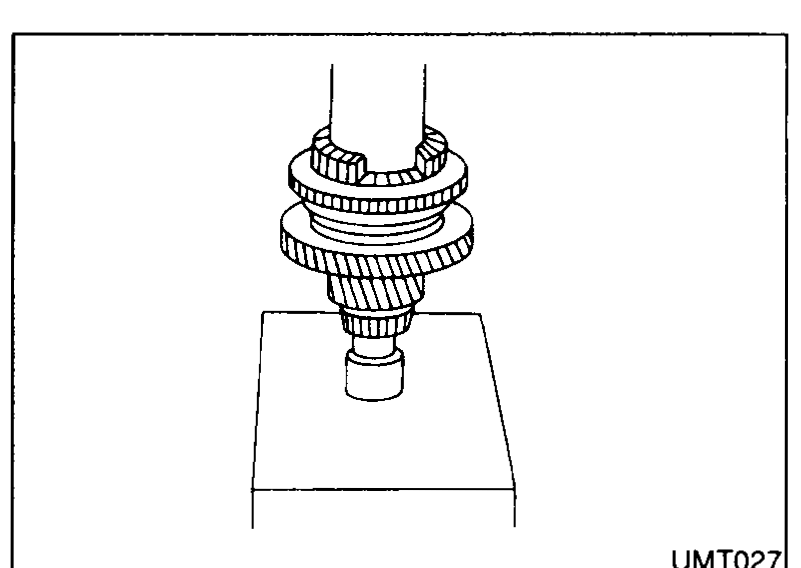

- 3Press 1st & 2nd synchronizer hub, paying attention to its direction.
UMT027 - 4Install snap ring of proper thickness that will minimize clearance of groove in mainshaft.Allowable clearance of groove: 0 - 0.15 mm (0 - 0.0059 in).

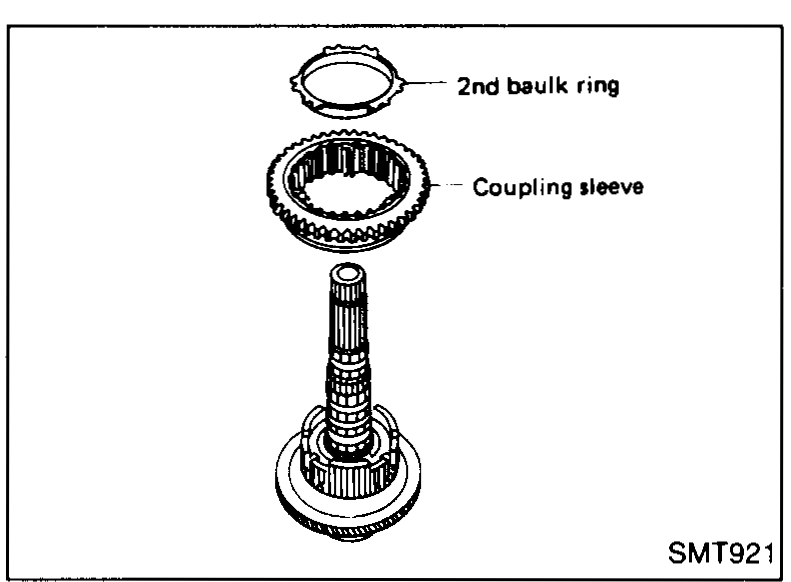

- 5Install coupling sleeve with three inserts and 2nd baulk ring.

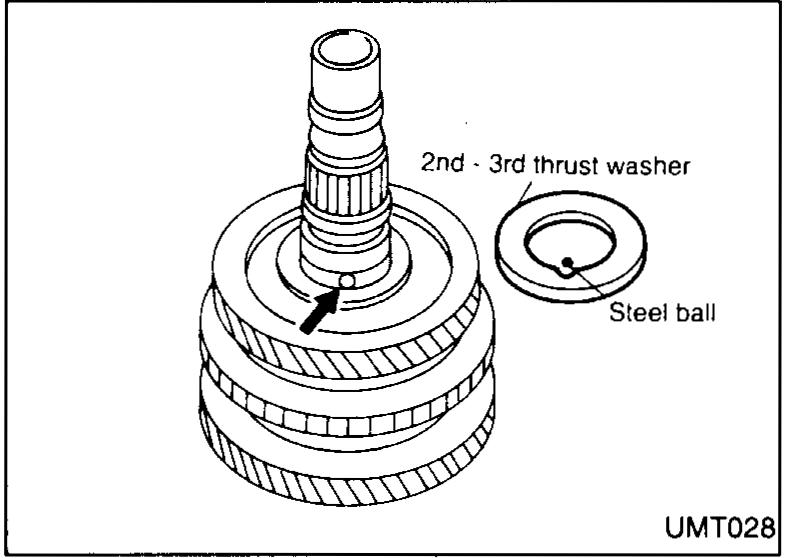

SMT921 - 6Apply gear oil to 2nd gear inner surface, then install 2nd gear and steel ball. Press 2nd-3rd thrust washer.

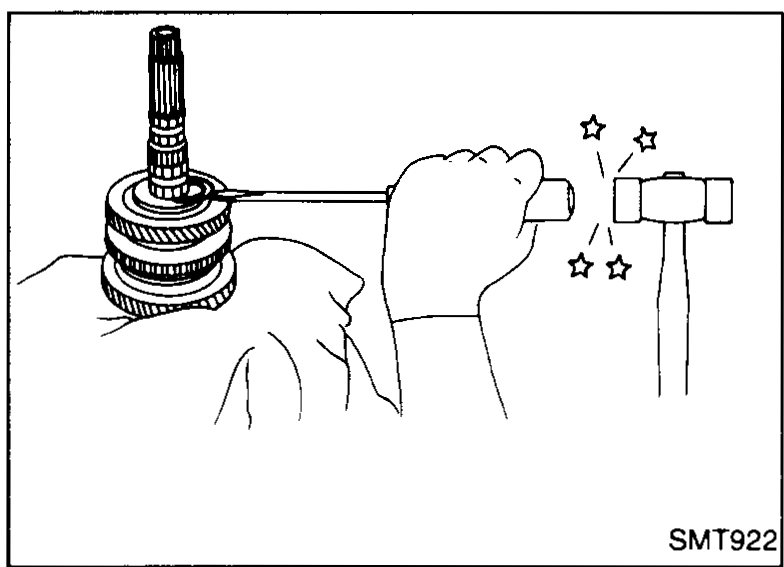

UMT028 - 7Install snap ring of proper thickness that will minimize clearance of groove in mainshaft.Allowable clearance of groove: 0 - 0.15 mm (0 - 0.0059 in).
SMT922
| Specification | Value |
|---|---|
| Allowable clearance of groove1st & 2nd synchronizer hub / 2nd gear snap ring | 0 - 0.15mm (0 - 0.0059 in) |
Allowable clearance of groove1st & 2nd synchronizer hub / 2nd gear snap ring
0 - 0.15mm (0 - 0.0059 in)
1st & 2nd synchronizer hub snap ring
32257-01B00
Thickness mm (in)2.0 (0.079)
32257-01B01
Thickness mm (in)2.1 (0.083)
2nd gear snap ring
32269-01B00
Thickness mm (in)2.0 (0.079)
32269-01B01
Thickness mm (in)2.1 (0.083)
