REPAIR FOR COMPONENT PARTS — Mainshaft and Gears (Cont'd) (RS5F41A)
MT-21prose procedurePage applies to RS5F41A transaxle only.
Mainshaft and Gears (Cont'd)
NOTE
Transaxle model: RS5F41A.
Baulk ring inspection (continued)

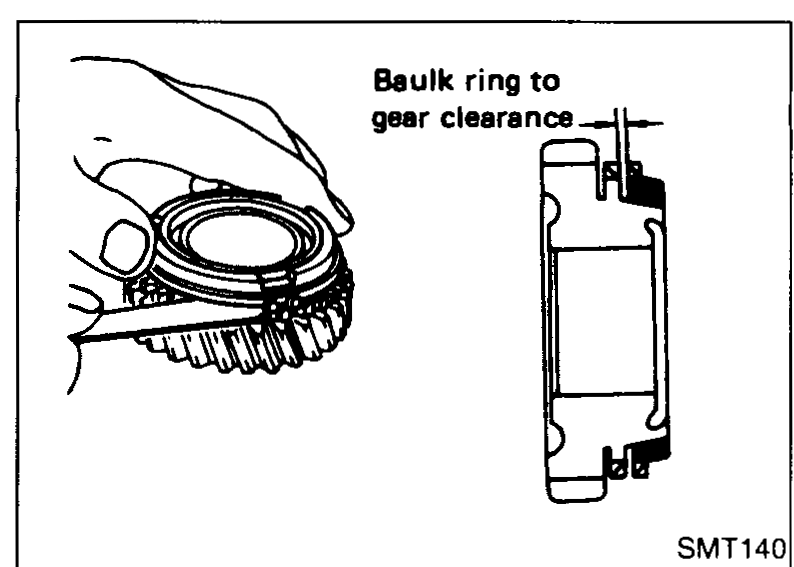

- 2Place baulk ring in position on gauge cone. While holding baulk ring against gear as far as it will go, measure gap between baulk ring and outer gear. If the clearance is smaller than the wear limit, discard baulk ring.Baulk ring to gear clearance — Standard: 0.95 - 1.35 mm (0.0374 - 0.0531 in).Wear limit: Less than 0.7 mm (0.028 in).
SMT140
| Specification | Value |
|---|---|
| Baulk ring to gear clearance — Standard | 0.95 - 1.35mm (0.0374 - 0.0531 in) |
| Baulk ring to gear clearance — Wear limit | Less than 0.7mm (0.028 in) |
Baulk ring to gear clearance — Standard
0.95 - 1.35mm (0.0374 - 0.0531 in)
Baulk ring to gear clearance — Wear limit
Less than 0.7mm (0.028 in)
Bearing
Bearing inspection
- 1Thoroughly clean bearing.

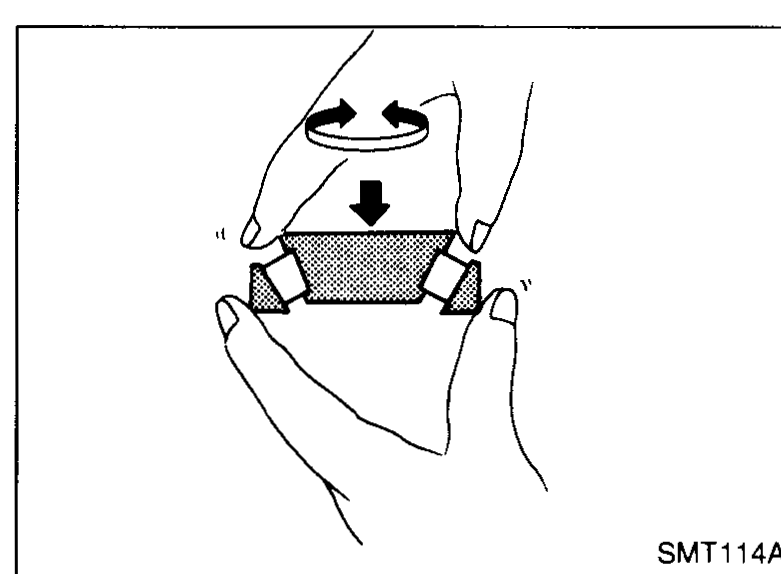

- 2Check bearings for wear, scratches, pitching or flaking. Check tapered roller bearing for a burned out portion as shown in the figure below. If damaged, replace outer and inner races as a set.
SMT114A
ASSEMBLY
Mainshaft assembly

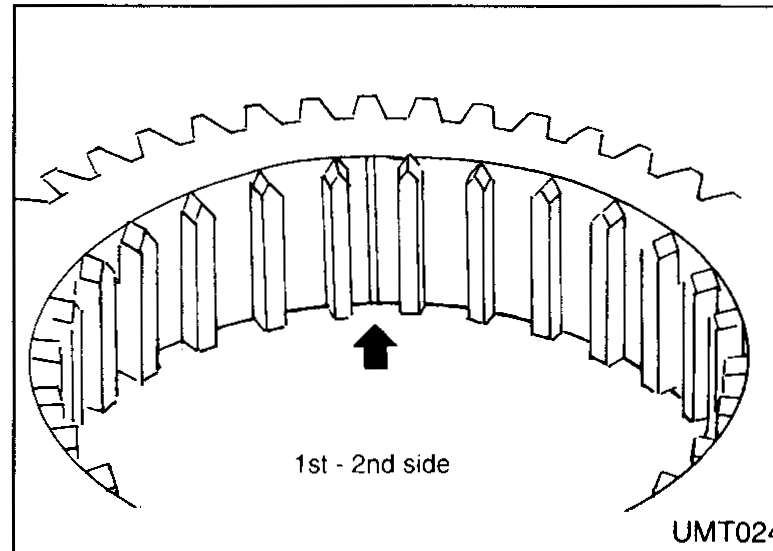

- 1Place inserts in the three grooves on the coupling sleeve (1st & 2nd synchronizer, 3rd & 4th synchronizer, 5th synchronizer).
UMT024 - 2Apply gear oil to 1st gear inner surface, then install 1st gear and 1st baulk ring.
UMT026
