DISASSEMBLY (RS5F41A)

MT-14prose procedure

Page applies to RS5F41A transaxle only.

Continued from MT-13

Transaxle disassembly (continued)

  1. 10

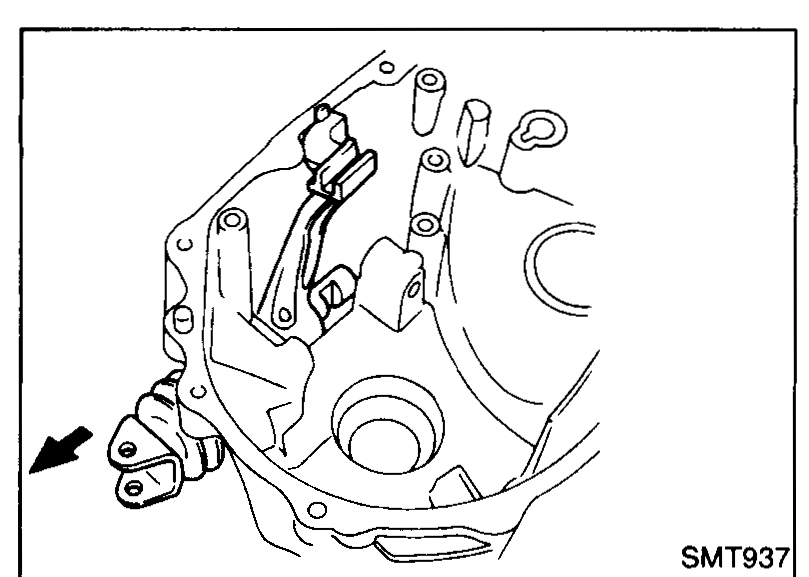

    Withdraw select lever and striking rod.
    Inside view of the clutch housing showing the select lever and striking rod being withdrawn; an arrow at the lower-left indicates the removal direction.
    SMT937
