ADJUSTMENT — Mainshaft & Differential Side Bearing Preload (Cont'd) (RS5F41A)

MT-29prose procedure

Page applies to RS5F41A transaxle only.

Continued from MT-28

Mainshaft & Differential Side Bearing Preload (Cont'd)

Preload procedure (continued)

  1. 7

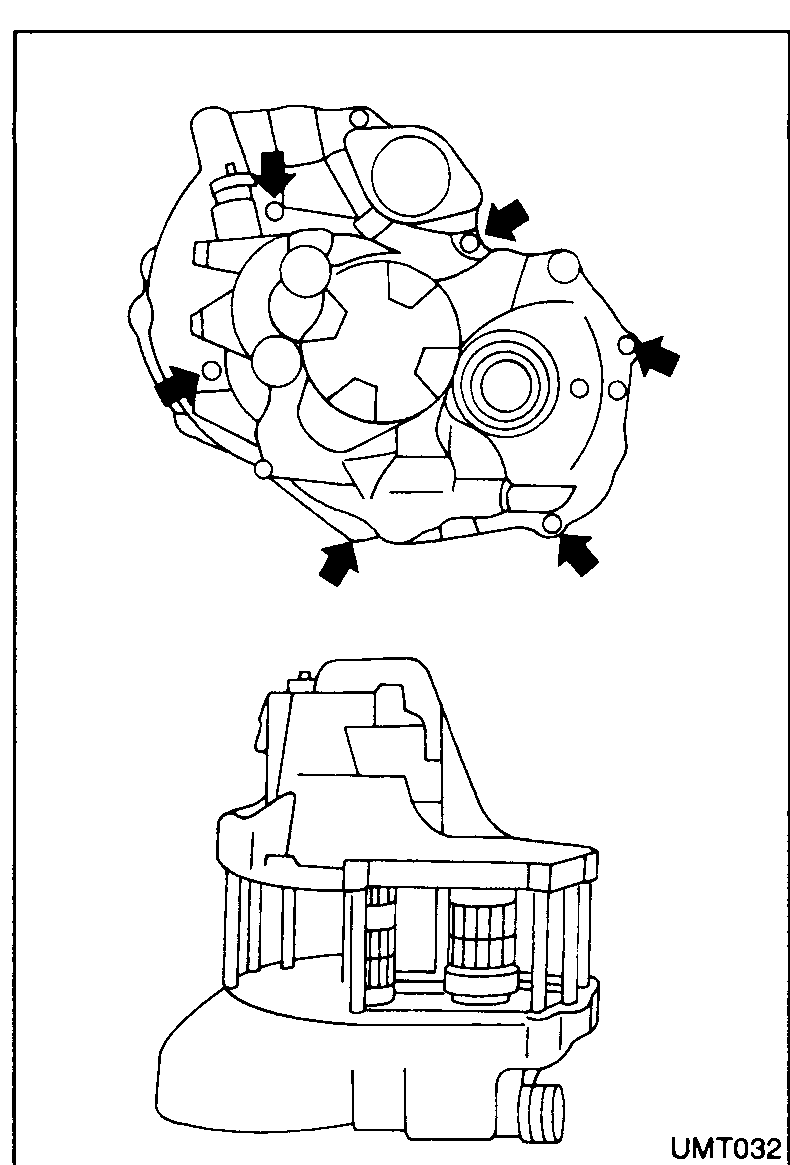

    Position transmission case above dowel pins and collars and set collars in positions shown in figure below.
    Top view of the transmission case mating surface with arrows pointing at the dowel-pin / collar positions where collars must be set, plus a side view of the case below.
    UMT032
  2. 8
    Using a feeler gauge measure clearances between mainshaft adjusters (A) and (B) and between differential side bearing adjusters (A) and (B).
    Mainshaft-side close-up: a hand uses a feeler gauge between mainshaft adjusters (A) and (B) to measure clearance.
    UMT033
