Nissan Micra K11 silhouetteK11

ASSEMBLY

MT-5030prose procedure

Page header tab 'MA5L' (5-speed manual transaxle variant). Page-code stamp 'MT-5030'.

Continued from MT-5029

Transaxle assembly (continued)

  1. 25

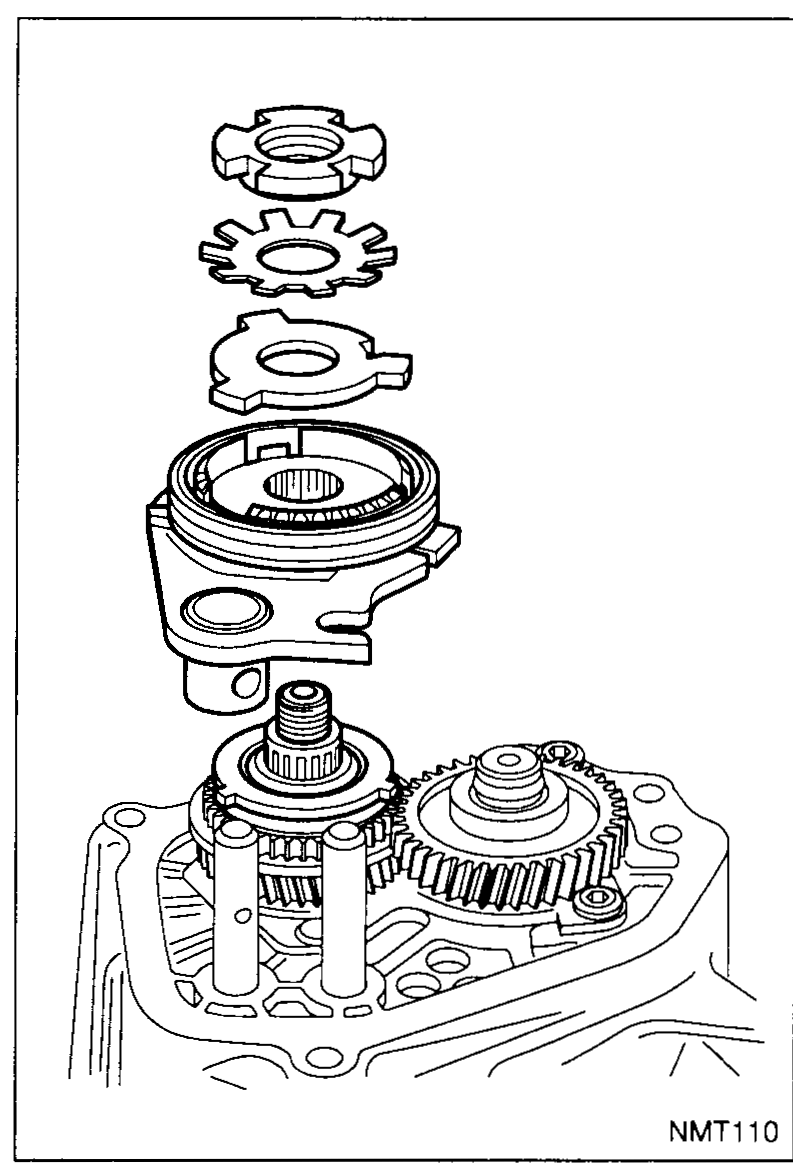

    Install the 5th shift fork with the 5th gear synchronizer. Position the lugs on the baulk ring so they are correctly fitted in the synchronizer.
    Top of the mainshaft protruding from the case. Stacked above it in an exploded layout: the 5th shift fork with its 5th-gear synchronizer hub/sleeve, a notched (castellated) nut, a new lock ring, and a thrust washer. The input-shaft 5th gear sits to the right.
    NMT110
  2. 26
    Install the thrust washer, a new lock ring and the notched nut.
  3. 27

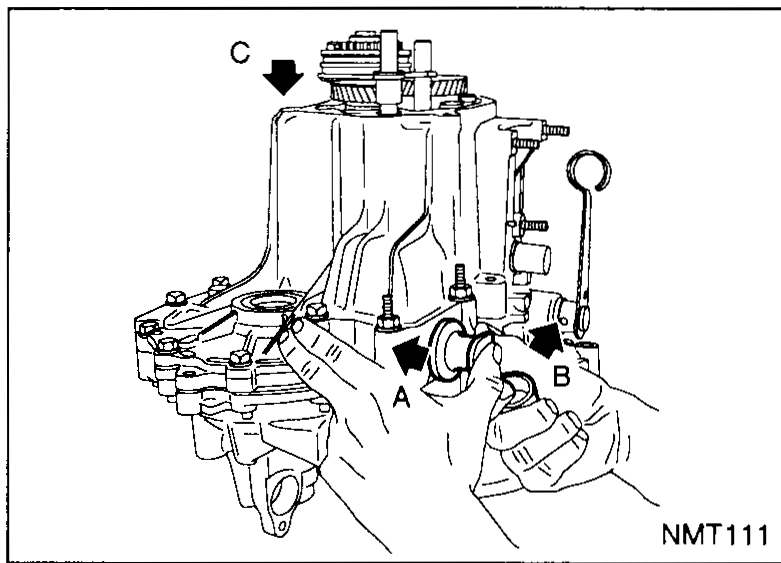

    Immobilise the mainshaft by engaging two gears: A — select; B — engage reverse gear; C — engage 5th gear by pressing 5th shift fork.
    Top of the case with a hand holding the gears. Three labelled callouts: 'A' — selector position to immobilise the mainshaft, 'B' — engages reverse gear, 'C' — engages 5th gear by pressing the 5th shift fork. Black arrows point at the three engagement points.
    NMT111
  4. 28
    Tighten the mainshaft nut to the specified torque.
    Torque wrench engaged on the mainshaft notched nut via socket / special tool KV32910060. The case is visible below. The tool label is called out by an arrow.
    NMT112
  5. 29
    Secure the nut with the lock ring.
  6. 30

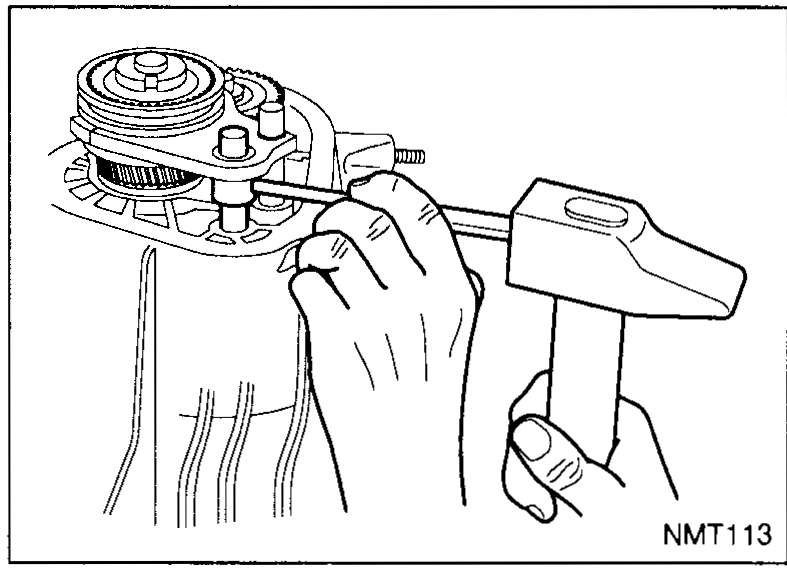

    Install a new retaining pin into the 5th shift fork.
    A hand holding a pin punch with a hammer striking it, driving a new retaining pin into the 5th shift fork through its cross-bore. The shift fork is on the mainshaft above the case.
    NMT113
