Nissan Micra K11 silhouetteK11

ASSEMBLY

MT-5031prose procedure

Page header tab 'MA5L' (5-speed manual transaxle variant). Page-code stamp 'MT-5031'.

Continued from MT-5030

Transaxle assembly (continued)

  1. 31
    Install the transaxle cover with a new seal.

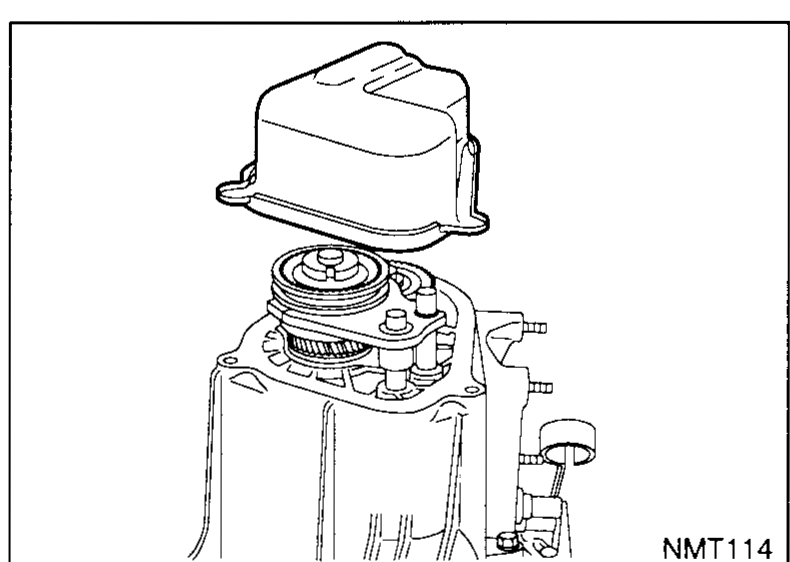

    Top of the transaxle with the 5th-gear cover being lowered into place over the 5th-gear stack. A new gasket / seal sits on the case flange under the cover. The shift-fork shaft protrudes to the right.
    NMT114
  2. 32
    Tighten the bolts to the specified torque.
