REPAIR FOR COMPONENT PARTS — Mainshaft and Gears (Cont'd)

MT-5022prose procedure

Page header tab 'MA5L' (5-speed manual transaxle variant). Page-code stamp 'MT-5022'.

Continued from MT-5021

Mainshaft and Gears (Cont'd)

Install the following parts

  1. 3
    the 1st gear (17)

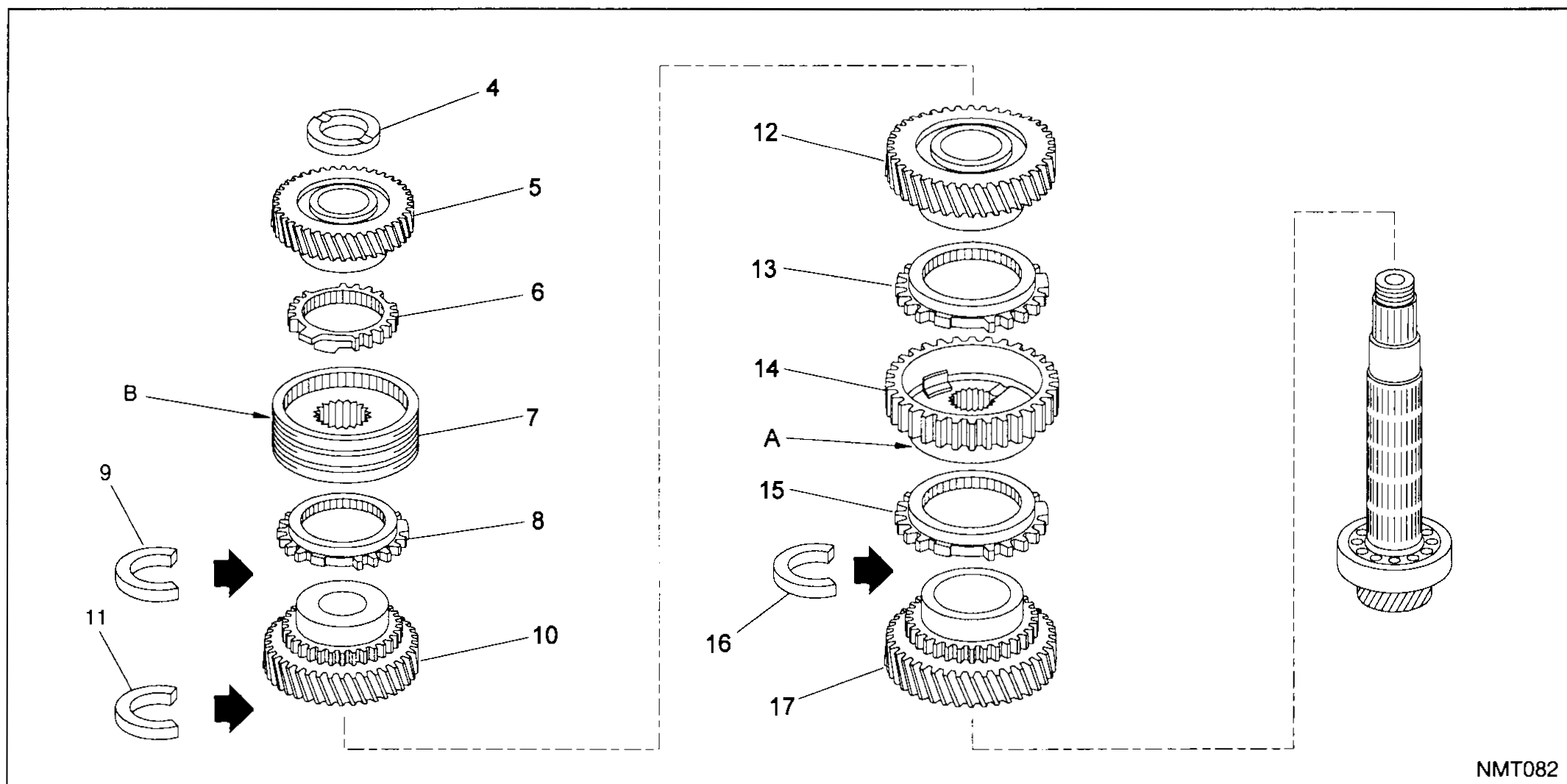

    Full-width exploded view of the mainshaft gear stack. Left column shows the lower stack with numbered callouts 4 (washer at top), 5 (gear), 6 (baulk ring), 7 (1st/2nd synchronizer assembly with fork groove labelled 'B'), 8 (baulk ring), 9 (snap ring), 10 (1st gear), 11 (snap ring). Right column shows the upper stack with callouts 12 (4th gear), 13 (baulk ring), 14 (3rd/4th synchronizer assembly with fork groove labelled 'A'), 15 (baulk ring), 16 (snap ring), 17 (3rd gear). Right side shows the bare mainshaft shown vertically with its splines and rear bearing seat.
    NMT082
  2. 4
    the new snap ring (16)
  3. 5
    the baulk ring (15)
  4. 6
    the 1st/2nd synchroniser assembly (14), fork groove (A) to the bottom
  5. 7
    the baulk ring (13) (2nd)
  6. 8
    the 2nd gear (12)
  7. 9
    the new snap ring (11)
  8. 10
    the 3rd gear (10)
  9. 11
    the new snap ring (9)
  10. 12
    the baulk ring (8) (3rd)
  11. 13
    the 3rd/4th synchroniser assembly (7), fork groove (B) to the top
  12. 14
    the baulk ring (6) (4th)
  13. 15
    the 4th gear (5)
  14. 16
    the washer (4)
  15. 17
    Install new mainshaft rear bearing, groove E must be positioned upwards.
    Vertical view of the mainshaft assembly with the new rear bearing being pressed on using tool KV32910011. Letter 'E' labels a groove that must be positioned upward; an arrow on the left points to that groove.
    NMT083
