Differential Side Bearing Preload (Cont'd)
Differential side bearing preload (continued)

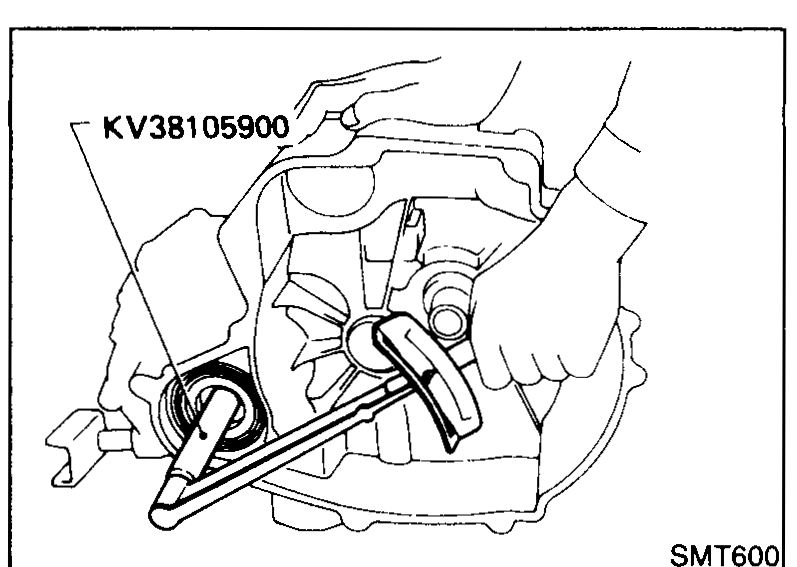

- cMeasure turning torque of final drive assembly.When old bearing is used again, turning torque will be slightly less than the above.Make sure torque in close to the specified range.Changes in turning torque of final drive assembly per revolution should be within 1.0 N·m (10 kg-cm, 8.7 in-lb) without binding.Turning torque of final drive assembly (New bearing): 2.0 - 7.8 N·m (20 - 80 kg-cm, 17 - 69 in-lb)
SMT600
| Specification | Value |
|---|---|
| Turning torque of final drive assembly (new bearing) | ≈20 - 76N·m |
| Change in turning torque per revolution (limit)without binding | ≈9.8N·m |
Turning torque of final drive assembly (new bearing)
20 - 76N·m
Change in turning torque per revolution (limit)without binding
9.8N·m
Mainshaft Bearing Preload
NOTE
If any of the following parts are replaced, adjust mainshaft bearing preload.
NOTE
Mainshaft; Mainshaft bearings; Clutch housing; Transmission case.
Mainshaft bearing preload adjustment
- 1Remove case cover, O-ring, spacer, mainshaft bearing adjusting shim and mainshaft rear bearing outer race from transmission case.
SMT613A - 2Install mainshaft assembly on clutch housing.
- 3Install transmission case on clutch housing.Tighten transmission case fixing bolts to the specified torque.

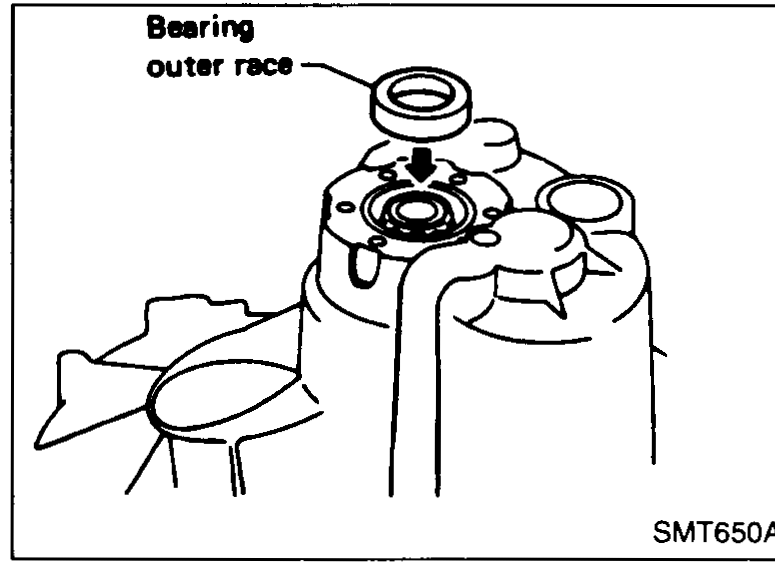

- 4Reinstall mainshaft rear bearing outer race on inner race.
SMT650A - 5Measure distance from transmission case to bearing outer race.Make sure that bearing is properly seated.

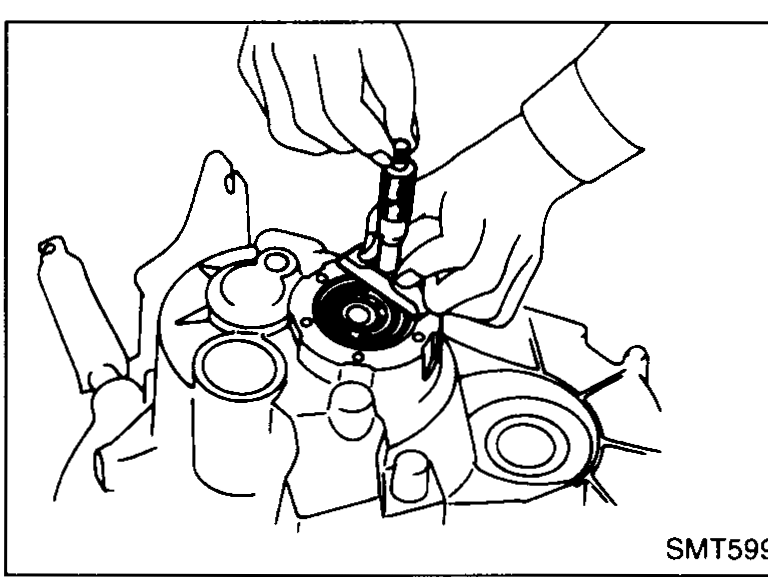

SMT599 - 6Select shim with S.D.S. table as a guide.
- 7Check total turning torque after assembling — Refer to "ASSEMBLY".
